6. ALTERNATOR
6-2
Maintenance Information
Precautions in Operation
y The maintenance service of A.C. alternator can be carried out directly on the scooter.
y Please refer to Chapter 15 for the relative alternator inspection.
Torque value:
Flywheel 3.8kgf-m
Tool
General tool
Rotor puller
Universal holder

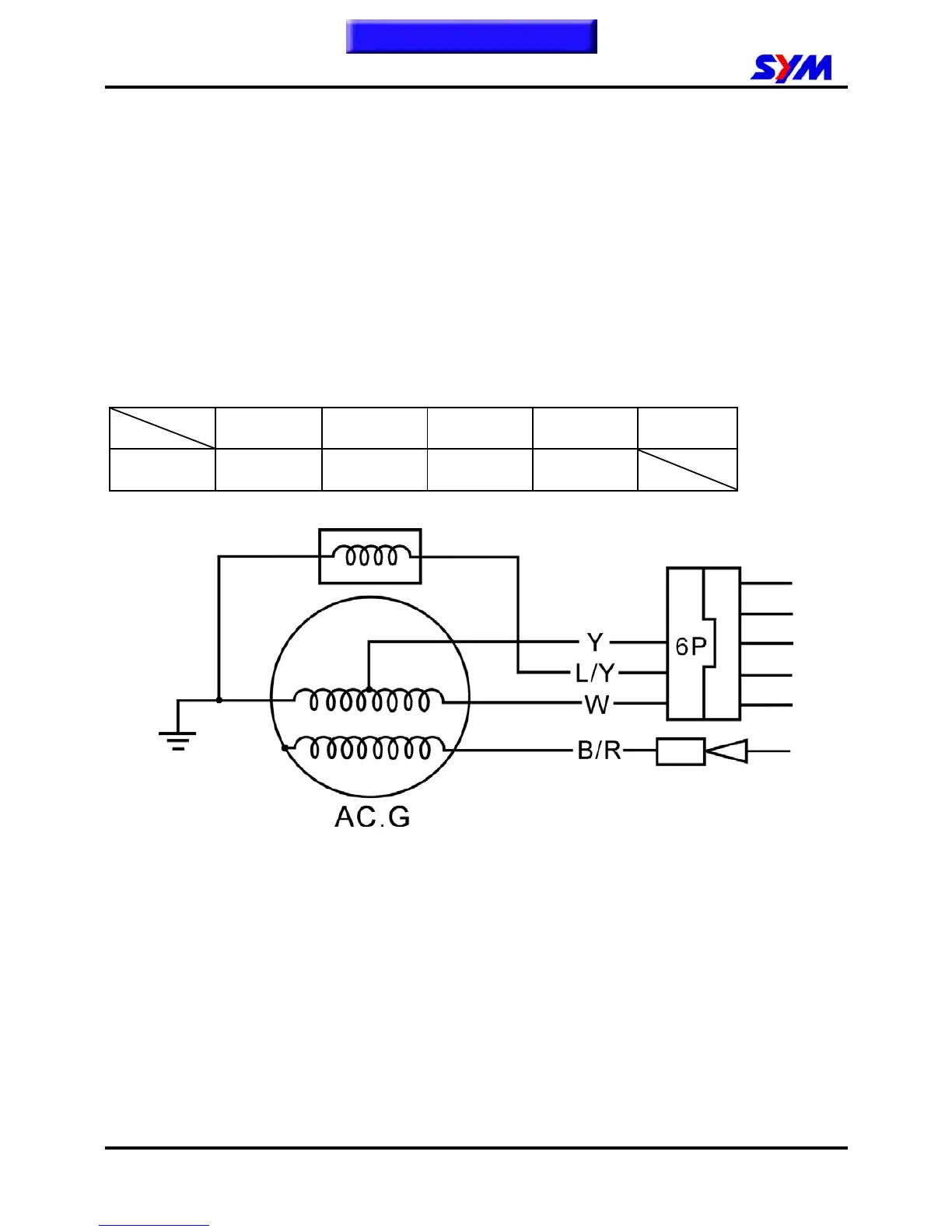

Coil resistance value for the A.C. alternator
Y/L Y W R/B Earth
Earth 50~200Ω 0.2~0.8Ω 0.2~1.0Ω 400~800Ω
