Synology RT1900ac User Manual

11
Chapter 2: Set up Your Synology Router
Set up Synology Router Manager (SRM)
1
Use a computer or wireless device connected to the Synology Router's local network. If you use a wireless
device, scan and join the Wi-Fi network (SSID:
SynologyRouter
; Password:
synology
).
2
Open a web browser, and enter either URL into the address bar:
a http://router.synology.com
b http://192.168.1.1:8000
3

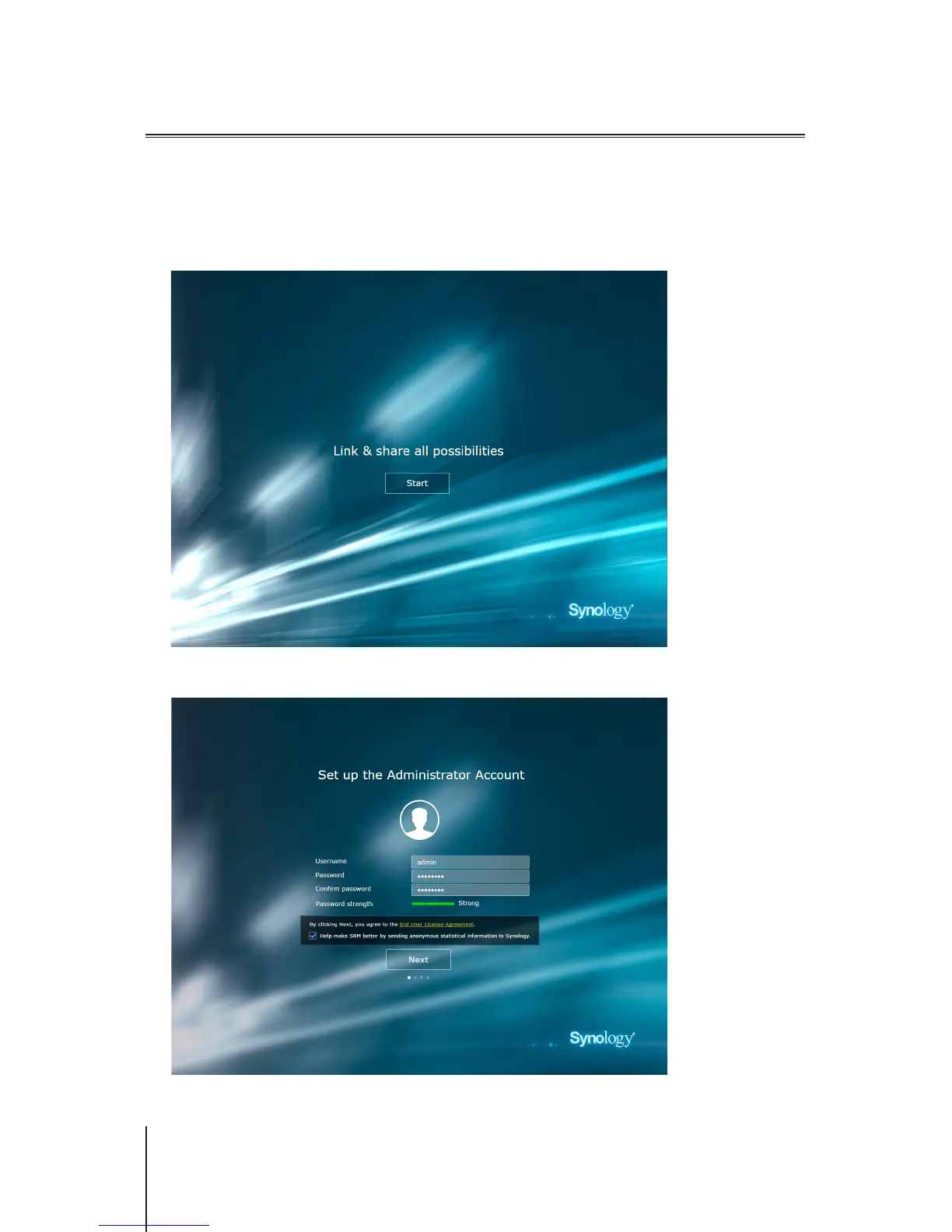

Once connected, click
Start
to launch the SRM Setup Wizard.
4
Fill in the information to set up the administrator account. Click
Next
to continue.

Synology RT1900ac Specifications

General

VPN support	PPTP, OpenVPN, L2TP/IPSec
Ethernet LAN	No
Port forwarding	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
VPN tunnels quantity	5
High power	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1300 Mbit/s
Compatible memory cards	SDHC, SDXC
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Antennas quantity	3
Antenna gain level (max)	4.6 dBi
USB version	3.2 Gen 1 (3.1 Gen 1)
Frequency band	2.4 & 5 GHz
Frequency range	2.4 - 5 GHz
WLAN data transfer rates supported	600, 1300 Mbit/s
Product color	Black
Internal memory	256 MB
Processor cores	2
Processor frequency	1000 MHz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Security algorithms	SNMP, SSH, WEP, WPA, WPA2
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	10.82 W
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	206 mm
Width	66 mm
Height	160 mm
Weight	510 g
