getting started
16
Synrad Firestar ti-Series operator’s manual
Caution
possible
equipment
damage
SYNRAD does not recommend mounting lasers in a vertical “head-
down” or “tail-down” orientation. If you must mount your laser in
this manner, please contact the factory for limitations as a vertical
orientation increases the risk of damage to the laser’s output optic.
Mounting
The Mounting section includes subsections:
■ Fasten from above
■ Fasten from below
Firestar’s base plate is designed so that the laser is easily mounted to either vertical or horizontal surfaces
using only three fasteners. Three ball bearing “feet” pressed into Firestar’s base plate eliminate any possible
distortion of the laser tube caused by variations in the flatness of the surface on which the laser is mount-
ed. Refer to the Firestar ti-Series package outline drawings in the Technical Reference chapter for laser
mounting locations and dimensions. Read through the mounting sections below to determine which set of
mounting holes are required for your application. When mounting Firestar ti-Series lasers, you can choose
to fasten from above, into your mounting surface, or from below, into the laser’s base plate.
Note: For proper airflow, air- or fan-cooled units must have at least 2.25" (57.2 mm) of unobstructed
clearance between the outside edge of the cooling fan and any enclosure or mounting surface.
Fasten from above
To fasten your Firestar ti-Series laser to a mounting surface from above, perform the following steps:
1
Refer to the appropriate outline and mounting drawing for dimensions and then drill and tap three
1/4–20 UNC holes into your mounting surface. These hole locations should correspond to the two
slots labeled “A” and the thru hole labeled “B” shown in Figure 1-2.

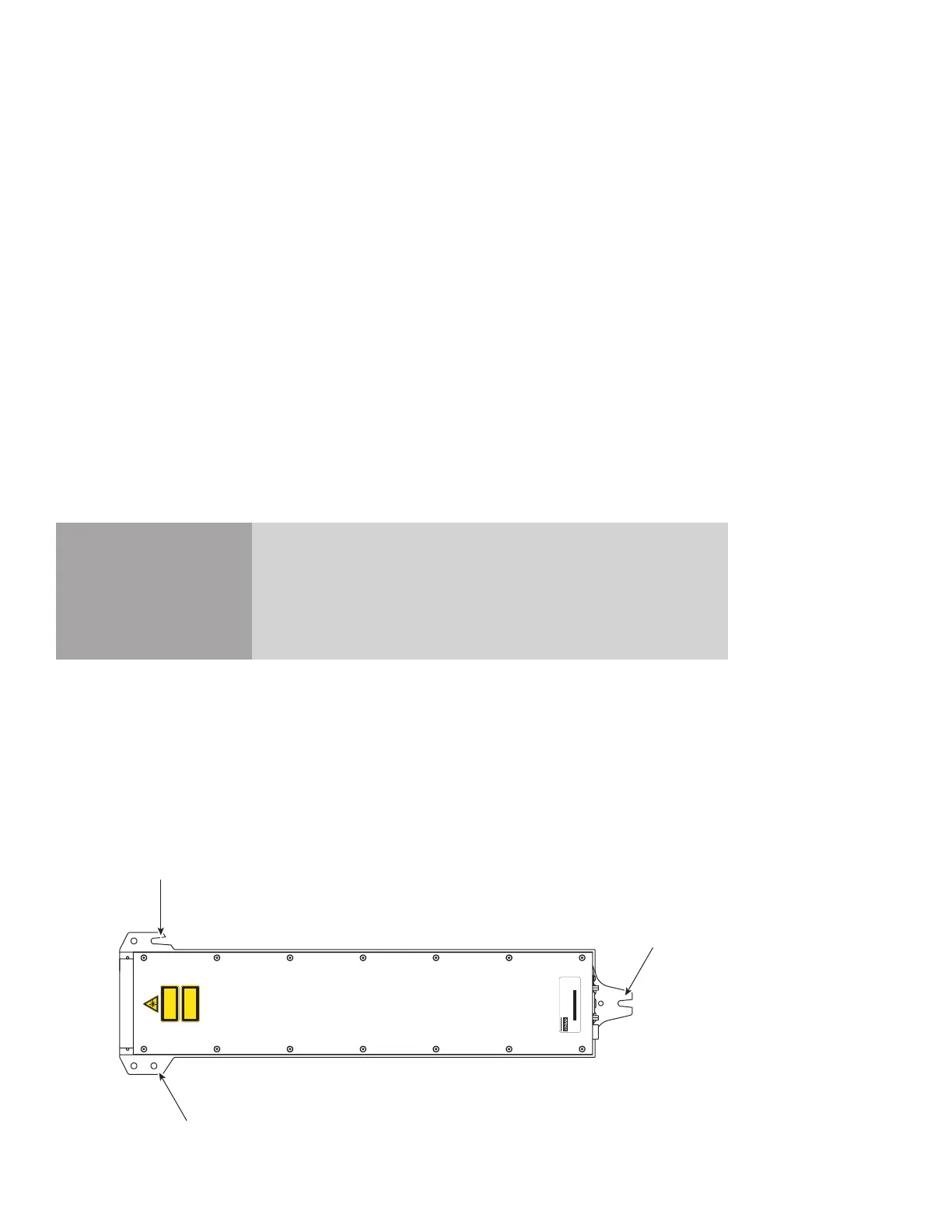

Figure 1-2 Fasten from above
INVISIBLE LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SCATTERED RADIATION
CLASS 4 LASER PRODUCT
EN-60825-1, 2007
400 WATTS MAX
10200-10800 nm
MODEL #: FSTI60SAB
SERIAL #: TI60234080181
TESTED AT: 48V MFG: January 21, 2009
This laser component does not comply with standards for complete
laser products as specified by 21 CFR 1040.10 or IEC 60825-1.
SYNRAD, Inc. 4600 Campus Place, Mukilteo WA 98275 425.349.3500
A
A
B
Top View
(ti60 Air-Cooled Model)
