334 Synrad Firestar ti-Series operator’s manual
Firestar ti-Series package outline
drawings

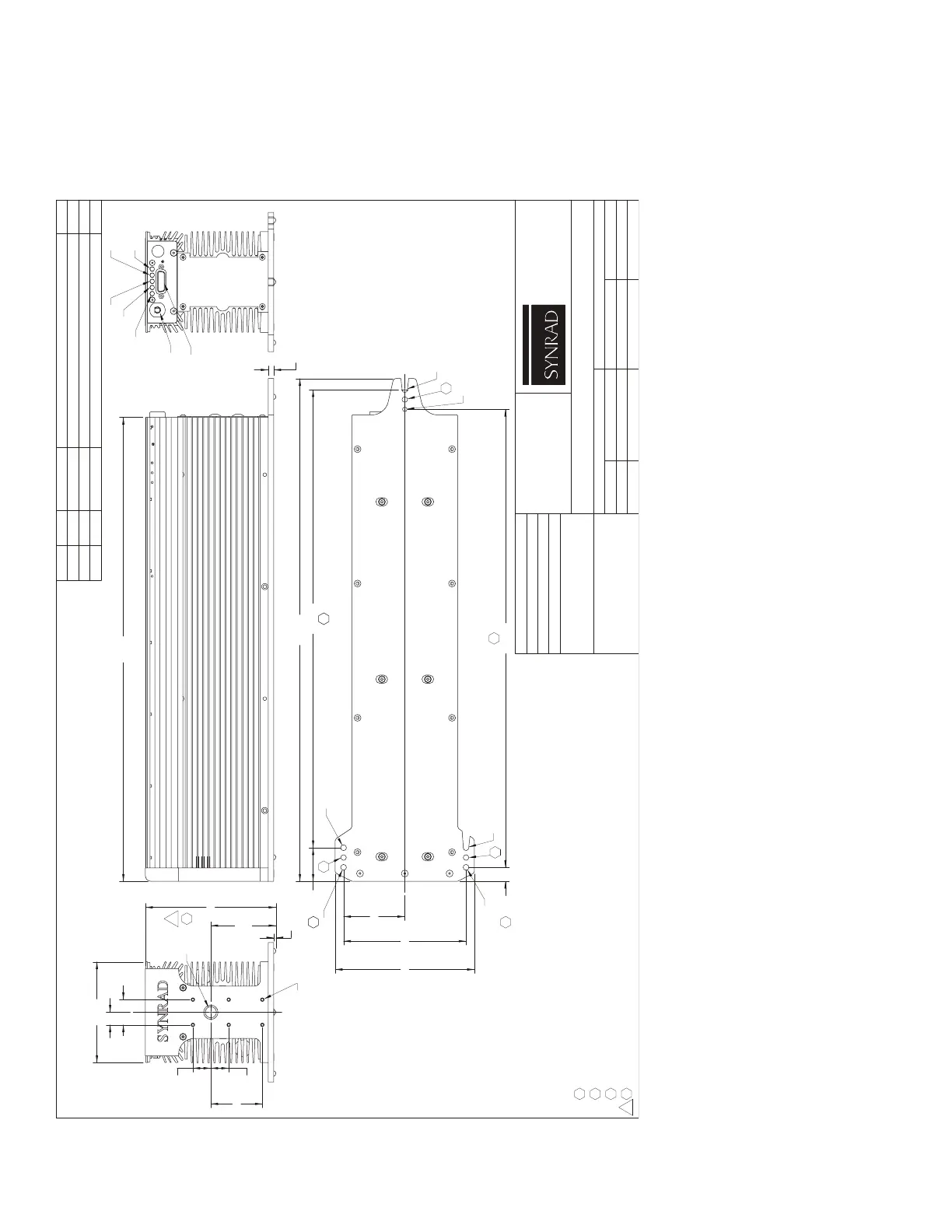

Figure 3-24 OEM air-cooled Firestar ti60 (SA model) package outline and mounting
dimensions, sheet 1 of 2
NOTES:
THIS MOUNTING HOLE PATTERN USED WHEN TOP ACCESS FASTENING DESIRED.
THIS MOUNTING HOLE PATTERN USED WHEN BOTTOM ACCESS FASTENING DESIRED.
HARDENED BALL MOUNTING POINT , 3X (Ø.250 STEEL BALL).
BEAM PAT H MAY NOT BE CENTERED OR PERPENDICULAR TO FA CEPLAT E APERTURE.
1
2
3
4
B
DESCRIPTION:
FINISH:
MATERIAL:
REVECO DATE
DESCRIPTIONDB
TOLERANCES UNLESS NOTED:
.
°
ANGLE = ±
.
.x = ±
.
.xx = ±
.
.xxx = ±
.
PROPRIETARY
THIS DRAWING IS PROPRIETARY TO
SYNRAD INC. AND SHALL NOT BE
USED OR DISCLOSED IN WHOLE
OR IN P A RT WITHOUT WRITTEN
PERMISSION OF SYNRAD INC.
PA RT NUMBER:
DWG/FILE NUMBER:
SHEET
ENG:
DRAWN BY:
DATE:
UNITS:
CATEGORY:
CHECKED BY:
DATE:
SIZE: B
FINISH CLASS:
APPROVED BY:
DATE:
SYNRAD INC.
4600 Campus Place
Mukilteo, WA 98275 Phone: (425)349-3500 Fax: (425)349-3667
OUTLINE & MOUNTING, AIR-COOLED, Ti60, OEM
26-Aug-08
300-19847-01
1
.
.
.
300-19847-01
of
2
D. DUVALL
Inches
.
DMDRELEASE TO PRODUCTION
14-May-09
4045
A
ADD NOTE 4
B
DMD
9-Sep-09
4107
.
.
.
.
.
20.72
.25
DC POWER
CONROL I/O
INTERLOCK
(GRN/RED)
TEMP (GRN/RED)
READY (YEL) SHUTTER
(BLUE)
LASE (RED)
2.735
5.47
6.22
1/4-20 UNC
1/4-20 UNC
Ø.26
Ø.250
1/4-20 UNC
Ø.25
.625
20.455
1.500
20.455
22.455
3
3
3 1
1
2
2
.094
2.905
±
.010
5.83
4.500
1.125
.562
.800 .800
2.300
Ø.500
BEAM
EXIT
6X 8-32 UNC ACCESSORY
MOUNTING HOLES. SCREWS
SHOULD NOT EXTEND MORE
THAN .19 INTO FA CE PLAT E
4
B
