319Synrad Firestar ti-Series operator’s manual
User I/O connections
Sample I/O circuits
Sample inputs

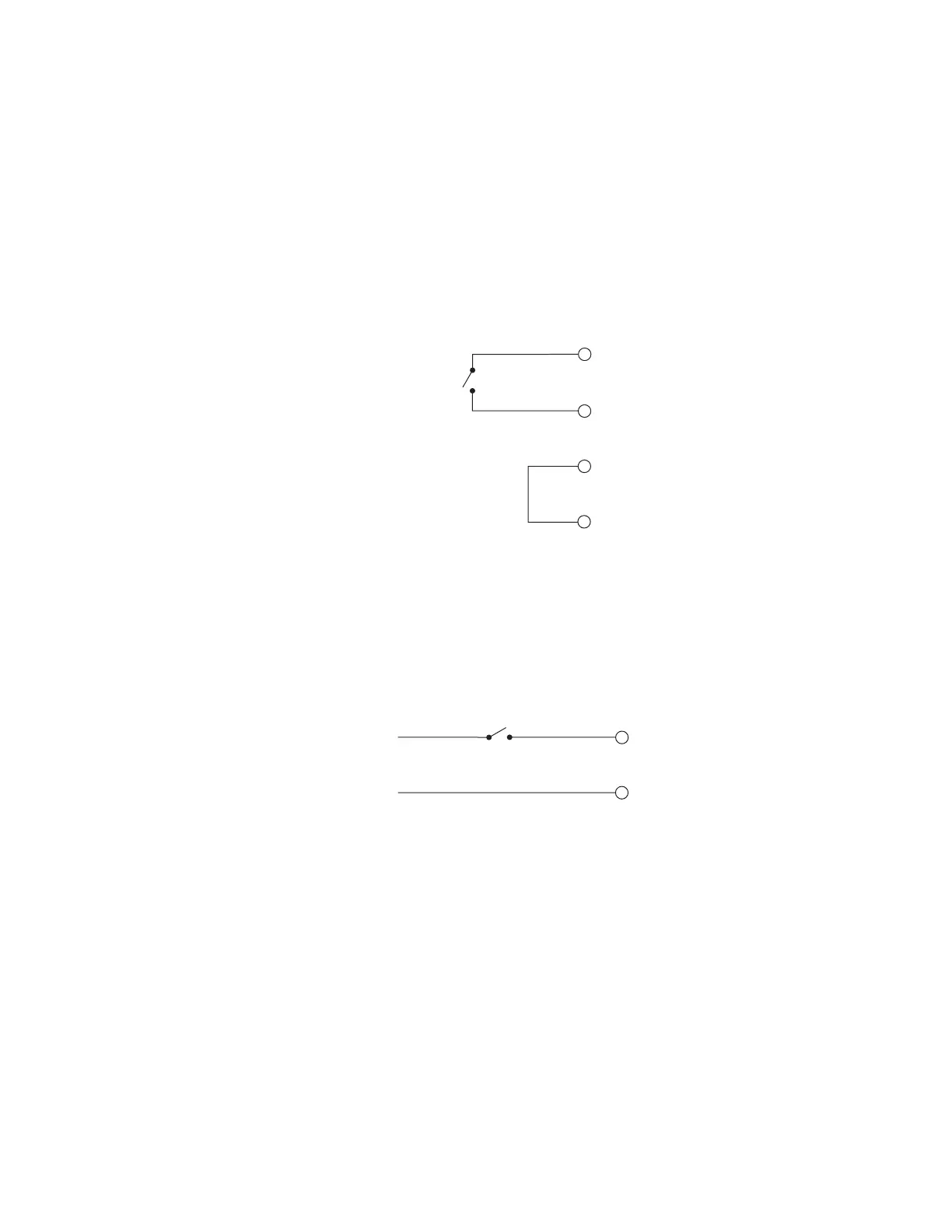

Figure 3-11 illustrates one method of supplying a Remote Interlock signal using a customer-supplied limit
switch. Firestar’s +24 VDC Auxiliary Power output powers the circuit. Note that Pin 4, +5 VDC Auxiliary
Power, could have been used to power the circuit instead, depending on circuit voltage requirements.
Figure 3-11 Customer-supplied interlock
Figure 3-12 shows another variation for supplying a Remote Interlock signal to the laser. In this case, the
customer is using a switch and supplying a negative voltage to drive Firestar’s input circuit.
Figure 3-12 Customer-supplied interlock, negative voltage
(12) AUX. DC POWER
GROUND
Close switch to
enable interlock
USER I/O PINS
(5) +24 VDC AUXILIARY
POWER
(3) REMOTE INTERLOCK
(11) INPUT COMMON
Close switch to
enable interlock
USER I/O PINS
(3) REMOTE INTERLOCK
(11) INPUT COMMON
–12 VDC
0 VDC
