maintenance/
troubleshooting
48
Synrad Firestar ti-Series operator’s manual
Troubleshooting
Functional block diagram

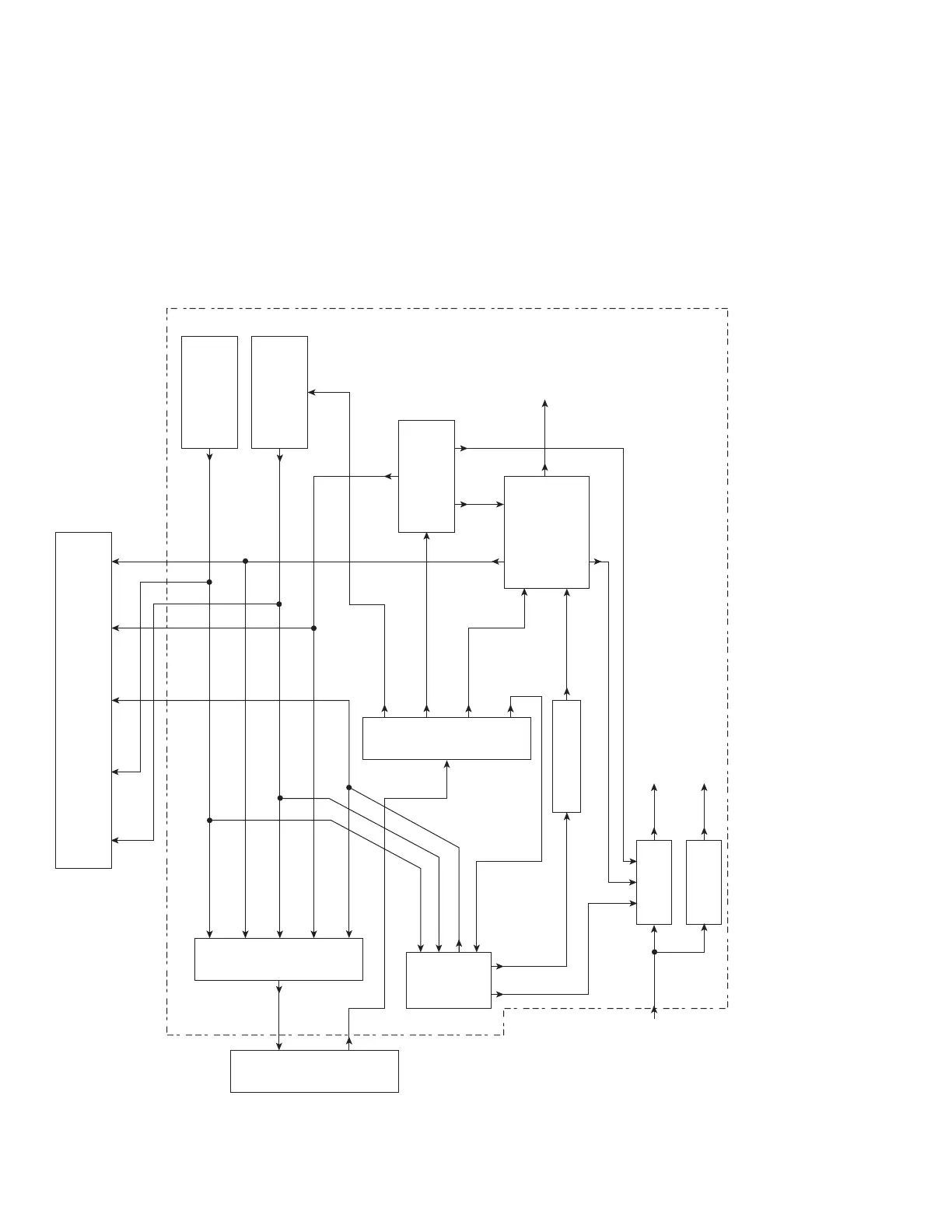

Figure 4-2 is a functional block diagram illustrating ti-Series control architecture.
Figure 4-2 Firestar ti-Series functional block diagram
OVER
TEMPERATURE
DETECTOR
REMOTE
INTERLOCK
DETECTOR
STATUS INDICATORS
REMOTE
INTERLOCK
TEMP
READY
SHUTTER
LASE
SHUTTER
CONTROL
CATGEN
DELAY TIMER
48 VDC
INPUT
DB15 USER I/O
CONNECTOR
POWER
ON AND
FAULT
DETECT
OUTPUT
ISOLATION
INPUT
ISOLATION
TO RF DRIVER BOARD
TO CONTROL BOARD
PWM OUT
OVER TEMPERATURE
LASER ACTIVE
LASE
INDICATOR
INTERLOCK OPEN
REMOTE INTERLOCK
SHUTTER OPEN REQUEST
SHUTTER OPEN
VOLTAGE
REGULATOR
DC POWER
SWITCH
FAULT
PWM INPUT
REMOTE RESET/START REQUEST
READY
LASER READY
