318 Synrad Firestar ti-Series operator’s manual
User I/O connections
Figure 3-10 illustrates the output circuit’s equivalent internal schematic and Table 3-5 provides Firestar
ti-Series output circuit specifications.

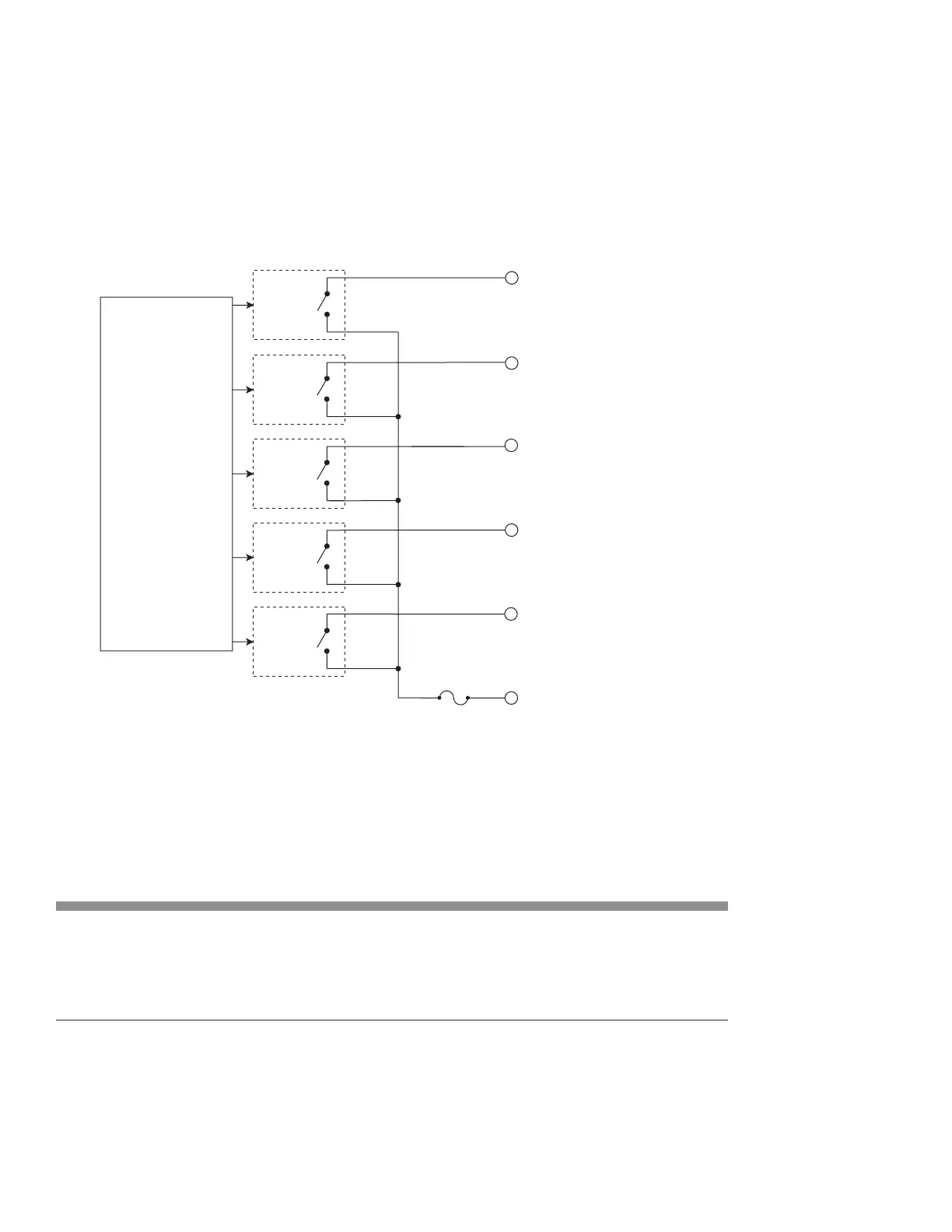

Figure 3-10 Output equivalent schematic
Table 3-5 Output circuit specifications
Output Device Specifications
Bi-directional MOSFET 20 Ohm Rdson
10 MOhms Off
Voltage ±24 VDC, max.
Current 50 mA, max.
FIRESTAR ti-SERIES
OUTPUT CIRCUITRY
U
SER I/O OUTPUT SIGNAL PINS
SOLID
STATE
RELAY
SOLID
STATE
RELAY
SOLID
STATE
RELAY
SOLID
STATE
RELAY
SOLID
STATE
RELAY
0.3 A FUSE,
SELF-RESETTING
(6) LASER ACTIVE
(7) OVER TEMPERATURE
(8) LASER READY
(14) SHUTTER OPEN
(15) INTERLOCK OPEN
(13) OUTPUT COMMON
