12.5InstallationECblue

12.5.1Connection



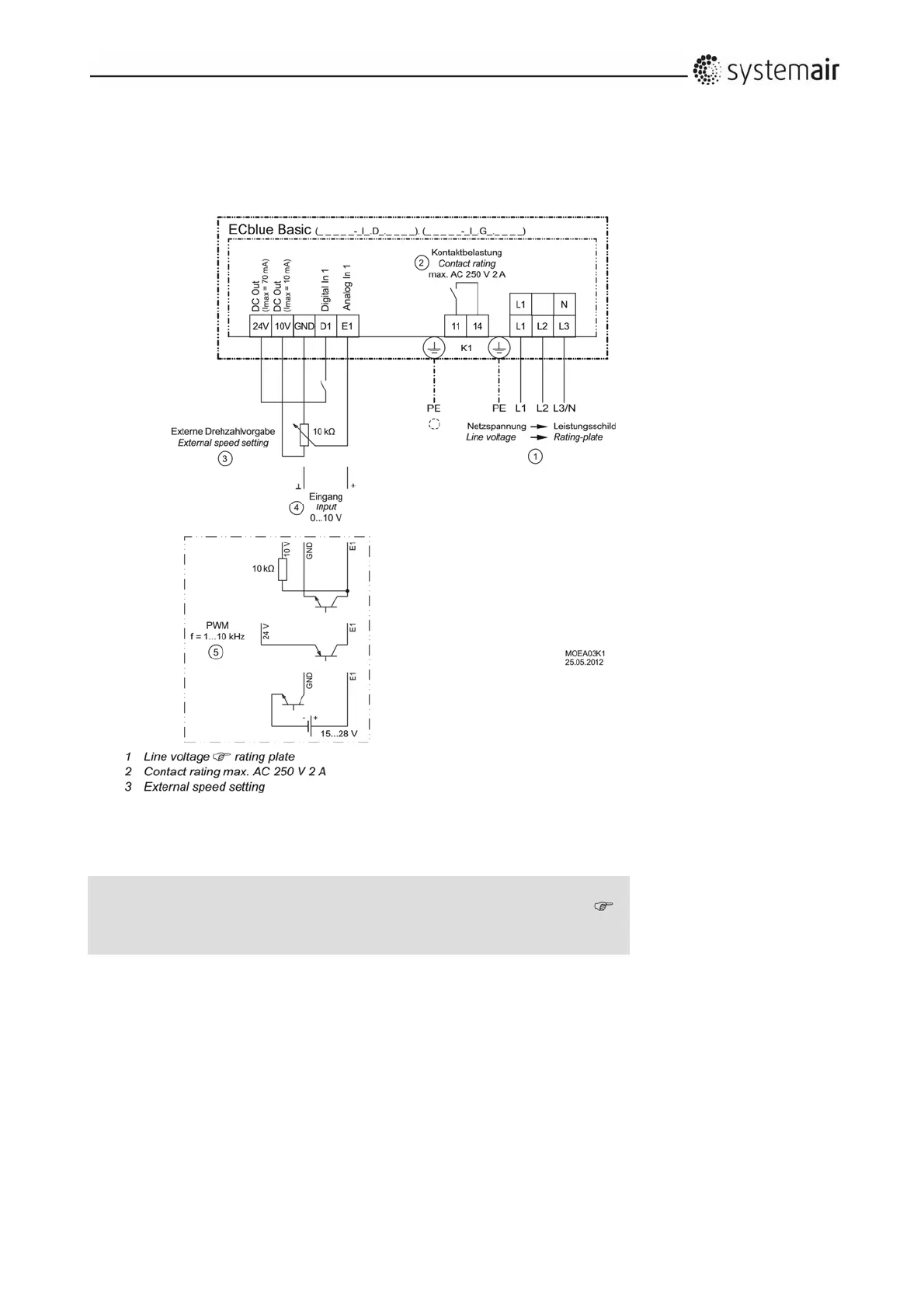

4 Input 0...10 V



5 PWM input, f = 1...10 kHz





For ECblue 3 ~ types and when connecting 1 ~ types between two outer conductors,

only all-current sensitive fault current circuit breakers (type B) are allowed (

EN 50 178, Art. 5.2).


