8.1.5Foambandsbetweenrailsandroofplates–mountroofplates.

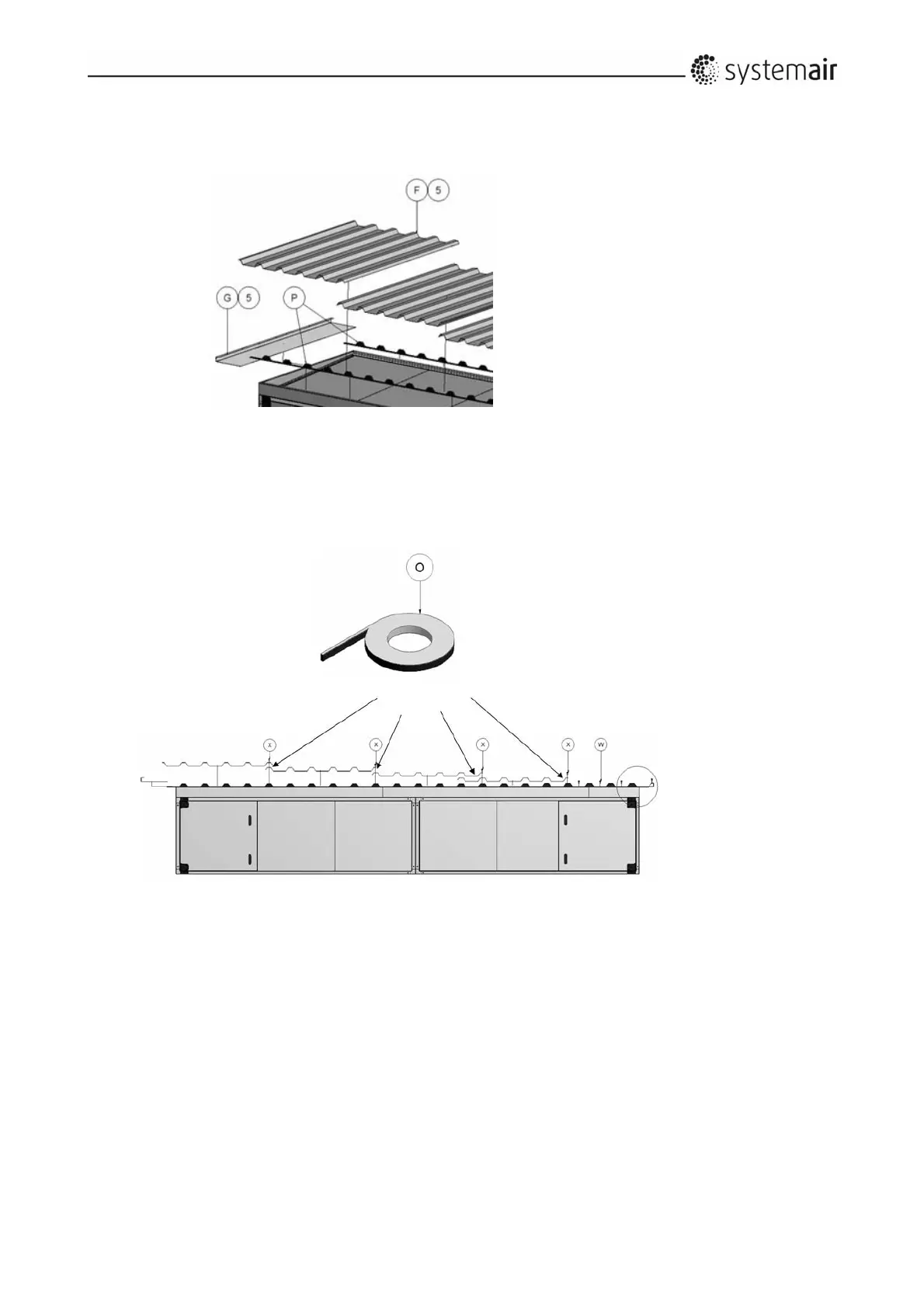

PlacefoambandsPbetweenprofilesA1,B2,C3,D4androofplates.

 

Thetrapezoidalroofplatesaremountedwiththeself‐drilling,paintedscrewssuppliedwithsealingwasher.

8.1.6Foambandsbetweenroofplates

Mounttheself‐

adhesivefoamband–O‐ontheunderlappingribforwaterresistantandeffectivesealing

duetothesmallslopeoftheroof.

 

8.1.7Mountroofplates–someofthemareoverlappingby2ribs

Thewidthofeachplateisalways1025mmandsomeoftheplates

havetooverlapby2ribstoachievethe

optimaltotallengthofthewholeroof—seetheillustrationabove.

8.1.8Mountoverhangprofile–G5ontheotherendoftheunit.

Whenthelasttrapezoidalplate(inthisexampleF5)hasbeenplacedontheunit,the

secondroofoverhang

profileG5mustbepushedunderthetrapezoidalroofplateandmountedwiththeself‐drilling,painted

screwwithsealingwasher.Mountingmustbesimilartothemountingofroofoverhangprofileunderthe

trapezoidalroofplateattheotherendoftheunit.


