General descriptions, dangers and warnings |
3
D General descriptions, dangers and warnings
Geniox air handling units are order specific machines available in thousands of different configurations. Only a few ex-
amples of machine configurations are described below. The air handling units are intended for the transport and treat-
ment of air between -40 °C and + 40 °C.
The units are exclusively for comfort ventilation.
Maintenance of the units must be carried out by skilled technicians.

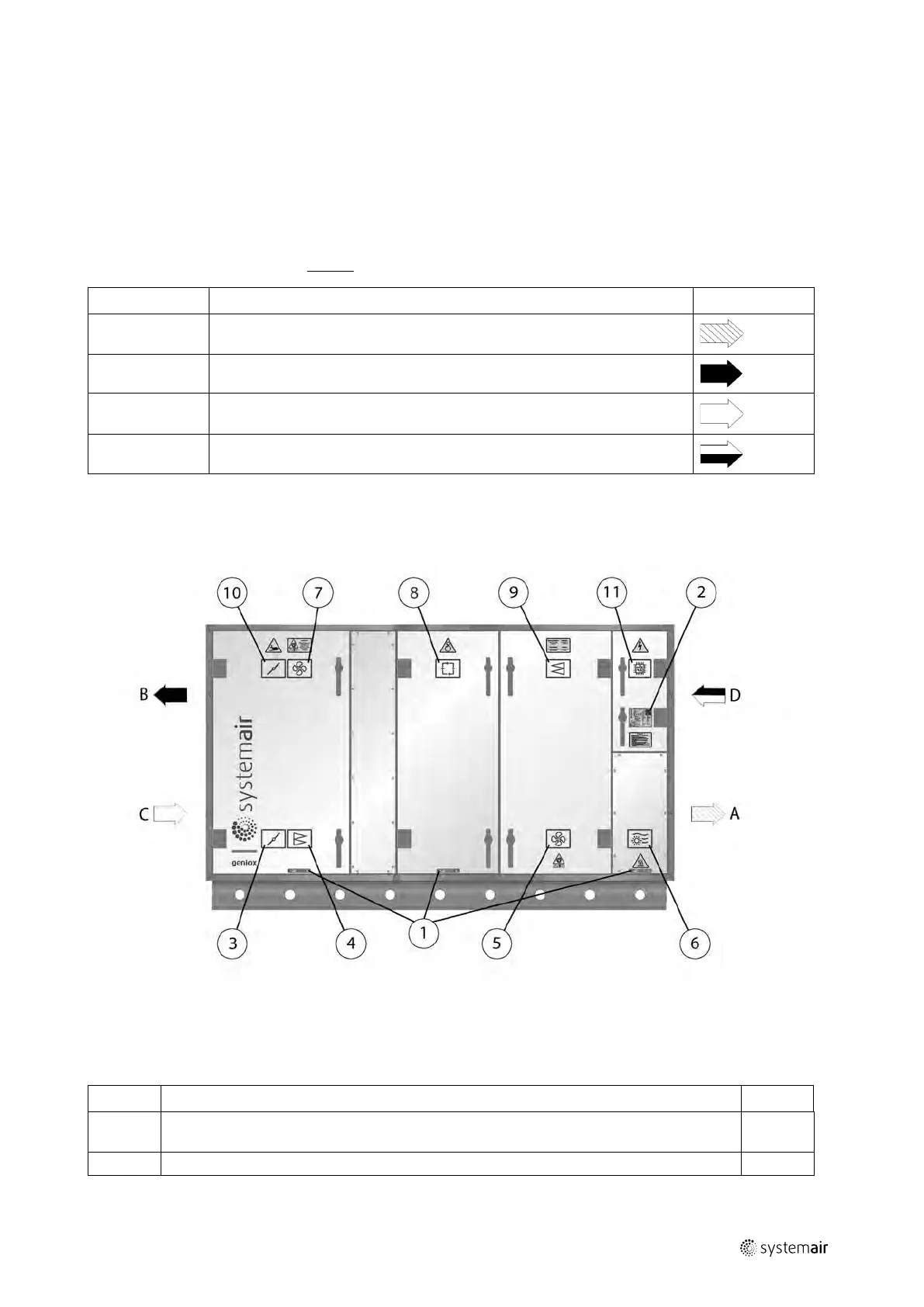

On the drawing below, a right hand unit is shown because the inspection doors are mounted on the right hand side of
the unit when looked in direction of SUPPLY airflow. The unit below is with rotary heat exchanger.
Position
Description
Symbol
A
Connection, supply air (to the rooms)
B
Connection, exhaust air
C
Connection, outdoor air in
D
Connection, extract air (from the rooms)
D.1 Overview via pictograms on the inspection side of the unit
D.1.1 Where are pictograms placed on the units
Example (Pictograms and labels with descriptions of functions for fast identification)
Position Description
Symbol
1
At each section a label with production number of this air handling unit as well as weight of
each section
2
Machine card
