O.3 Disposal of the heat pump system - type Geniox - HP
Prior to the disposal of the Geniox — HP unit section, the refrigerant in the heat pump system must be drained off by a
skilled technician from a certified company. After correct evacuation of the refrigerant, the disposal of the Geniox — HP
unit section is similar to the disposal of the rest of the air handling unit.
O.4 General disassembly – sharp edges
Pay attention to several sharp edges during dismantling and disposal of the unit. To avoid injury, CE-marked cut-resist-
ant gloves as well as helmet must be used. The measures are described further in the Maintenance, Dismantling and
Disposal Manual.
P Instructions for machinery where these are regularly to be transported
The subject in the Machinery Directive about machinery that are regularly to be transported does not exist for the Gen-
iox air handling units, because those units are specially made for one intended application.
Q The operating method to be followed in the event of breakdown. Safe restart.
Use the below mentioned procedure in the event of breakdown or blockage:
• Switch off the power and lock the automatic circuit breaker by padlocks in the off position.
• Remove the reason for breakdown or blockage.
• Follow the start-up procedure described in chapter K.
R Adjustment and maintenance operations
Must be performed by skilled technicians.
In connection with demands for compensation, Systemair must have full and unhindered access to all relevant reporting
on service, repair, modification and use since the unit was transferred from Systemair to a transport company at the
Systemair factory. It is a condition for compensation that maintenance outlined on the following pages has as a mini-
mum been performed.
R.1 Shutdown of the unit to a safe state
Switch the unit to OFF on the Systemair Control Panel. See the - Operator’s Guide – Annex 17. Switch off the automatic

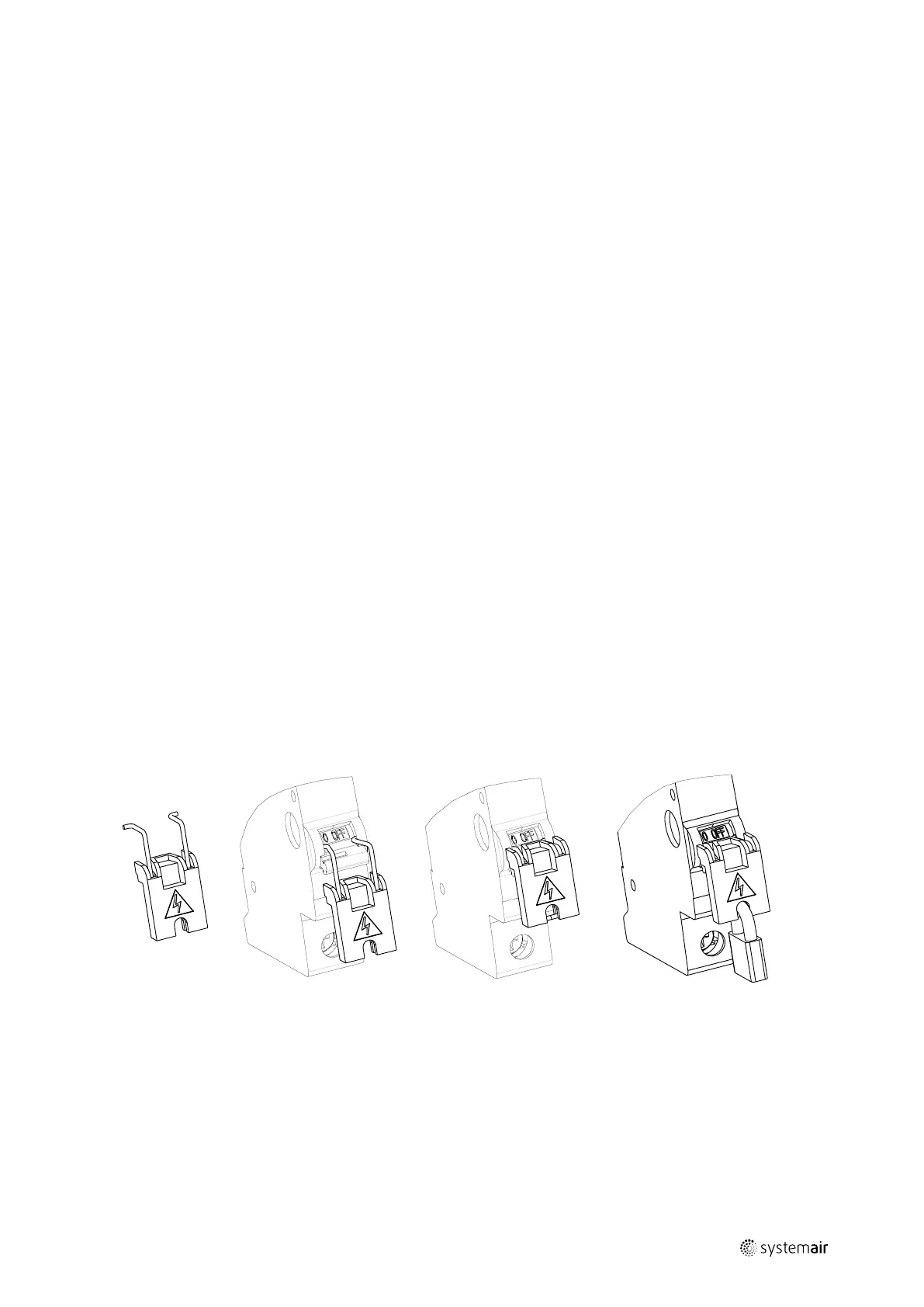

circuit breakers and block them by padlocks. The automatic circuit breakers are marked F1 to F4. See the illustration be-
low about how to place a padlock on each automatic circuit breaker.
Check that the automatic circuit breaker marked F5 is still switched on because the lamps inside the unit, and only those
lamps, are connected to this switch. Switch on the lamps for light during the maintenance activities.
Use the start-up procedure described in chapter K, when the maintenance activities are completed.
