SystemAir Geniox Series - Base Frame Length 2582 - 4964 [MM] Unit Size 10 - 18

6-2
| Assembly of base frame – height 218 mm for unit sizes 10 – 18
End profile type D (width of base frame)
Unit size Quantity
Length of endprofile (width of base
frame) [mm]
Geniox12 2 1270
Geniox14 2 1470
Geniox16 2 1670
Geniox18 2 1870
Length profile type C
Corner A
Adjustable length of
frame — L [mm]
Quantity
Length of profile [mm]
Quantity
482 – 564 2 400 4
582 – 664 2 500 4
682 – 764 2 600 4
782 – 864 2 700 4
882 — 964 2 800 4
982 – 1064 2 900 4
1082 — 1164 2 1000 4
1182 – 1264 2 1100 4
1282 – 1364 2 1200 4
1382 – 1464 2 1300 4
1482 – 1564 2 1400 4
1582 – 1664 2 1500 4
1682 — 1764 2 1600 4
1782 — 1864 2 1700 4
1882 — 1964 2 1800 4
1982 — 2064 2 1900 4
2082 — 2164 2 2000 4
2182 — 2264 2 2100 4
2282 — 2364 2 2200 4
2382 — 2464 2 2300 4
2482 — 2564 2 2400 4

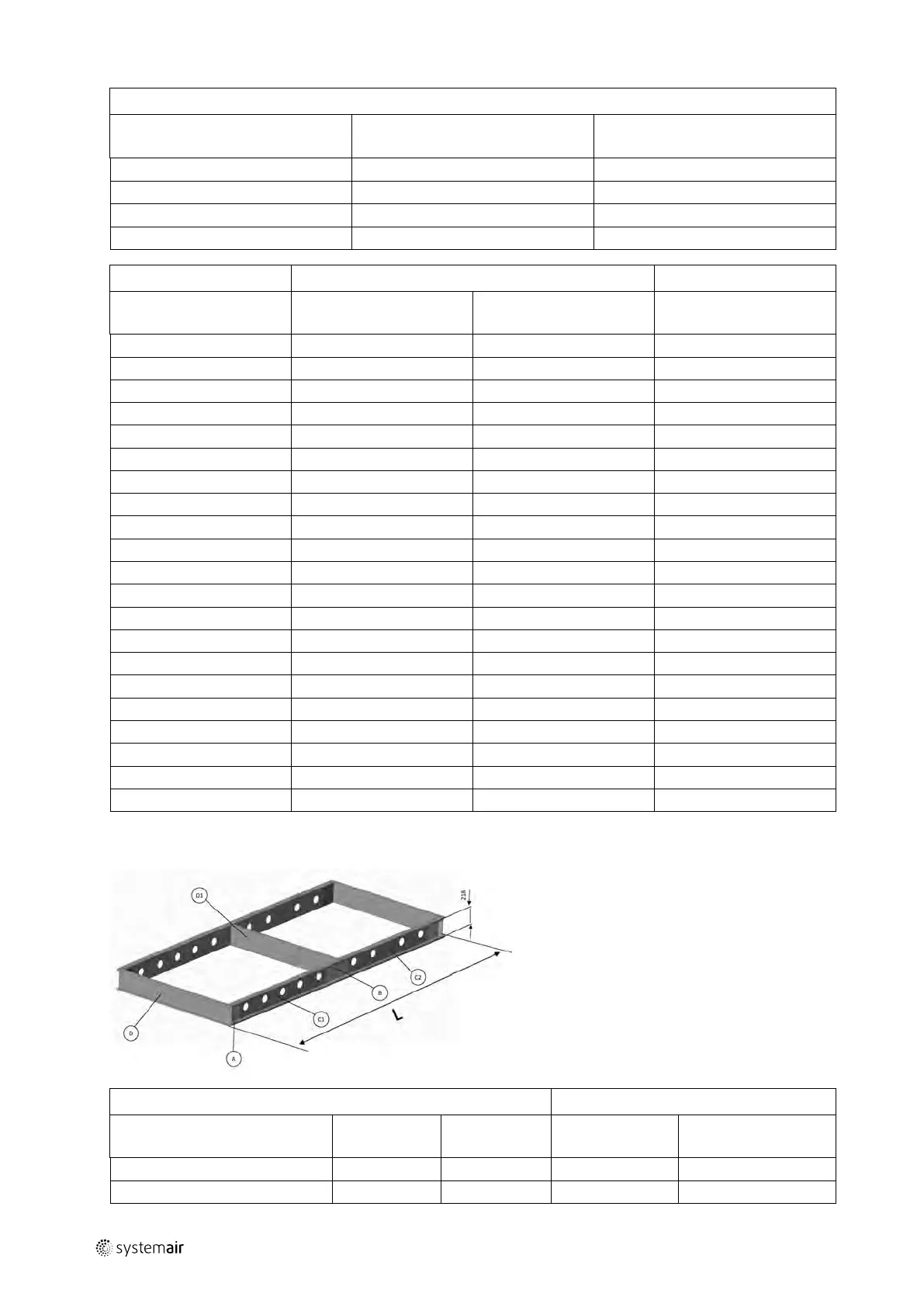

6.2 Base frame length 2582 – 4964 [mm] Unit size 10 – 18
End profile type D (width of base frame)
Middle profile type D1
Unit size Quantity
width of base
frame [mm]
Quantity
Length [mm]
Geniox10 2 1070 1 950
Geniox11 2 1170 1 1050
