12
| Instructions for unloading on the site as well as installation and connection
I.1.2 Unloading by crane
AHU delivered on transport pallet must be lifted by straps as shown in the illustration.
I.1.3 Transport of unit without base frame on the site
Units without base frame are always delivered in sections with each section on a pallet. Sections can be transported on
the site by hand manual forklifts.
I.1.4 Lifting a unit with straps
Use an appropriate lifting beam with a sufficient span to avoid that the straps touch and damage the drip nose profiles
and the inspection side with handles, pipes and accessories – for example manometers, cabinets, tabs for measuring
the pressure.

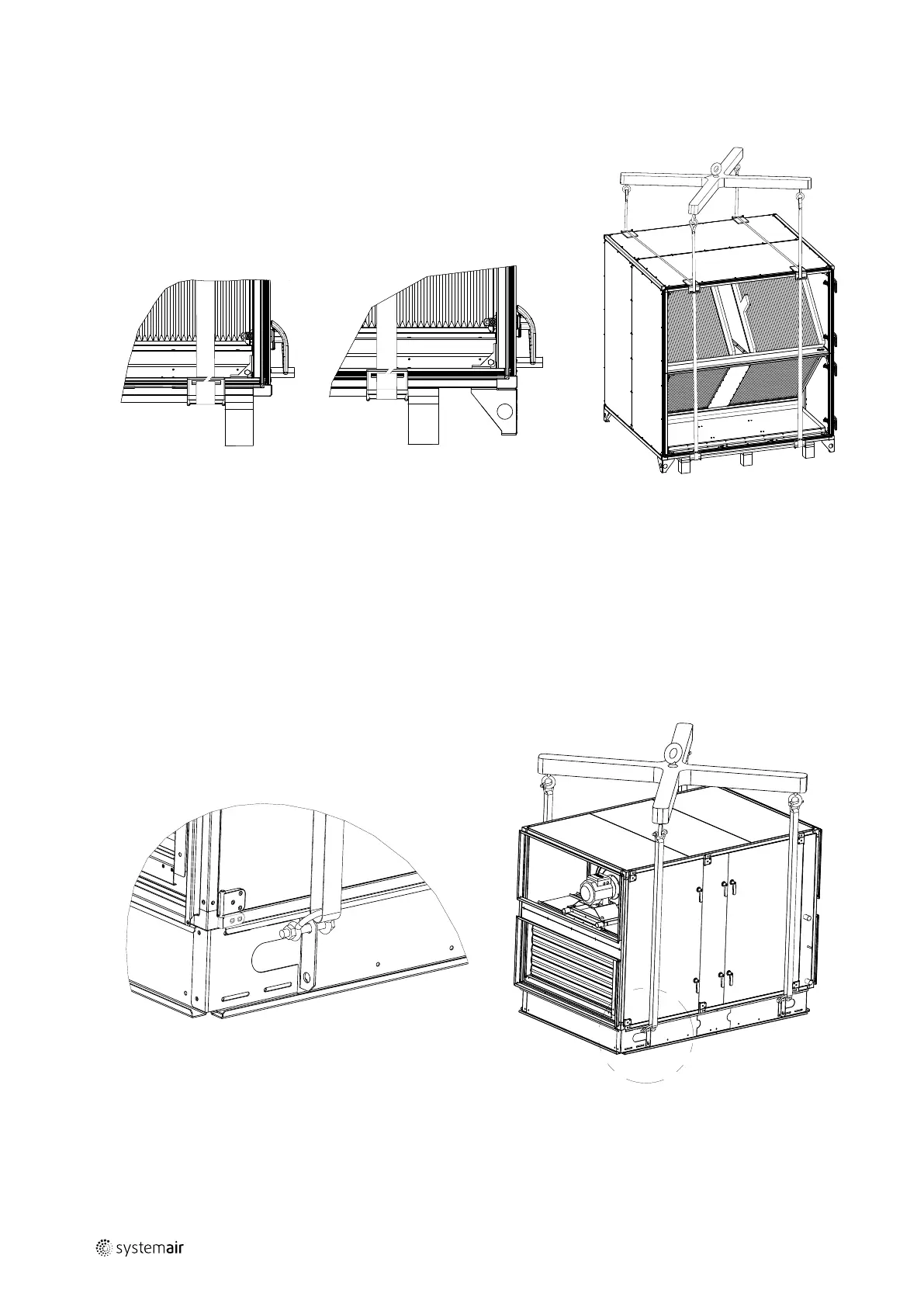

I.1.5 Lifting a unit with preinstalled brackets on the base frame for lifting.
Lifting beam and straps are not included in the delivery.
I.1.6 Lifting a unit without base frame and legs but with preinstalled brackets for lifting.
Attach straps carefully to the 4 brackets at the bottom of sections on Geiniox units sizes 20 — 31, because those brack-
ets are mounted to the profiles that are bearing the heavy components in the section
