ARES-G2 Getting Started Guide Page 15
System Components
The ARES-G2 system can be set up in several different configurations depending upon your needs. The
following items may be part of a system:
• ARES-G2 test station
• Modular power supply
•Geometries
• Forced Convection Oven (optional)
• LN2 Cooler (optional)
• Fluid Bath (optional)
• Peltier Plate (optional)
These components are briefly described in this chapter. For details regarding each part, please refer to the
online help accessed through the TRIOS software.
ARES-G2 Test Station
An ARES-G2 test station, shown in the figure below, consists of several components. The primary compo-
nents are the motor, stage, transducer, keypad, touch screen display, an environmental control option, and
various geometries needed for experiments.

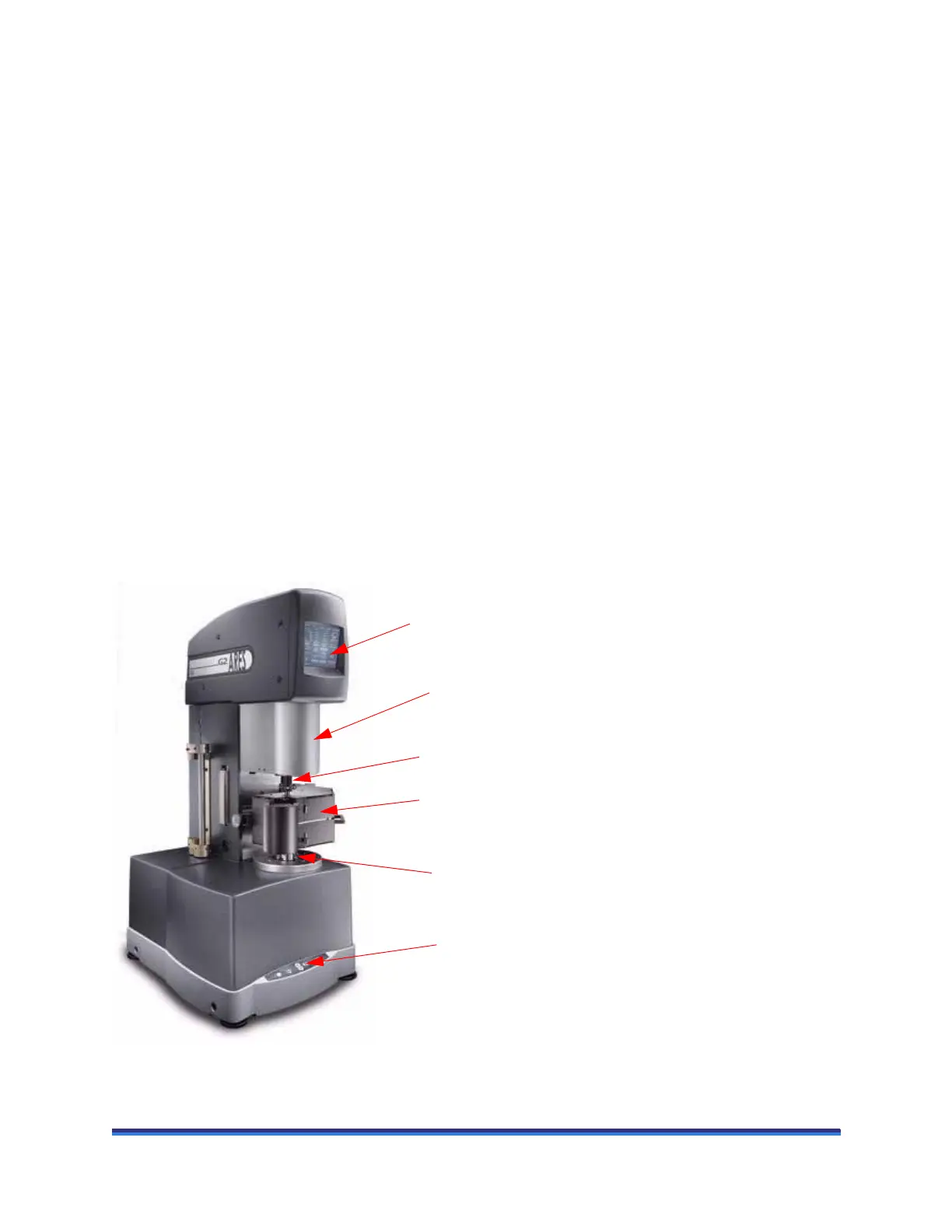

Figure 2 ARES-G2 test station.
Touch screen
Stage
Transducer
Keypad
Motor
Environmental
control option
(Oven shown)
