ARES-G2 Getting Started Guide Page 60
Leveling the ARES-G2
The ARES-G2 is levelled using the feet, or levellers, located on each corner. Note that the right rear level-
ler is fixed in position; therefore, you will be adjusting the other three levellers. Follow the instructions
below to perform this procedure.

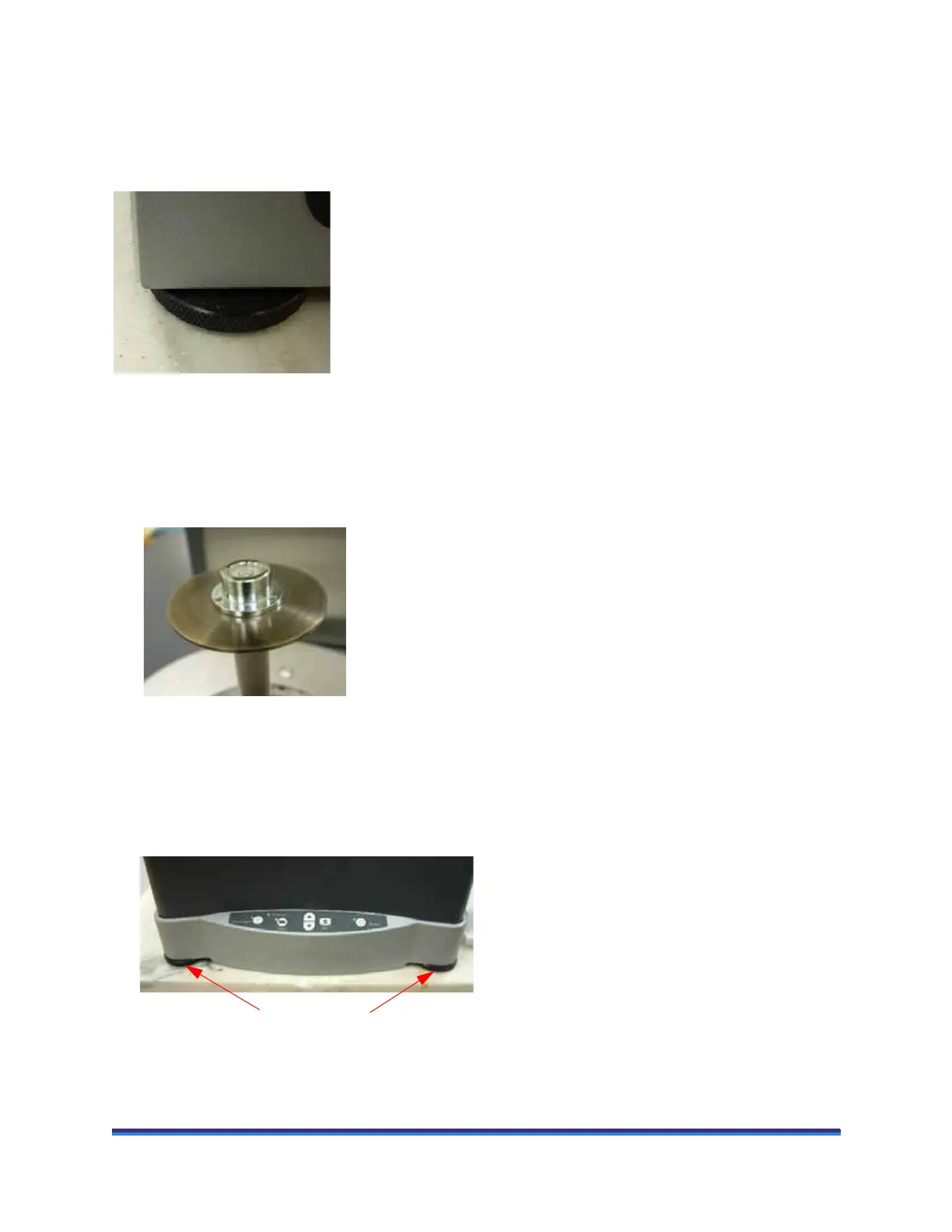

Figure 39 Leveller.
1 Raise the left rear leveller by turning it clockwise until it has been raised as far as possible.
2 Make sure that the air is on and the motor is unlocked.
3 Install a lower parallel plate geometry (either the 25 or 50-mm size can be used).
Figure 40 Parallel plate geometry.
4 Place the supplied bubble level in the center of the plate.
5 Front-to-Back Adjustment: Turn the right front leveller in either direction until the bubble is roughly
centered front-to-back on the horizontal axis of the circle. (At this point the left-to-right position is not
important.)
Figure 41 Front levellers on ARES-G2.
