ARES-G2 Getting Started Guide Page 26
ACS-3 and Chiller Panel
NOTE: For installation instructions, refer to the ACS-3 Getting Started Guide.
The ACS-3 is a unique three-stage air chiller system for subambient temperature control and general
cooling of select instrumentation from TA. Supported instruments and environmental systems include the
DMA Q800 with standard furnace (-100°C), Discovery Hybrid Rheometer models with Environmental
Test Chamber (-85°C), and ARES-G2/ RSA-G2 with Forced Convection Oven (-100°C). The ACS-3
features low-noise durable compressors (approx. 55 dB), small footprint, uninterrupted operation, CFC-
free, and for specified temperature ranges, eliminates the recurring cost and safety concerns associated
with handling and use of liquid nitrogen. The ACS-3 requires an air supply at pressure of 7 bar (100 psi),
flow rate of 200 l/min, and dew point of -40°C (-40°F), and appropriate instrument-specific
Chiller Panel.

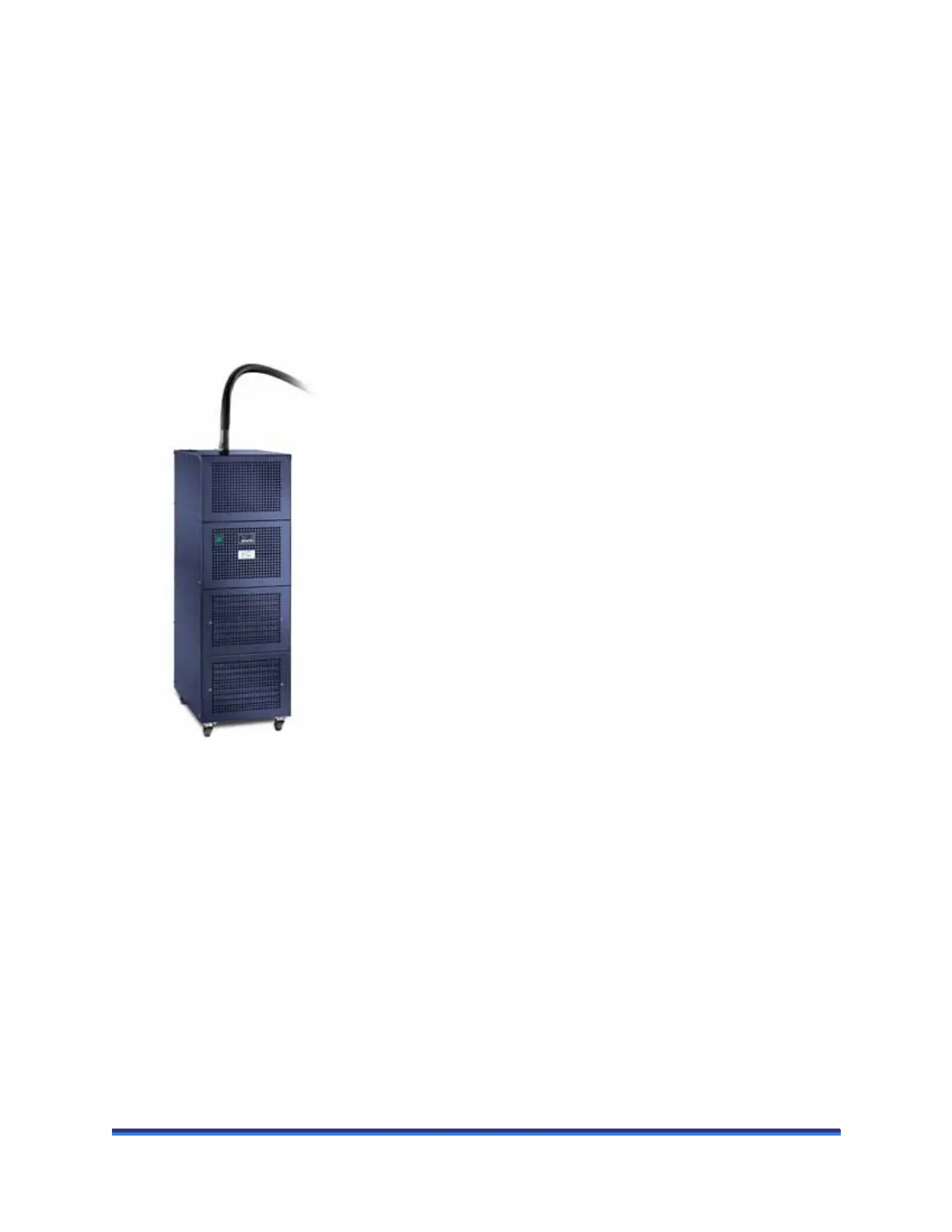

Figure 13 ACS-3.
