ARES-G2 Getting Started Guide Page 27
The Chiller Panel is mounted to the side of the ACS-3. The Chiller Panel assembly contains all of the
pneumatic and electronic components needed to filter, regulate, and control the compressed gas (air or
nitrogen) that is supplied to the FCO.

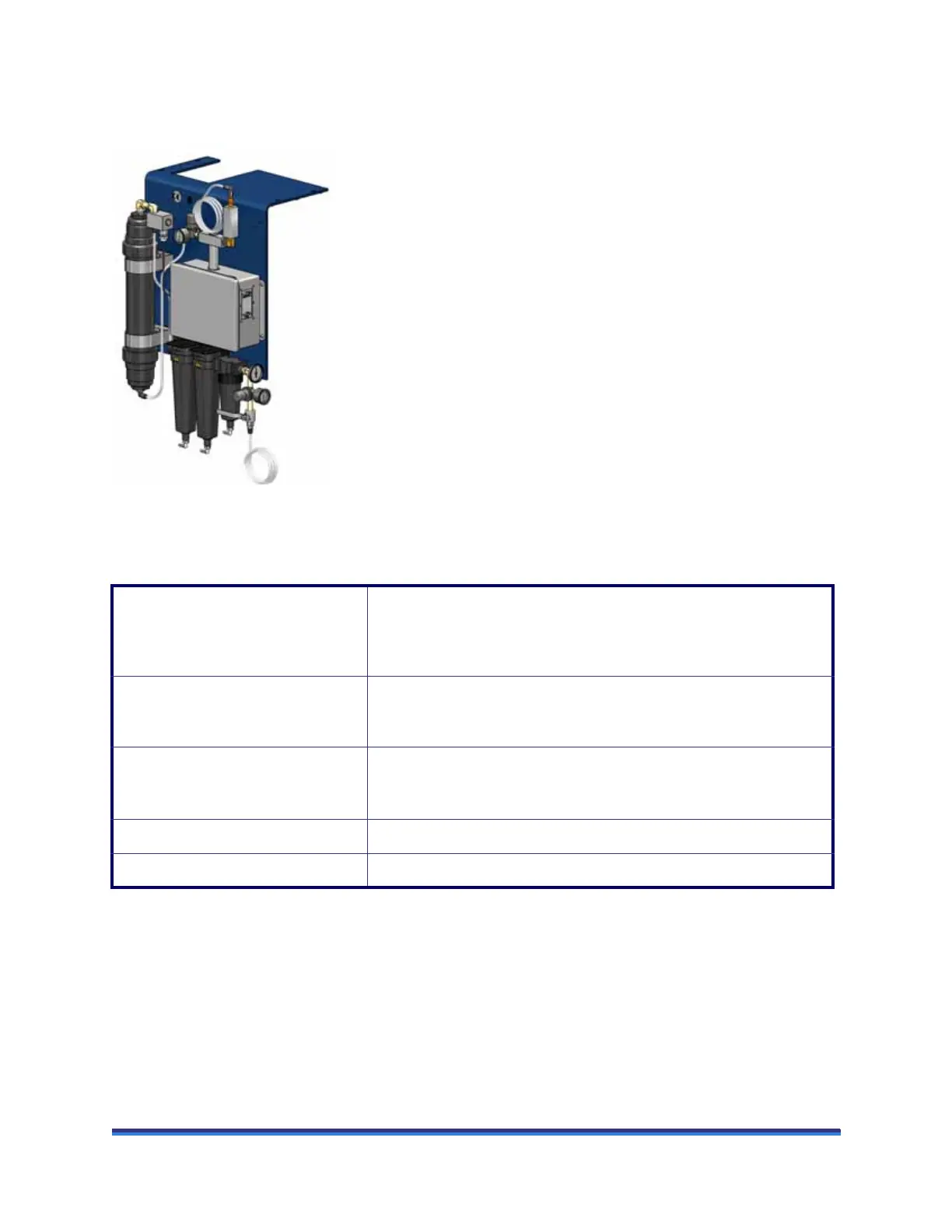

Figure 14 FCO Chiller Panel assembly before being mounted on Air Chiller.
Table 3: ACS-3 and Chiller Panel Specifications
Dimensions of Air Chiller
(H x W x D):
Without Chiller Panel
With Chiller Panel
112 cm (44 in) x 37 cm (14.5 in) x 56 cm (22 in)
112 cm (44 in) x 52 cm (20.5 in) x 56 cm (22 in)
Weight of Air Chiller
Without Chiller Panel
With Chiller Panel
118 kg (260 lbs)
134 kg (295 lbs)
Dimensions of Chiller Panel Height: 86.4 cm (34 in)
Width: 48.3 cm (19 in)
Depth:38.1 cm (15 in)
Weight of Chiller Panel 18.2 kg (40 lbs)
Lowest Temperature ARES-G2/ RSA-G2 FCO: -100°C
