Connecting Cables and Lines
To connect the cables and gas lines, you will need access to the ARES-G2 instrument’s rear panel. All
directional descriptions are written on the assumption that you are facing the back of the instrument.
CAUTION: Connect all cables before connecting the power cords to the outlets. Tighten the thumb-
screws on all computer cables.
MISE EN GARDE: Raccordez tous les câbles avant de connecter les cordons d'alimentation aux
prises. Serrez les vis à serrage à main sur tous les câbles d'ordinateur.
CAUTION: Whenever plugging or unplugging power cords, handle them by the plugs, not by the
cords.
MISE EN GARDE: Chaque fois que vous branchez ou débranchez les cordons d'alimentation, tenez-
les par les fiches et non par les cordons.
Connecting the Signal Cables on the Signal Panel for OSP Operation
NOTE: Orthogonal superposition (OSP) is only available on instruments with the serial number 4010-0383
and higher or instruments with a lower serial number that have upgraded to OSP.
To connect the signal cables for OSP, plug in the supplied short BNC connector cables at the signal panels
at the rear of the test station. Make the following connections:
1 Connect Orthogonal IN at the OSP signal panel to DSP DAC at the lower signal panel.
2 Connect Orthogonal OUT at the OSP panel to Freq. Resp./Spare at the lower signal panel.

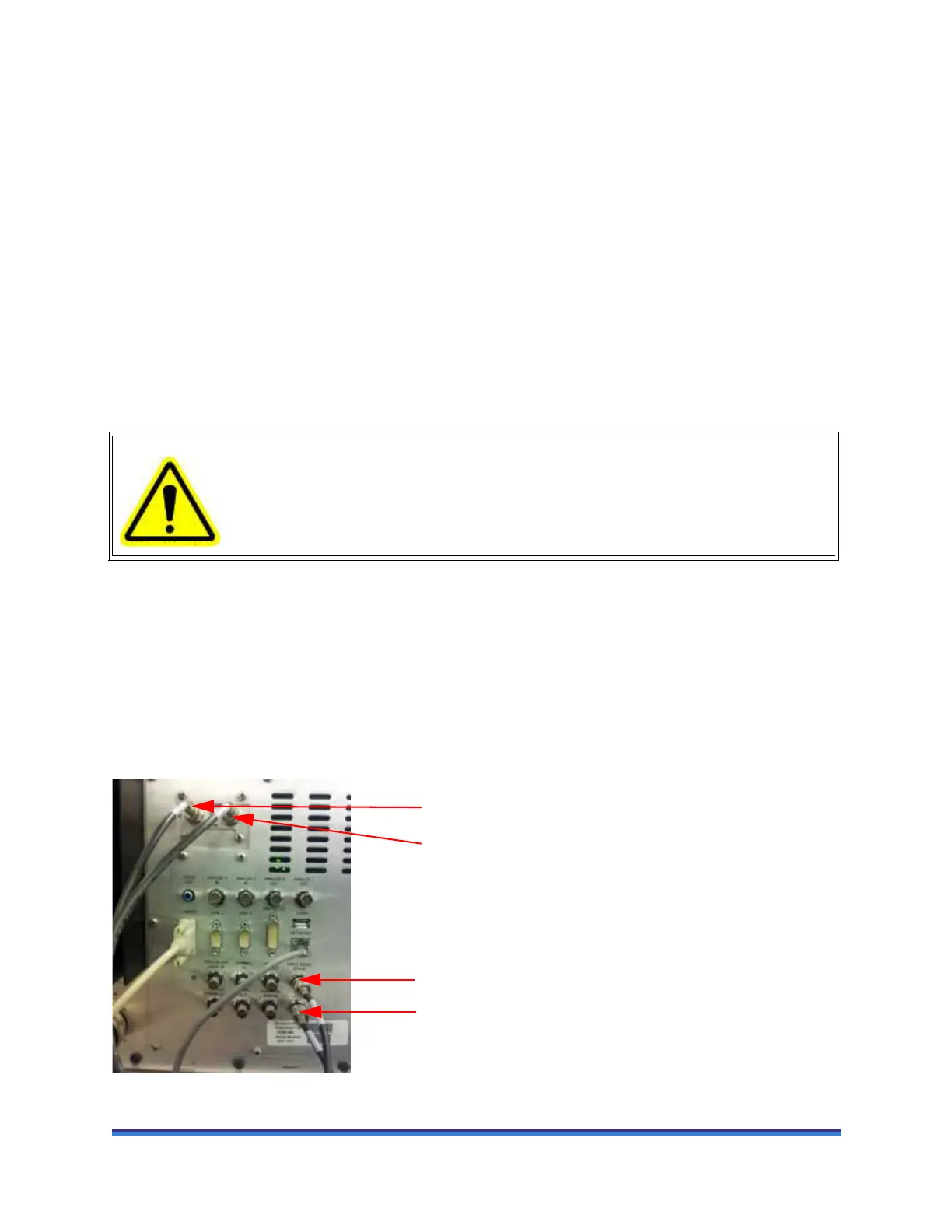

Figure 27 ARES-G2 signal panels and connectors for OSP at the rear of the test station.
WARNING: Protect power and communication cable paths. Do not create trip-
ping hazards by laying the cables across access ways.
AVERTISSEMENT: Protégez les chemins de câble électriques et de câbles de
télécommunication. Ne créez pas de risques de déclenchement en posant des
câbles sur les voies d'accès.
Orthogonal IN
Orthogonal OUT
Freq. Resp./Spare
DSP/DAC
