ARES-G2 Getting Started Guide Page 58
Locking the Transducer
Once the transducer has been unlocked, you will not need to lock it again unless you shut off the air supply
to the instrument or the instrument must be moved.
To lock the transducer:
1 Ensure that instrument power is off and air is being supplied to the motor.
2 Turn the locking handle toward the front of the instrument as shown in the figure to the right. Now you
can turn off the air supply or move the instrument.

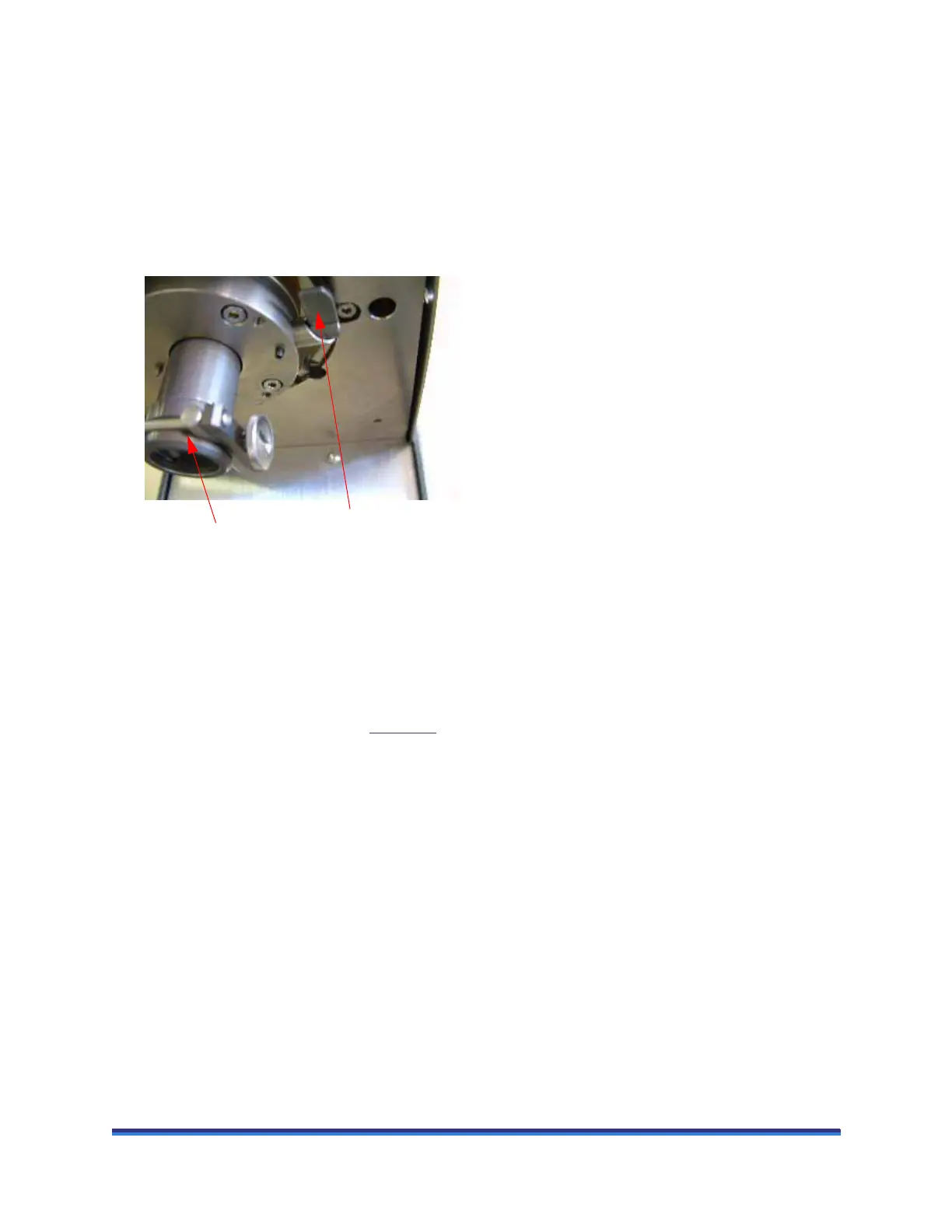

Figure 37 Transducer locked.
Connecting Accessories
Follow the instructions in the associated manual or online help for instructions on connecting any accesso-
ries to the ARES-G2.
To install the various geometries, see Chapter 3
for basic instructions. See the online help for geometry-
specific information.
Anvil
Locking Handle
Pointing Toward Front
