8.4.1 Factory default set-up

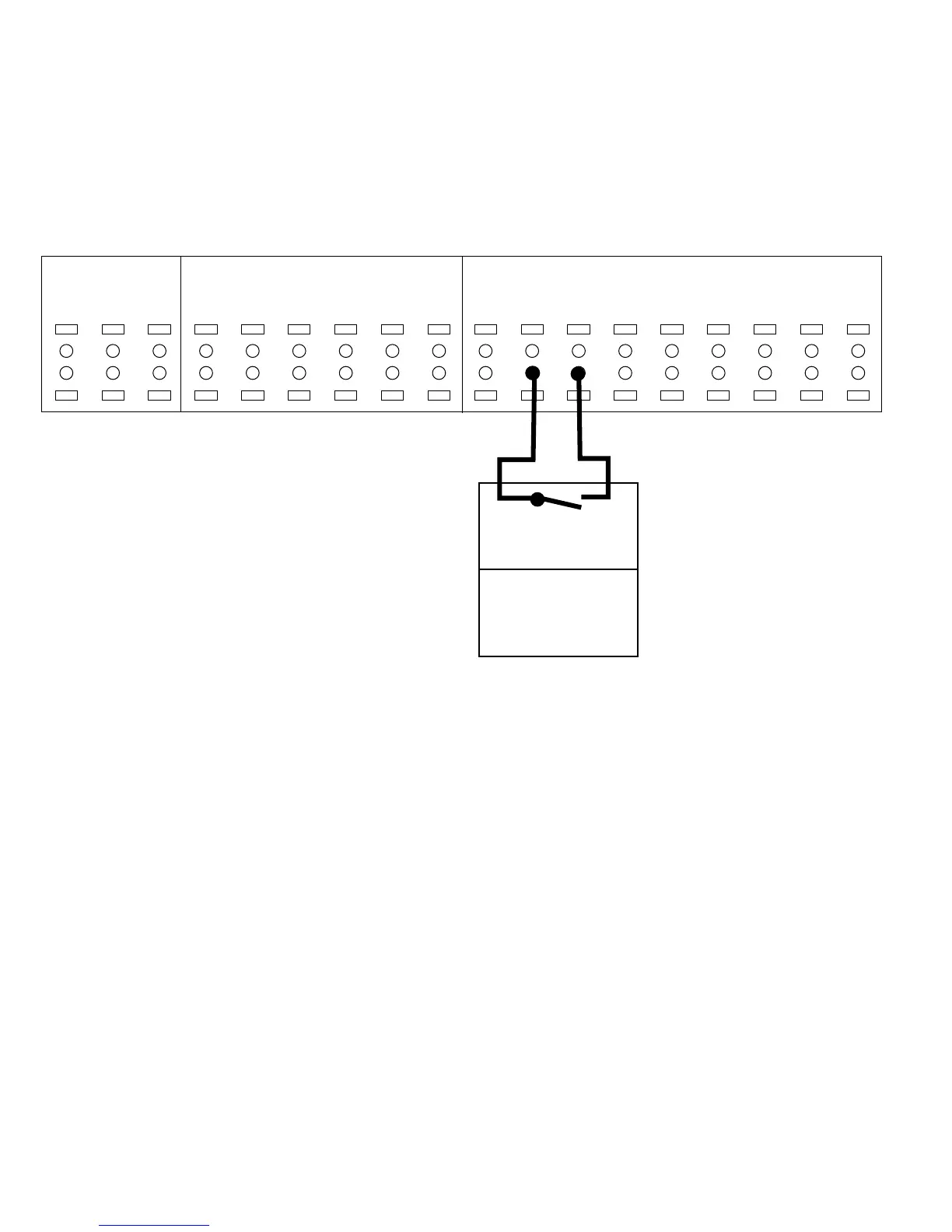

This configuration makes use of the controller factory default settings for input/output. The factory default settings are
configured for Set-up 1, SelfSensing system curve control without an external transducer. No parameters need to be
changed to use this configuration. Set-up 3, SelfSensing constant flow control, uses the same default settings.
Set-ups can be changed by modifying the parameter 0-10 Active Set-up.
NOTE: The factory default settings require a start signal wired to DI18 (see below).
69
-
39
COM
42
AOUT
50
+10V
53
A IN
55
COM
54
A IN
12
+24V
13
+24V
18
D IN
19
D IN
27
D IN
29
D IN
32
D IN
33
D IN
20
COM
68
+
61
SHLD
Comm Port I/O Analog I/O Digital
Starting/Stopping
Controller
[5-10]
[8] Start*
Start: Closed
* factory default
