FY operation manual 12

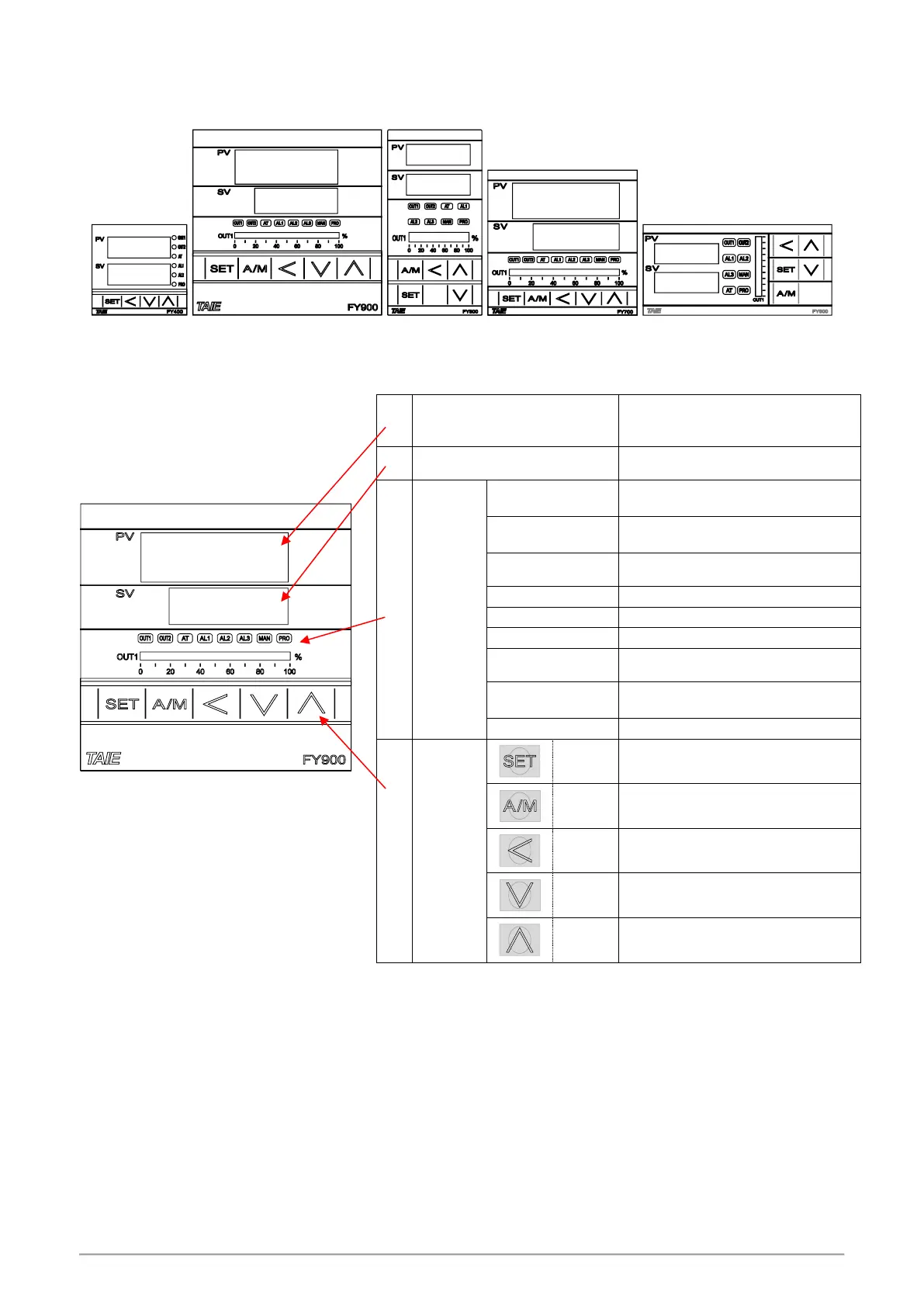

6. Parts Description
6.1 FY Series
8.8.8.8
8.8.8.8
8.8.8.8
8.8.8.8
8.8.8.8
8.8.8.8
8.8.8.8
8.8.8.8
8.8.8.8
8.8.8.8
FY400
FY900
FY800
FY700
FY600
8.8.8.8
8.8.8.8
1
PV
Indicating PV (measured value) and
character information such as parameter
codes or error codes(Red)
2
SV
Indicating SV (target set value) or
parameter values(Green)
3
LED
OUT1
Lamp lit when OUT1 is activated
( Green )
OUT2
Lamp lit when OUT2 is activated
( Green )
AT
Lamp lit when Auto-tuning is activated
(Orange)
AL1
Lamp lit when Alarm 1 is activated (Red)
AL2
Lamp lit when Alarm 2 is activated (Red)
AL3
Lamp lit when Alarm 3 is activated (Red)
MAN
Lamp lit when controller in manual mode
or get error condition (Orange)
PRO
When the program is executed, this light
is on (orange)
OUT1%
Output% bar-graph indicator(Green)
4
Keypad
SET
For parameter call-up and set value
registration
A/M
Auto manual transfer
SHIFT
Shift digits when changing settings
DOWN
Decrease numerals
UP
Increase numerals
