Taie FY800 - Installation

13 FY operation manual

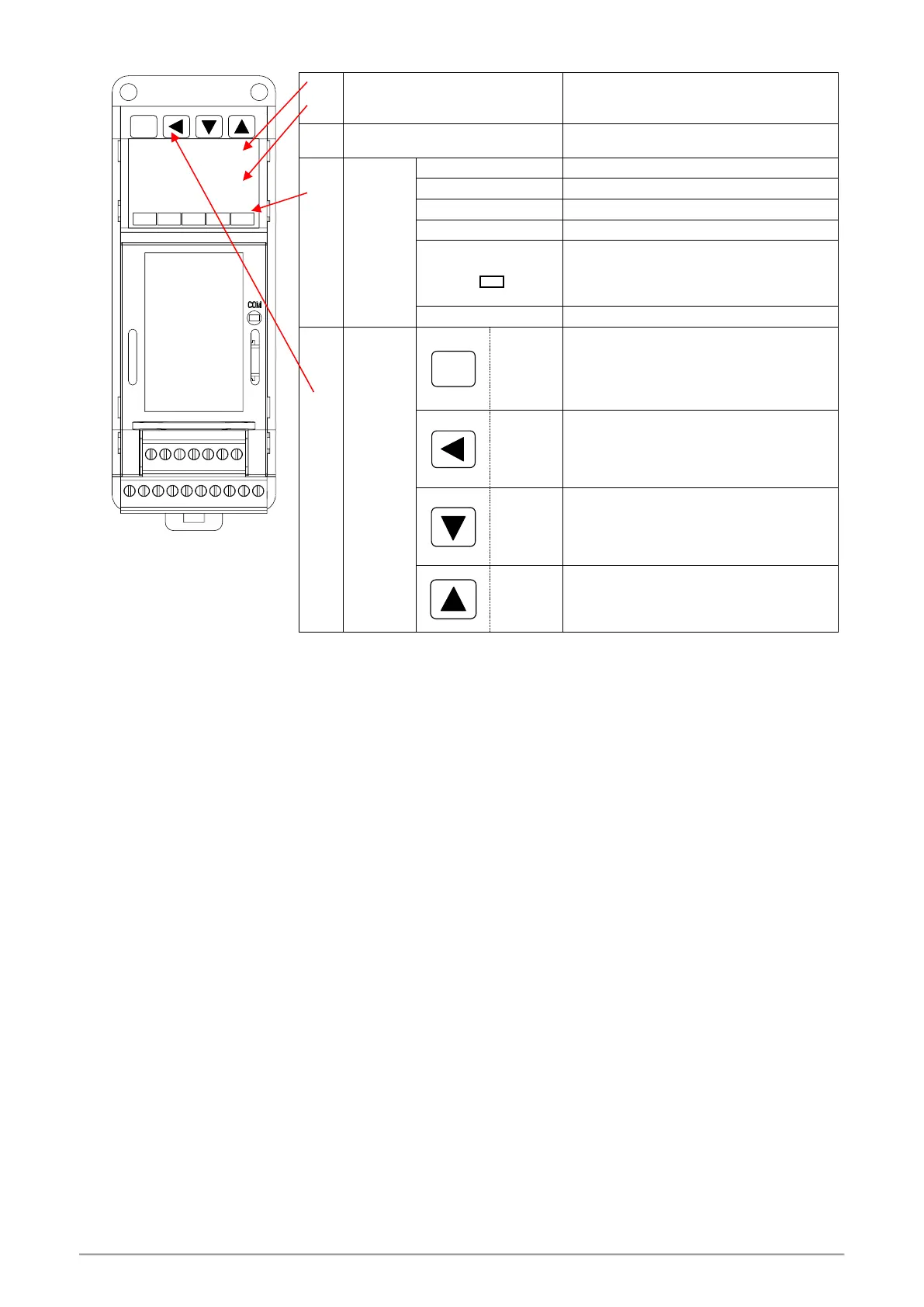

6.2 FA Series
OUT1 OUT2 AL1 AL2
FA230 TAIE
8.8.8.8
8.8.8.8
SET
1
PV
Indicating PV (measured value) and character
information such as parameter codes or error
codes(Red)
2
SV
Indicating SV (target set value) or parameter
values(Green)
3
LED
OUT1
Lamp lit when OUT1 is activated ( Green )
OUT2
Lamp lit when OUT2 is activated ( Green )
AL1
Lamp lit when Alarm 1 is activated (Red)
AL2
Lamp lit when Alarm 2 is activated (Red)
1. Lamp lit when Auto-tuning is activated
(Orange)
2. When the program is executed, this light is
on (orange)
COM
Lights when controller response data (Orange)
4
Keypad
SET
SET
For parameter call-up and set value
registration
SHIFT
Shift digits when changing settings
DOWN
Decrease numerals
UP
Increase numerals
