Taie FY800 - Alarm Mode

59 FY operation manual

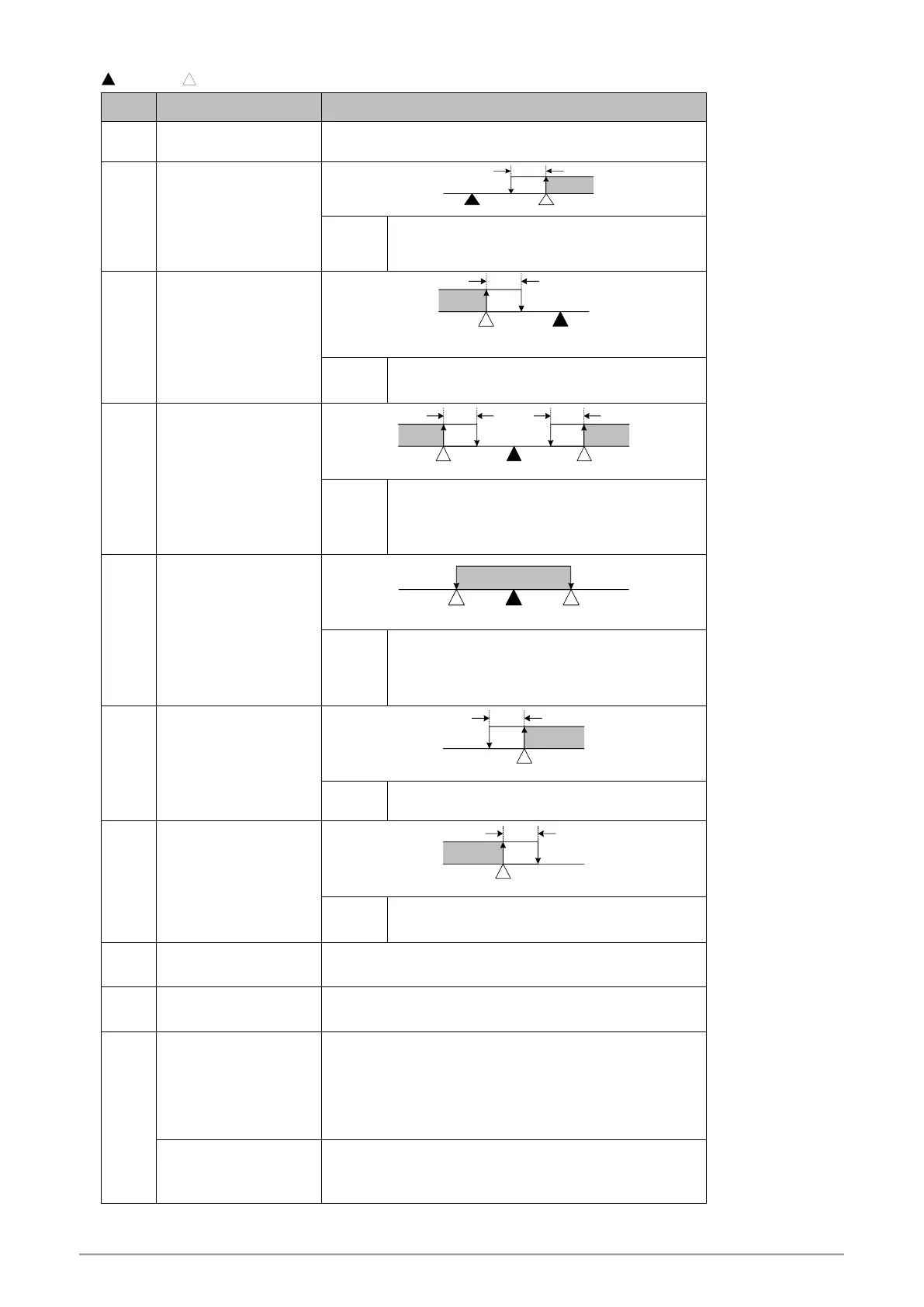

12.1 Alarm Mode
：SV ： Alarm set value X：1 / 2 / 3 (There are up to 3 sets of alarms)
ALDX
Alarm mode
Description
0
No alarm function
Not drive any alarm relays and the corresponding LED lamp.
1
Deviation high
(With hold action)
ON
ALX
OFF
SV
HYSX
Formula
PV ≥ (SV+ALX) → Alarm ON
PV ≤ (SV+ALX-HYSA) → Alarm OFF
2
Deviation low
(With hold action)
ON
ALX
OFF
SV
HYSX
*
ALX must to be set to a negative value
Formula
PV ≤ (SV+ALX) → Alarm ON
PV ≥ (SV+ALX+HYSA) → Alarm OFF
3
Deviation high/low
(With hold action)
ON
ALX
HYSX
SV
OFF
ON
ALX
HYSX
Formula
PV ≥ (SV+ALX) → Alarm ON
PV ≤ (SV-ALX) → Alarm ON
PV ≥ (SV-ALX+HYSA) → Alarm OFF
PV ≤ (SV+ALX-HYSA) → Alarm OFF
4
Band
(With hold action)
ON
OFF
SV ALXALX
OFF
Formula
PV ≤ (SV+ALX) → Alarm ON
PV ≥ (SV-ALX) → Alarm ON
PV > (SV+ALX) → Alarm OFF
PV < (SV-ALX) → Alarm OFF
5
Process high
(With hold action)
ON
ALX
OFF
HYSX
Formula
PV ≥ ALX→ Alarm ON
PV ≤ (ALX-HYSA) → Alarm OFF
6
Process low
(With hold action)
ON
ALX
OFF
HYSX
Formula
PV ≤ ALX→ Alarm ON
PV ≥ (ALX+HYSA) → Alarm OFF
7
Segment execute alarm
When SEG=ALX alarm ON
*
This mode only available in program type controller
8
System error
The Alert action, when PV displays error message
9
HBA
(Heater Break Alarm)
Activated conditions：
1. Heater current is less the HBAC set value
2. OUT1 manipulated value exceed HBOP set value
3. Conditions of 1 & 2 above are established and continue to
exceed 20 seconds.
*
Please refer to Chapter 11.4
*
This mode only available in ALD1 or ALD2
Single RAMP
Please refer to Chapter 11.7
This mode only available in ALD3
