65 FY operation manual
(1) WAIT = 0.0 without wait function set
Assume the set temperature of current segment is 100.0°C, and as SV reaches
the set temperature of this segment, the controller will enter the next segment
(2) WAIT = 5.0 with wait function set
Assume the set temperature of current segment is 100.0°C, and as SV reaches
the set temperature of this segment, PV temperature needs to reach 100.0-5.0 (SV-WAIT)=95.0 then
entering the next segment
13.4 Create Program
There are 18 sets PTN to choose and each PTN have 8 segments for setting

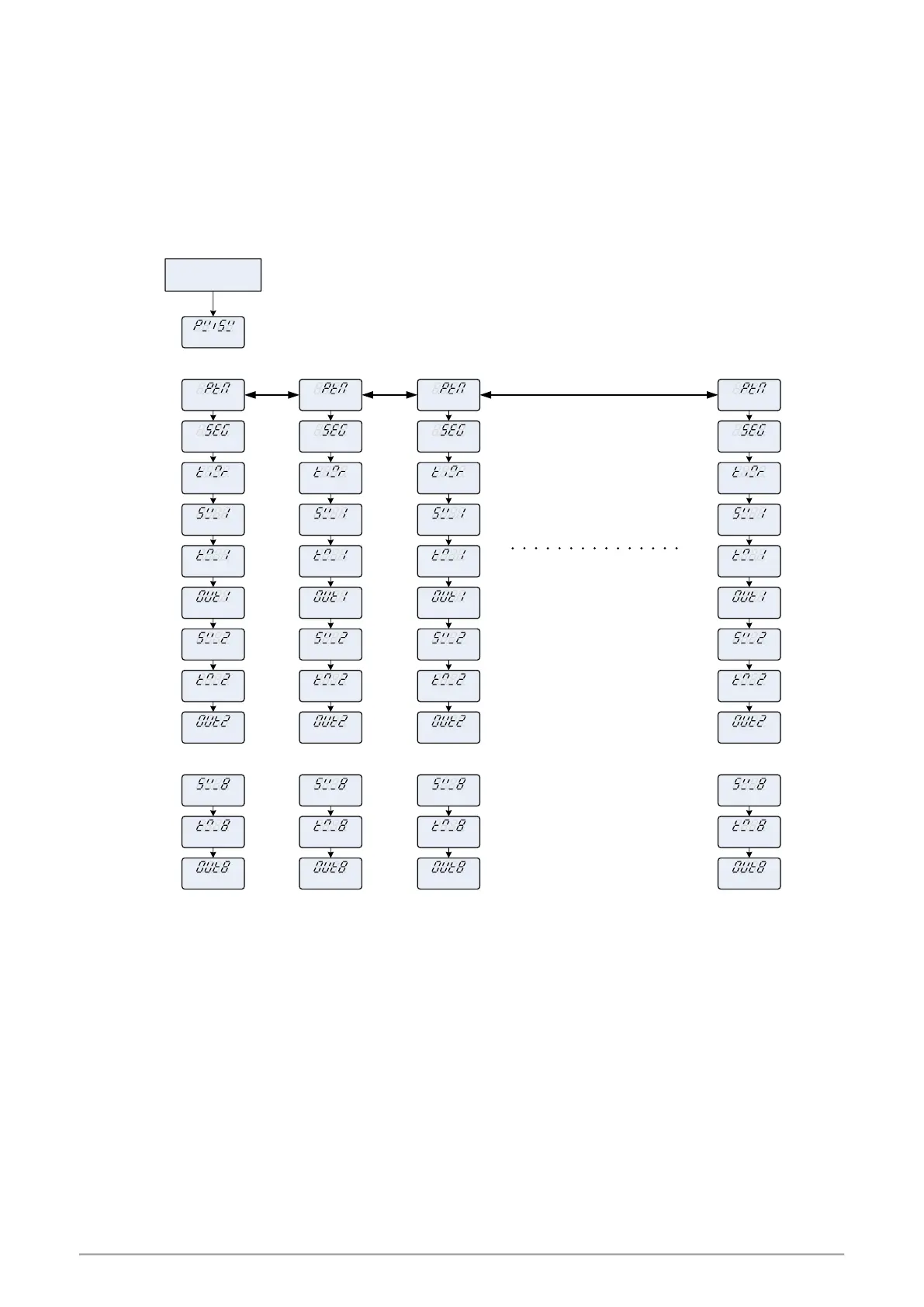

Program structure diagram
Press SET Key
Level 1
PV / SV
.
.
.
PTN group setting
MAX Segment =8
1
TM- 1
OUT1
SV-1
TM- 2
OUT2
SV-2
.
.
.
SV-8
TM- 8
OUT8
1
TIMR
2
TM- 1
OUT1
SV-1
TM- 2
OUT2
SV-2
.
.
.
SV-8
TM- 8
OUT8
1
TIMR
3
TM- 1
OUT1
SV-1
TM- 2
OUT2
SV-2
.
.
.
SV-8
TM- 8
OUT8
1
TIMR
18
TM- 1
OUT1
SV-1
TM- 2
OUT2
SV-2
.
.
.
SV-8
TM- 8
OUT8
1
TIMR
MAX Pattern =18
To Next Page
