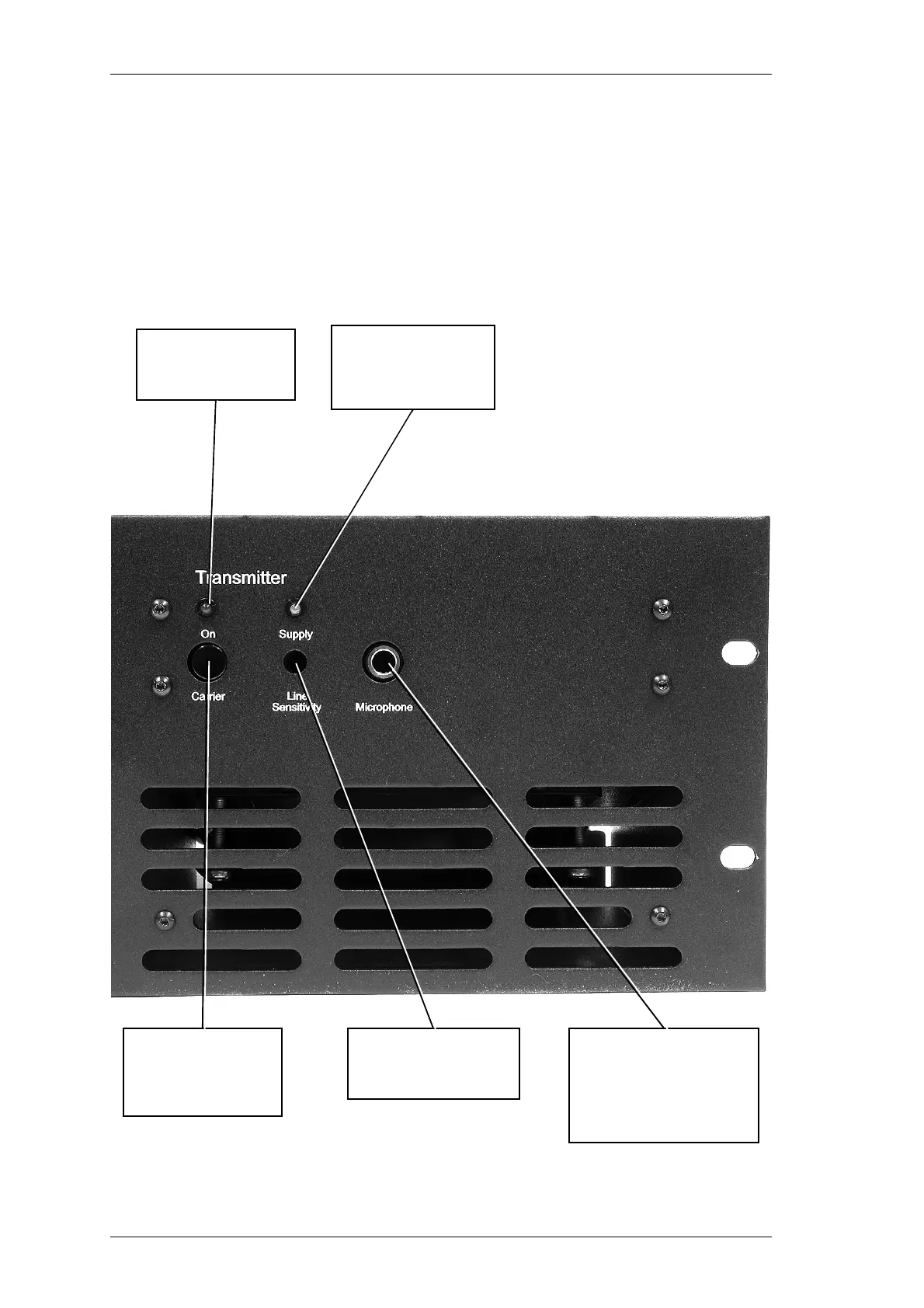

Figure 1.2 T854 Front Panel Controls
On LED
The On LED is lit when the
T854 is transmitting.
Carrier Switch
Keys the transmitter (while
disabling the 600Ω line and
microphone audio).
Supply LED
The Supply LED is lit when
DC power is supplied to the
transmitter.
Line Sensitivity
Sets the gain of the 600Ω line
input of the audio processor.
Microphone Socket
For connecting a T800-80 micro-
phone to allow local control of
the transmitter. The 600Ω line is
disabled when the PTT button is
pressed.
