2.2 Receiver Front End
(Refer to the front end, IF section and audio processor circuit diagrams (sheets 4, 3 and 2
respectively) in Section 6.3.)

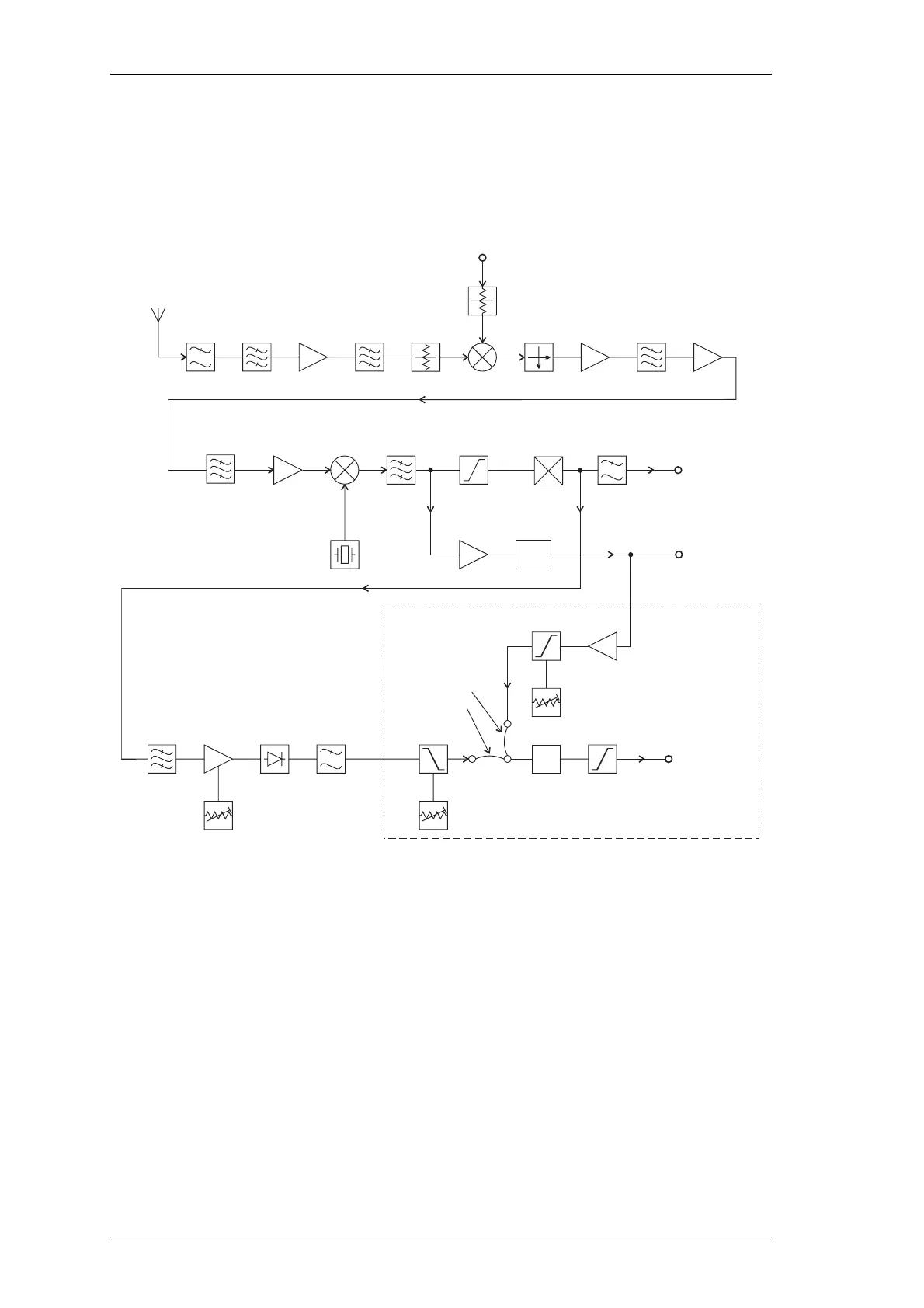

Figure 2.2 T855 Front End, IF and Mute Block Diagram
The incoming signal from the N-type antenna socket is fed through a 9-pole, low pass
filter with a cut frequency of approximately 600MHz. This low loss filter (typically less
than 0.5dB over 400 to 530MHz) provides excellent immunity to interference from high
frequency signals.
The signal is then further filtered, using a high performance helical resonator doublet
(FL410) which provides exceptional image rejection, before being amplified by approxi-
mately 8dB (Q410). The signal is then passed through a further helical filter doublet
(FL420) before being presented to the mixer via a 2dB attenuator pad.
Each sub-block within the front end has been designed with 50Ω terminations for ease
of testing and fault finding. The overall gain from the antenna socket to the mixer input
is approximately 2dB.
