M8SL2-00-002-812 T855 PCB Information B6.1.3
© Copyright Tait Electronics Limited August 2004. All rights reserved.
6.1 Introduction
Product Type Identification
You can identify the receiver type by checking the product code printed on a label on the rear of the
chassis (product codes are explained in Section 1 in the front matter of this manual, and Figure 1.1

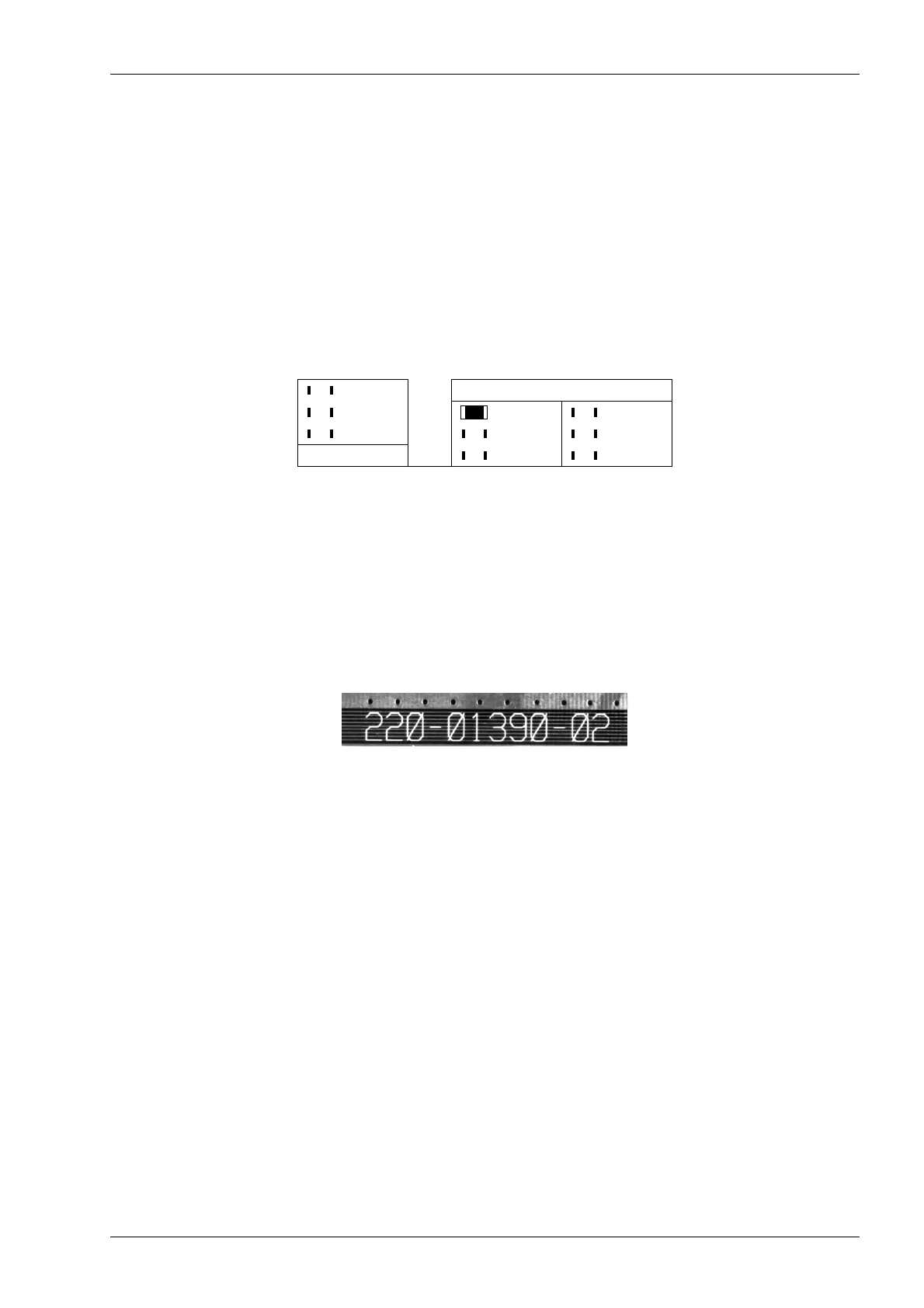

in Part A shows typical labels). You can further verify the product type by checking the placement
of an SMD resistor in the table that is screen printed onto the top side of the PCB, similar to the
example drawn below. In this example, the resistor indicates that the product was built as a
T855-10-XXXX.
Note: The only function of this resistor is to indicate the product type. It has no effect on the
circuitry or operation of the receiver.
PCB Identification
All PCBs are identified by a unique 10 digit “internal part number” (IPN), e.g. 220-01390-02, which
is screen printed onto the PCB (usually on the top side), as shown in the example below:
The last 2 digits of this number define the issue status, which starts at 00 and increments through 01,
02, 03, etc. as the PCB is updated. Some issue PCBs never reach full production status and are there-
fore not included in this manual. A letter following the 10 digit IPN has no relevance in identifying
the PCB for service purposes.
Note: It is important that you identify which issue PCB you are working on so that you can
refer to the appropriate set of PCB information.
855-30 PRODUCT TYPE
855-35 855-10 855-20
855- 855-13 855-23
PRODUCT TYPE 855-15 855-25
