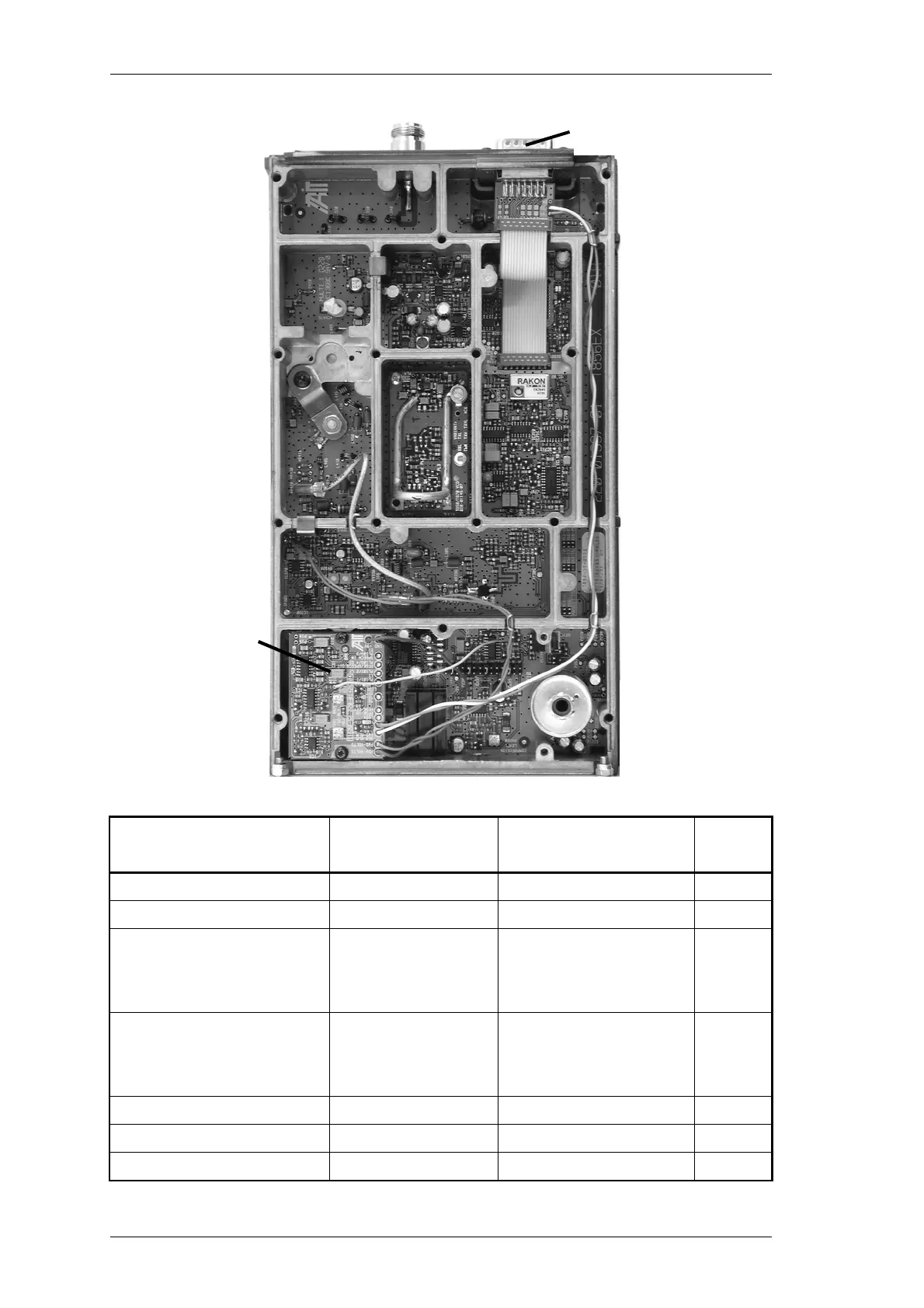

Figure 3.3 Example Transmitter (T856) Fitted with Alarm Kit
T800 connection pads
T1500-52-0000 PCB
connection pads
Rear D-range pin
number and PCB label
Wire
colour
+9V P230 +9V — Red
GND P259 GND — Black
Fwd Pwr TP
T826: R302
(via end)
T836: TP310
T854/T856: TP306
Fwd Volts — Green
Rev Pwr TP
T826: R301
(via end)
T836: TP309
T854/T856: TP307
Rev Volts — Orange
— Fwd pwr alarm Pin 13 – Fwd Blue
— Rev pwr alarm Pin 14 – Rev White
Tx Enb D240 pin 3 PTT — Yellow
Auxiliary
D-range
Alarm
PCB
