M8SL2-00-002-812 T854 Initial Tuning and Adjustment C3.19
© Copyright Tait Electronics Limited August 2004. All rights reserved.
3.10.2.1 Installation
To install this kit you will require a small flat-bladed screwdriver or similar.
1. Remove the top cover from the T854 Transmitter.
2. The auxiliary D-Range board is connected to the microcontroller cavity by a rib-
bon-cable. Remove the ribbon-cable.
3. For T854 transmitters with a serial number of 13098764 or earlier:
These transmitters are not by default configured to work with the plug-in board.
The directional coupler voltages must be routed to SK805.
Note:This step disables AUX-OUT-1 and AUX-OUT-2.

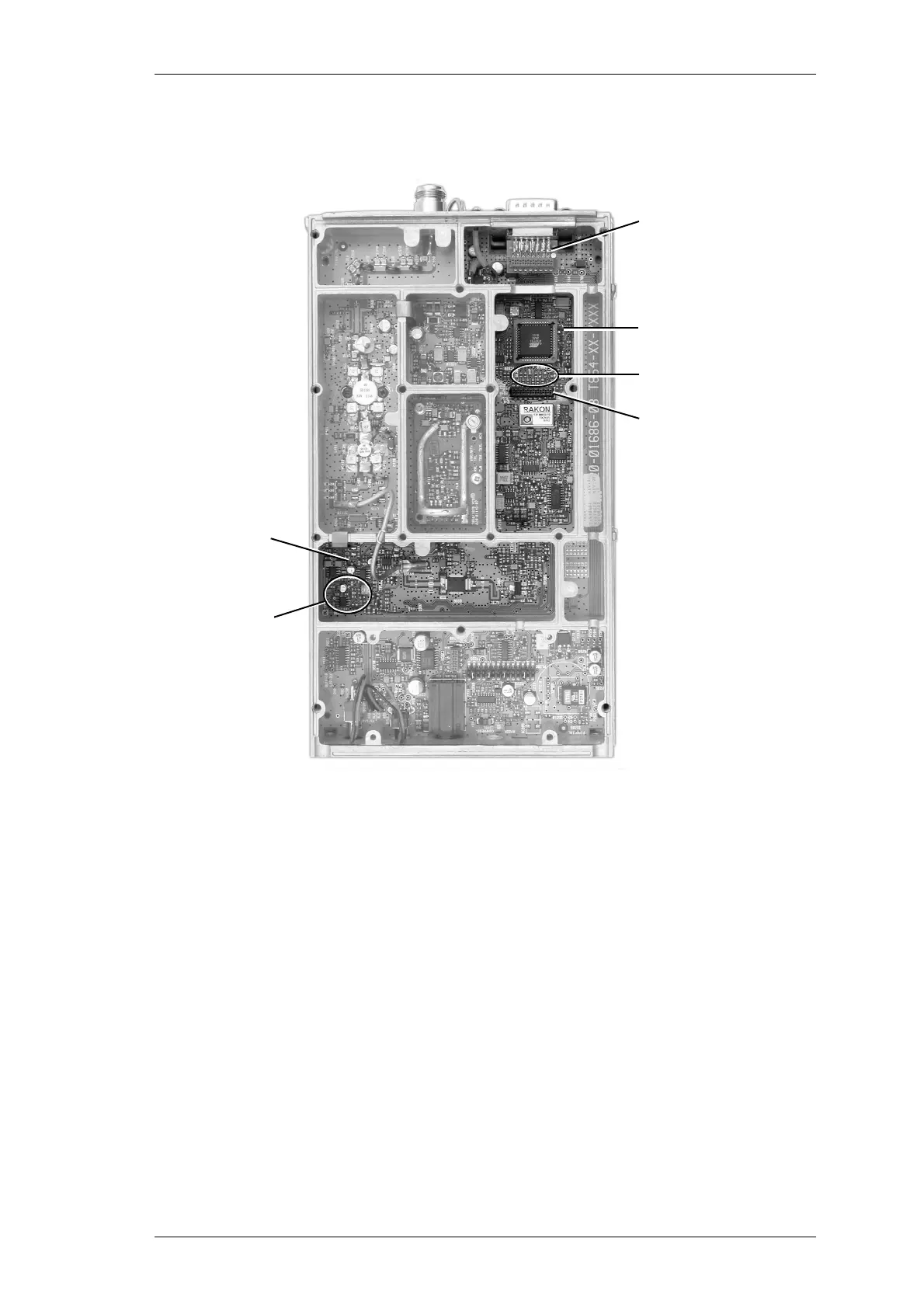

Auxiliary
D-range
board
Microcontroller
cavity
Exciter
cavity
SK805
See step 3A
See
step 3B
To Next Page
