D3.4 Installation and Configuration M8SL2-00-002-812
© Copyright Tait Electronics Limited August 2004. All rights reserved.
Note: For correct power alarm operation these links should be correctly set before
power-up.

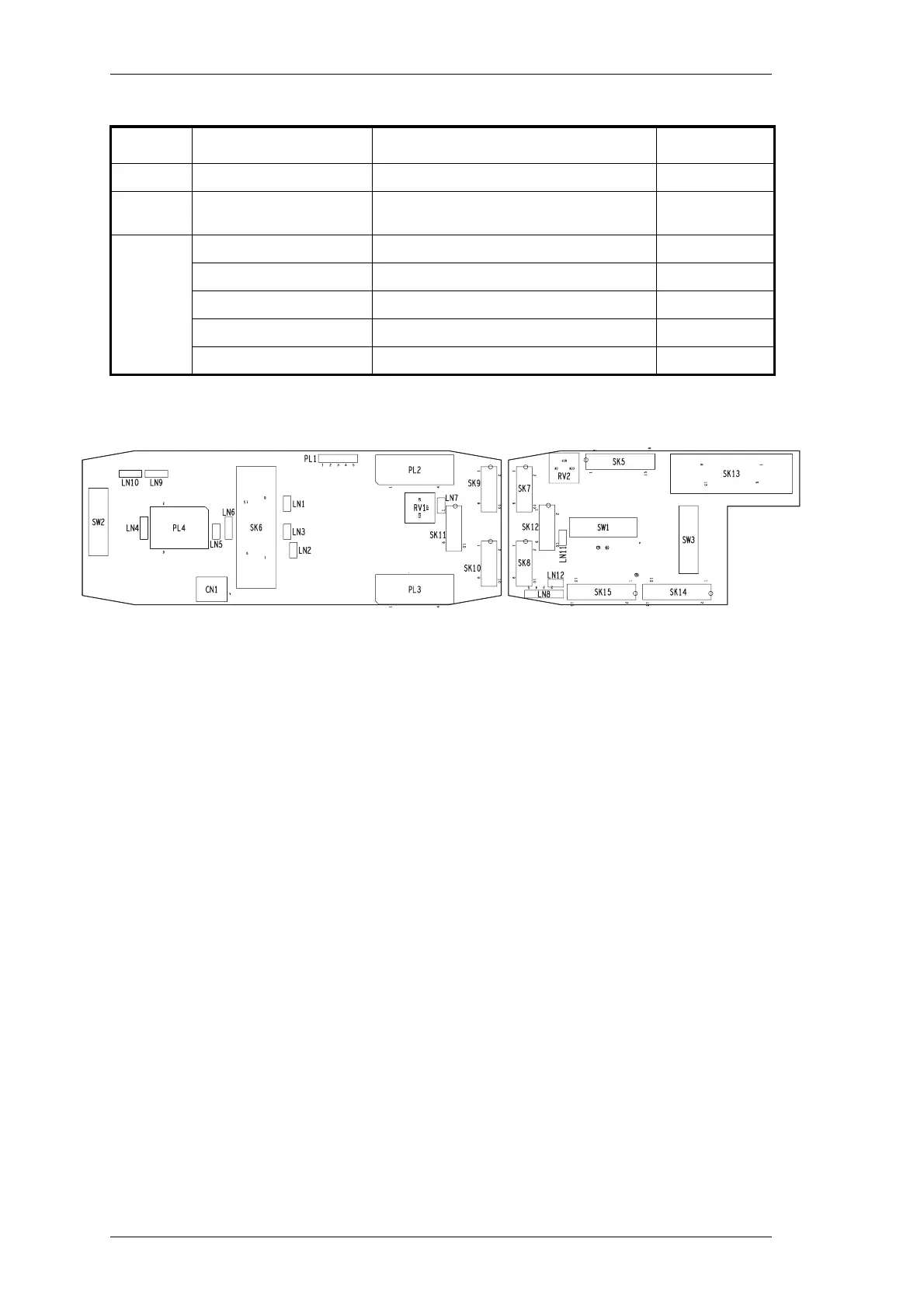

Figure 3.1 X800-56-PCB3 backplane connectors, links and switches
Switch Setting Function Notes
SW1 Set all switches to OFF Channel select via T803 and or PGM800Win
SW2 Set switch 4 and 5 to ON For Serial Comms with the Tx, Rx and T803
See LN4 settings
above
SW3
Set switch 1 to ON Rx Audio to T803 See LN8 settings
Set switch 2 and 3 to ON Balanced audio from T803 to transmitter
Set switch 4 to ON RSSI from receiver to T803
Set switch 5 to ON Tx-Key from T803
Set switch 6 to ON Rx-Gate to T803
