D3.10 Installation and Configuration M8SL2-00-002-812
© Copyright Tait Electronics Limited August 2004. All rights reserved.

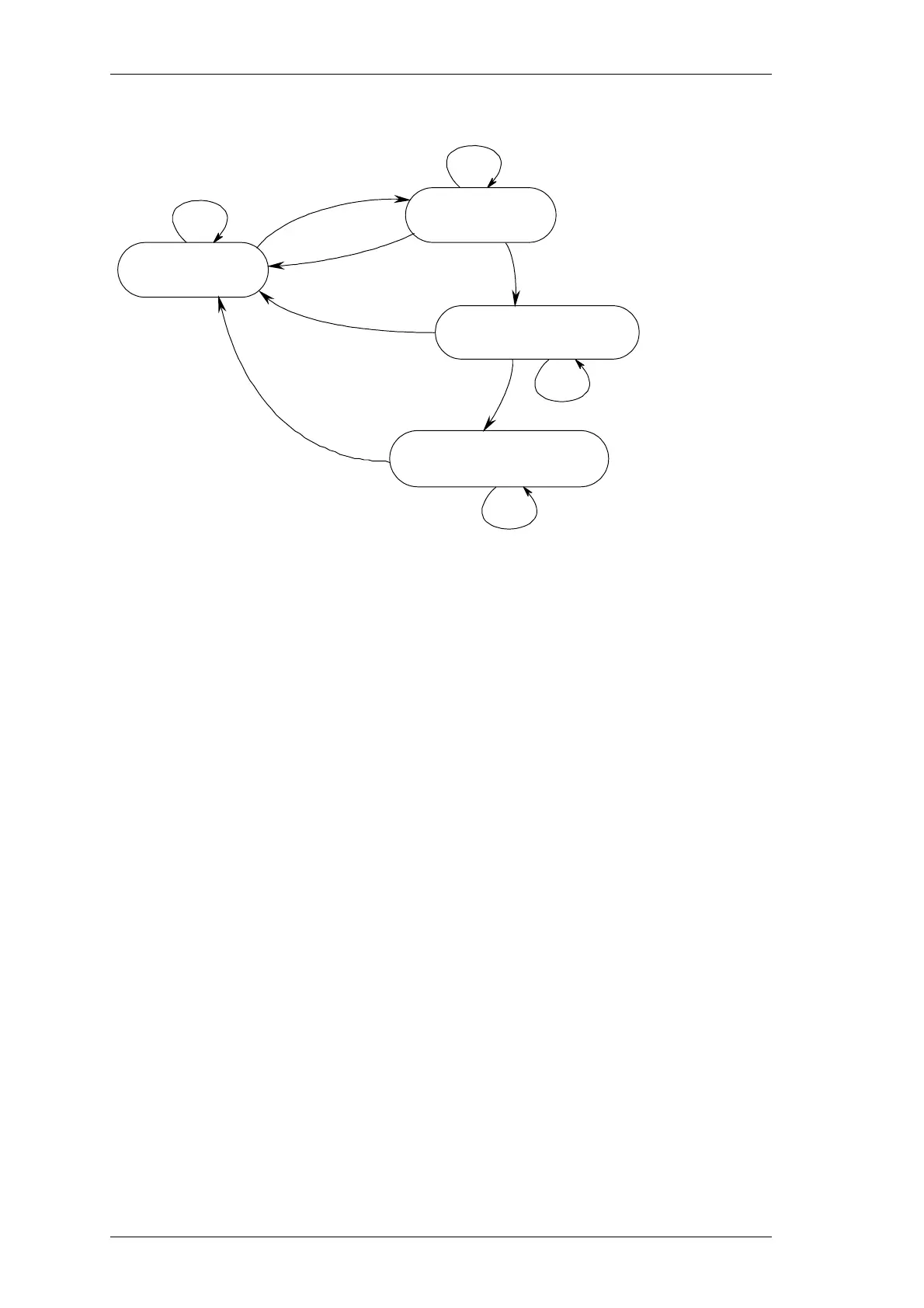

Figure 3.4 Cycle of switching between the modes
3.2.4 Level Configuration
Before proceeding with any level configuration the transmitter and receiver must be
run-up and configured for the application. Also, ensure that the equipment has been set
up correctly as indicated in Section 3.2.1. It is important that the T800 Transmitter out-
put is connected to the Test Set (through an attenuator as required) because it will often
be keyed during these level setting procedures.
The following levels need to be set:
• Tx Audio – Audio level from T803 to transmitter (balanced)
• Line-In level
• Rx Audio – Audio level from receiver to T803 (unbalanced)
• Line-Out level
The only consideration of order is that the Tx Audio level needs to be configured before
the Line-In level can be done.
Normal
Operating
Mode
Time out (1 min)
Monitor & Mode pressed
or time out (1 min)
Monitor & Mode pressed simultaneously
Monitor = Monitor On/Off
Mode = Base Station/Repeater
Monitor = Monitor On/Off
Mode = Base station/Repeater
Monitor & Mode
held (3 sec)
Test Tone
(Flashing LED’s)
Line-In Level Configuration
(Green LED = Keytone,
Red LED = No keytone)
Monitor = Increase level
Mode = Decrease level
Line-Out Level Configuration
(LED = Orange)
Monitor = Increase level
Mode = Decrease level
Time out (1 min)
Monitor & Mode pressed simultaneously (v2.07+)
