Takagi T-K3 Service Manual

T-K3 Service Manual
Ver. 1.05
4
CONFI DENTIAL

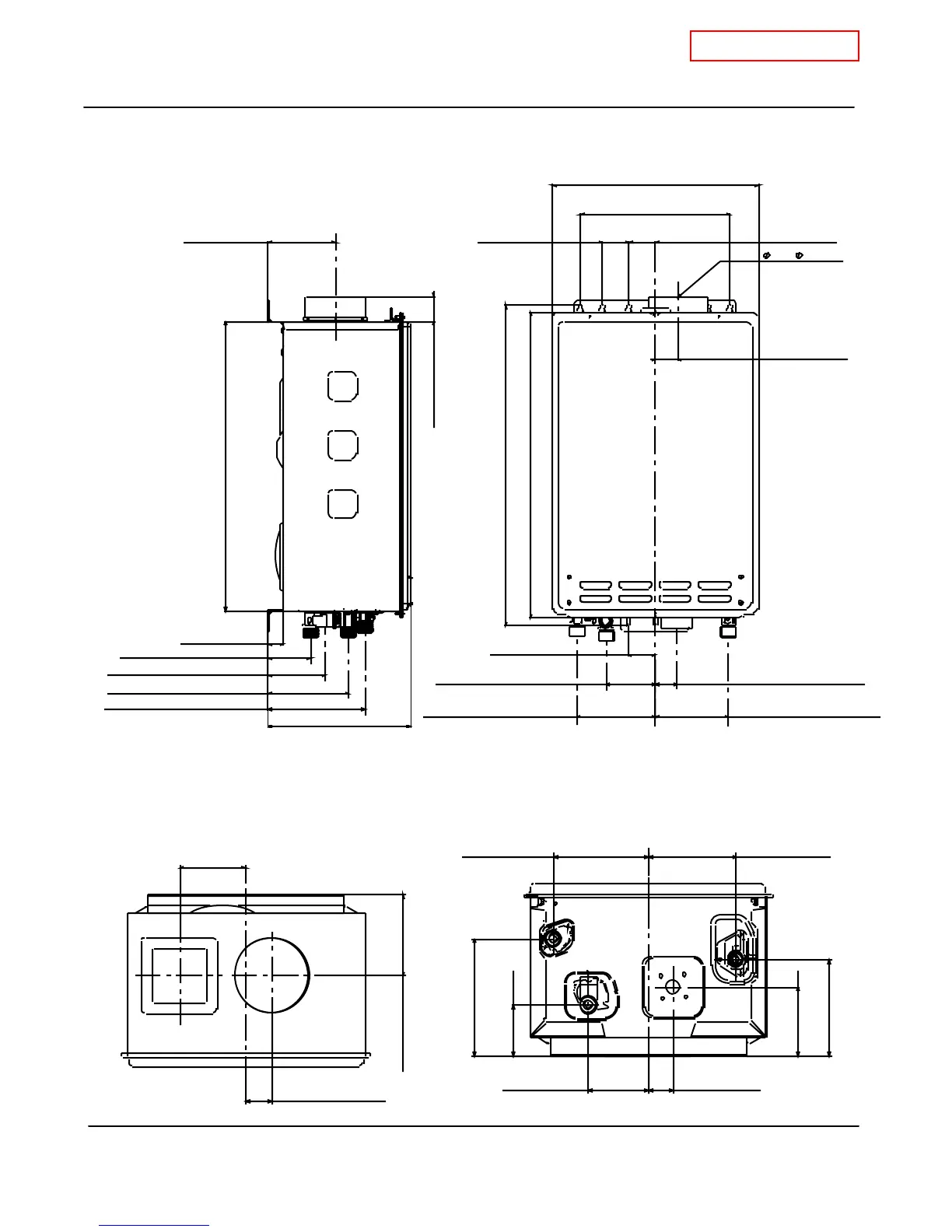

2. Exterior view
Top view Bottom view
Side view
Front view
5-1/4"(132.9mm) 4-7/ 8"(124 .3mm)
3-1 /4"(84 mm)
5-3/ 8"(13 6.1mm)
2 -3/4"( 72mm)
6-1/2 "(164.4mm)
3-3 /4"(96 .5mm)
1-3/8"(36mm)
1-1/ 2"(37.8mm)
3-5/ 8"(93.3mm)
4- 1/2"( 114.2m m)
20-1/4"(520m m)
13-3/4"(350mm)
1-1/2"(37.8mm)
1-3/4(45mm)1-3/4"(45mm)
10"(254mm)
21-3/8"(544mm )
4"( 101.6mm)
1-3/8"(36mm) 120V
4-7/8"(124.3mm) GAS
1-7/8"(47mm)
3-1/4"(84mm) COLD
5-1/4"(132.9mm) HOT
4-1/2"(114.2mm)
19-3/8"(492.7mm)
1"(26.3mm)
2-3/4"(72mm) COL D
3-3/4"(96.5mm) 120V
5-3/8"(136.1mm) GAS
6-1/2"(164.4mm) HOT
9-1/2"(241.3mm)
1-5/8"(42.5mm)

Takagi T-K3 Specifications

General

Type	Tankless
Installation Type	Indoor
Maximum BTU Input	199, 000 BTU/h
Gas Connection Size	3/4"
Vent Size	3"
Hot Water Flow Rate (at 35°C rise)	6.6 GPM
Maximum Input	199, 000 BTU/h
