Takagi T-K3 Service Manual

T-K3 Service Manual
Ver. 1.05
5
CONFI DENTIAL

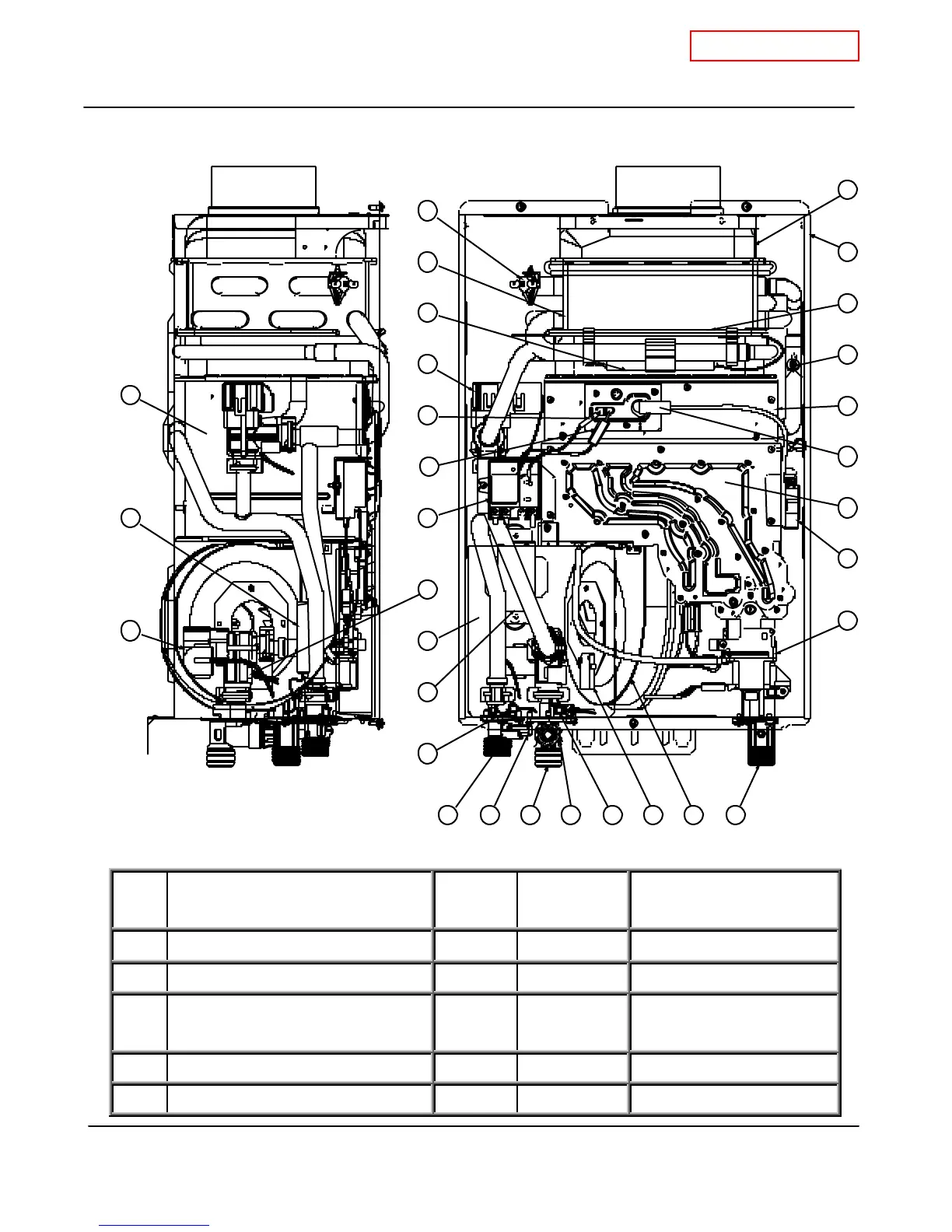

3. Interior view
4. List of main components in t he interior view
No. Des c r iption
T- K 3
Par t #
Ta k a g i
Par t #
Common parts
For other units
1 Case assembly 001 EKK1D SP
2 Combustion chamber 102 EKK1Y SP
3
Gas valve w ith Proportional
valve
105 EKK1W OS, SP
4 Computer board 701 EKK1L
5 Igniter 704 EKN74 TKJr, TK1S, TH1, OS, SP
1
2
3
4
5
6
78
9
10
11
12
13
1516
17
18
19
20
21
21
22
23
24
25
14
27
28
29
30
26

Takagi T-K3 Specifications

General

Type	Tankless
Installation Type	Indoor
Maximum BTU Input	199, 000 BTU/h
Gas Connection Size	3/4"
Vent Size	3"
Hot Water Flow Rate (at 35°C rise)	6.6 GPM
Maximum Input	199, 000 BTU/h
