12-1. (B) Diagnosing t he T-K3 using t he TM-RE30
< For a single T-K3 >
1. Press the "HOT" button and the "COLD" button
simultaneously for at least 5 seconds to enter “Diagnostic
mod e” .
2. Scroll up or dow n to the needed information (mode #) of the
T-K3 by pressing the “
HOT” or “COLD” buttons (Fig.1 shows
mode #5 being selected.)
When selecting information, please refer to the table on
p. 44 for the proper m ode #.
3. Press the “INFO” button to select the mode #, and the
information to w hich the mode # correlates to w ill display on
the TM- RE30 ( Fig.2).
4. When the “ON/OFF” button is pressed or 5 minutes have
elapsed w ithout pressing any buttons, the display w ill return
to normal.

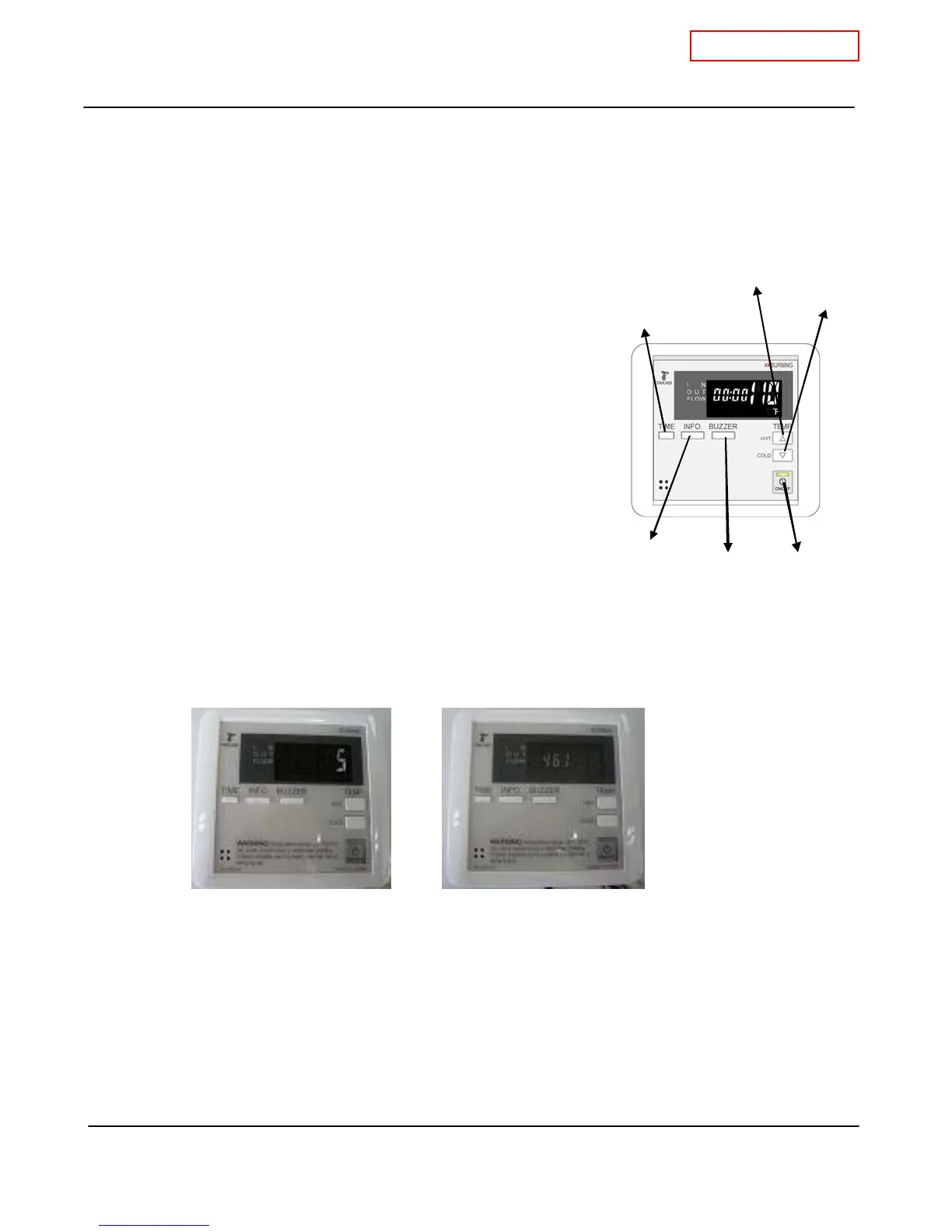

“TIME”
Button
“HOT”
Button
“ON/OFF”
Button
“COLD”
Button
“INFO”
Button
“ BUZ ZER”
Button
Fig.1 Fig.2
