T-K3 Service Manual
Ver. 1.05
43
CONFI DENTIAL
< For mult iple T-K3’s in an Easy-Link multi-unit system >
1. Press and hold the " HOT" and "COLD" buttons simultaneously for at least 5 seconds to enter
“Diagnostics Mode”.

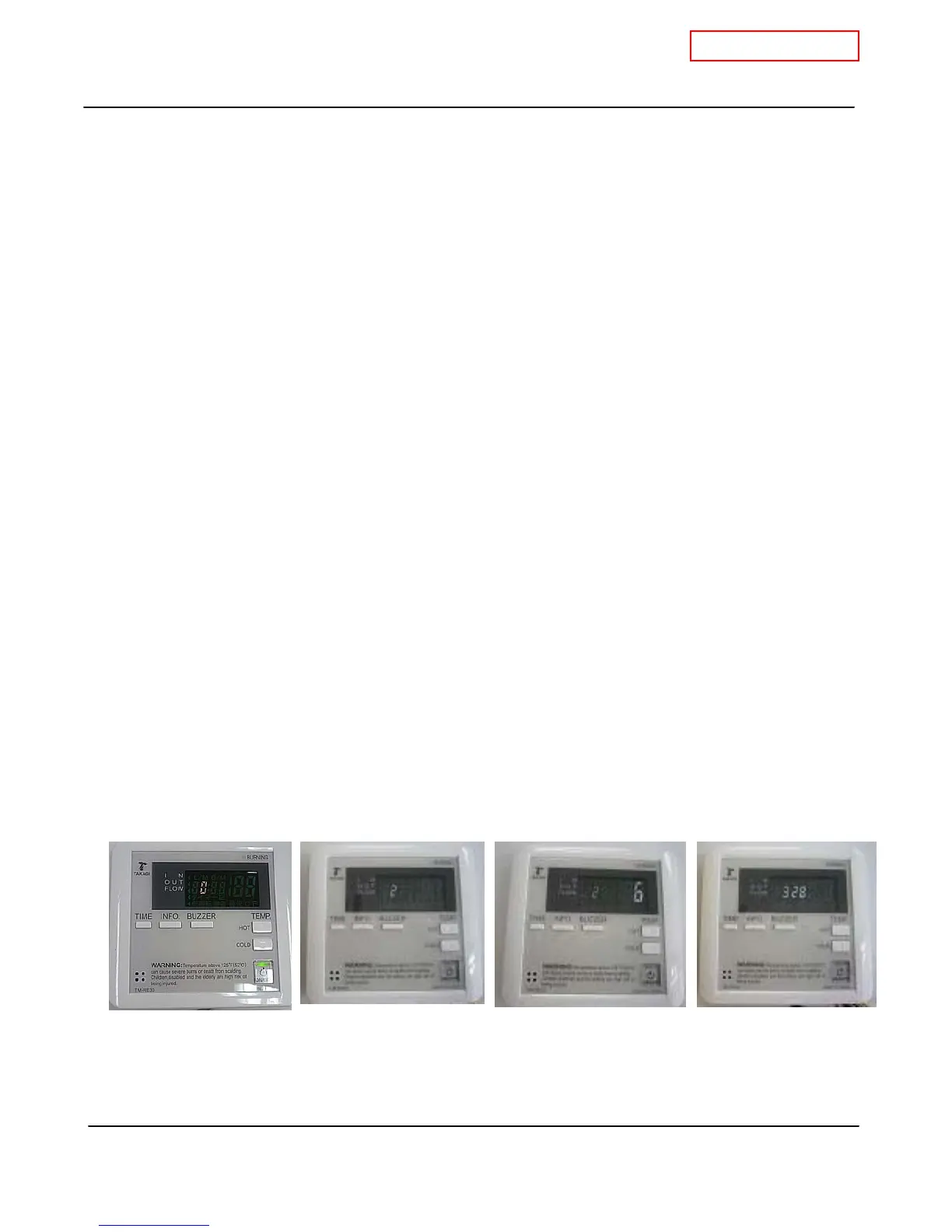

2. "0" w ill be displayed on the TM-RE30. (See Fig. 1)
3. Scroll to the desired T-K3 unit # in the easy-link system by pressing the "
HOT" or the "COLD"
buttons to scroll up or dow n. (Fig. 2 show s that unit #2 is being selecting)
NOTE:
The definition of the unit #’s:
“0” w ill yield inf ormat ion about the Easy-link system as a whole, and
numbers “1”, “2”, “3”, & ”4” w ill yield information about each of the individual
T-K3’s installed in the Easy-link system.
In an Easy-link system of T-K3’s, a maximum of 4 T-K3’s can be linked
together.
4. Press the “
INFO” button to select the desired unit #.
5. When the desired unit # is selected and fixed, scroll up or dow n to the needed information
(mode #) of the unit by pressing the “
HOT” or “COLD” buttons.
(Fig.3 show s mode #6 is being selected.)
When selecting inform ation, please refer to the
table on the next page for the proper mode #.
6. Press the “
INFO” button to select the mode #, and information to w hich the mode # correlates
to w ill display on the TM- RE30. ( Fig. 4)
7. When the “
ON/OFF” button is pressed or 5 minutes have elapsed w ithout pressing any buttons,
the display w ill return to normal.
Fig.1
Fig.3
Fig.4
Fig.1
Fig.2
To Next Page
