Takeuchi TB108 User Manual

36
CONTROLS

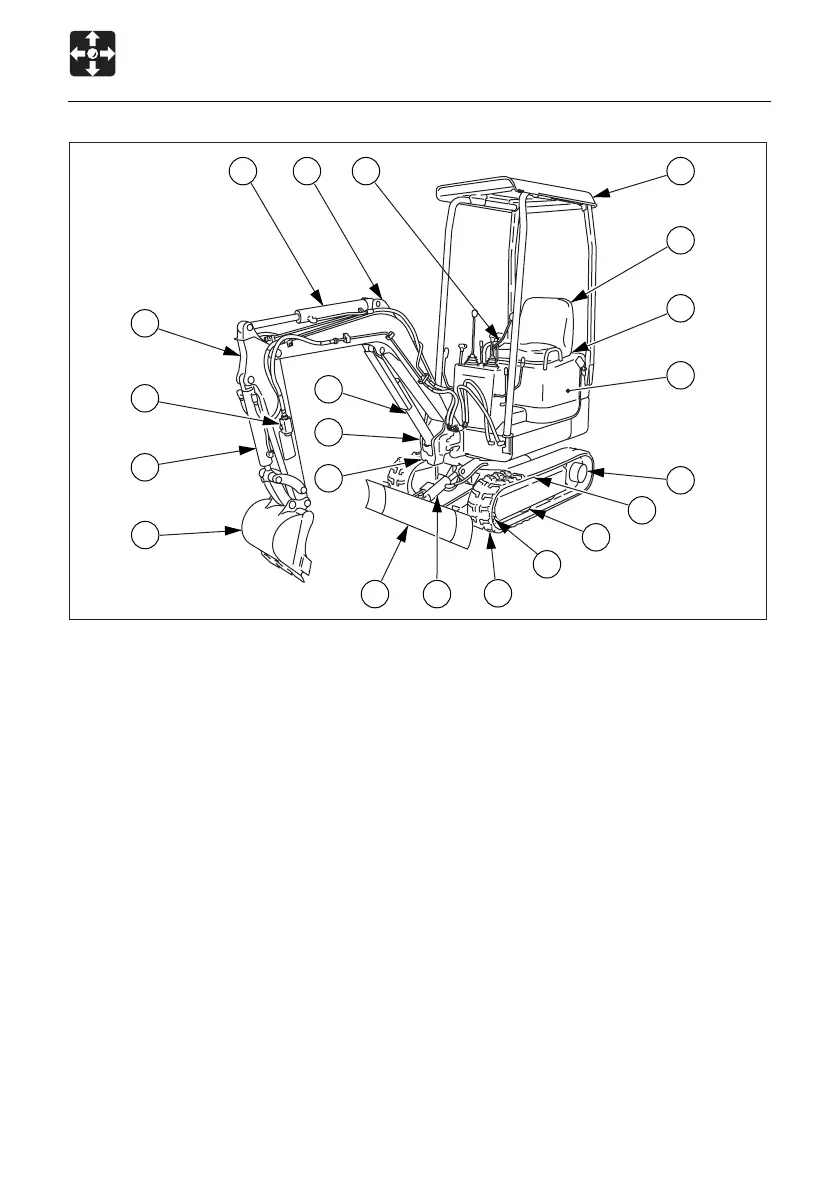

Names of Components
Upperstructure
1. Canopy
2. Seat
3. Engine hood
4. Fuel tank
5. Hydraulic tank
Undercarriage
6. Crawler belt
7. Idler
8. Track roller
9. Shoe slide
10. Travel motor
Working equipment
11. Bucket
12. Bucket cylinder
13. Arm
14. Arm cylinder
15. Boom
16. Boom cylinder
17. Boom bracket
18. Swing cylinder
19. Auxiliary hydraulic line
20. Dozer blade
21. Blade cylinder
B5B001
1
10
16
13
1514
19
12
18
17
11
2
3
4
5
9
8
7
6
20 21

Takeuchi TB108 Specifications

General

Max Reach	3, 480 mm
Width	980 mm
Max Reach at Ground Level	3, 480 mm
Transport Width	980 mm
Engine Power	8.1 kW (10.9 hp)
Engine Gross Power	8.1 kW (10.9 hp)
