Takeuchi TB108 User Manual

41

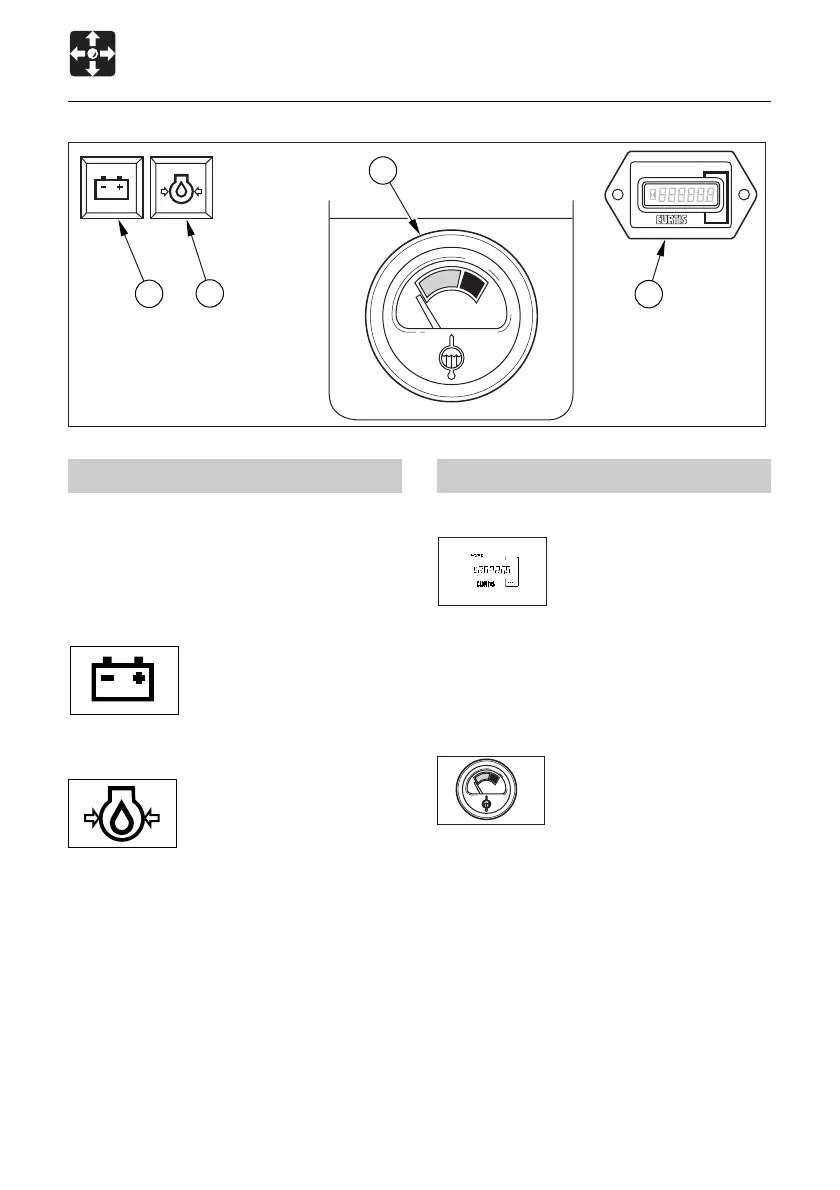

CONTROLS
Instruments
Warning Lamps
IMPORTANT: If a warning lamp lights,
stop all operations immediately and
inspect and maintain the appropriate part.
Refer to page 131 “Troubleshooting”.
1. Battery Charge Warning Lamp
This lamp lights if a problem
arises in the charging
system while the engine is
running.
2. Engine Oil Pressure Warning Lamp
This lamp lights if the
lubricant oil pressure drops
abnormally while the engine
is running.
Meters
3. Hour Meter
This displays the total
engine running time in
hours.
The rightmost digit indicates
tenths of hours (6 minutes).
Set the inspection and maintenance intervals
according to the time displayed on the hour
meter.
4. Water Temperature Gauge
This indicates the
temperature of the engine
coolant.
The needle should be within
the green range during machine operation.
The red range indicates overheating.
HOURS
1/10
°C
1
2
3
4
B5B0061
C4B030
C4B031
C4B016
°C
B5B007

Takeuchi TB108 Specifications

General

Max Reach	3, 480 mm
Width	980 mm
Max Reach at Ground Level	3, 480 mm
Transport Width	980 mm
Engine Power	8.1 kW (10.9 hp)
Engine Gross Power	8.1 kW (10.9 hp)
