Takeuchi TB108 User Manual

57
OPERATION
Machine Operation

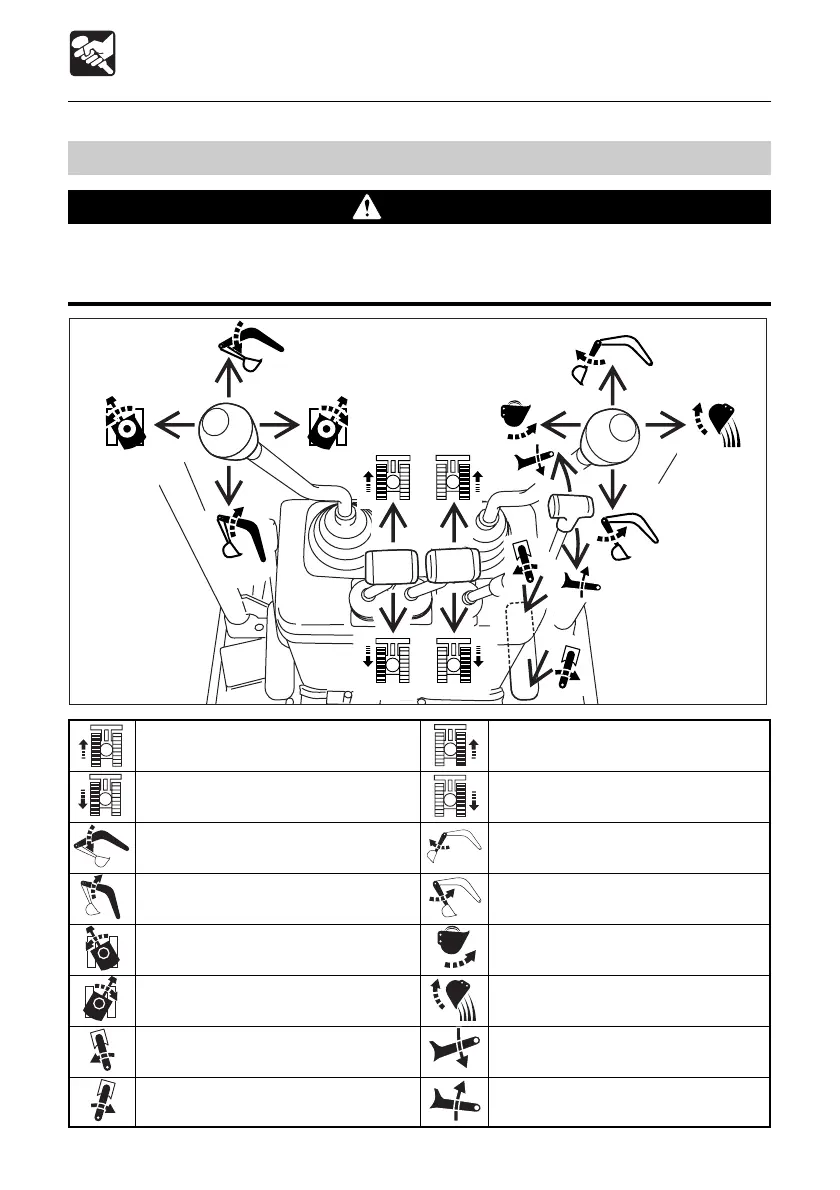

Lever Pattern (JCB Pattern)
WARNING
¡¡
¡¡
¡Be careful to check which pattern of lever control arrangement you are operating
with before beginning operations.
¡¡
¡¡
¡The explanations in this manual are for the ISO pattern.
Left Crawler Forward
Left Crawler Reverse
Boom Lower
Boom Raise
Upperstructure Slew Left
Upperstructure Slew Right
Boom Swing Left
Boom Swing Right
Right Crawler Forward
Right Crawler Reverse
Arm Out
Arm In
Bucket Load
Bucket Dump
Dozer Blade Lower
Dozer Blade Raise
B5D016
〈〈
〈〈
〈JCB
〉〉
〉〉
〉

Takeuchi TB108 Specifications

General

Max Reach	3, 480 mm
Width	980 mm
Max Reach at Ground Level	3, 480 mm
Transport Width	980 mm
Engine Power	8.1 kW (10.9 hp)
Engine Gross Power	8.1 kW (10.9 hp)
