Taylor PH71 - Beater Door Assembly - PH84

9
Models PH71/PH84 Operator Parts Identification

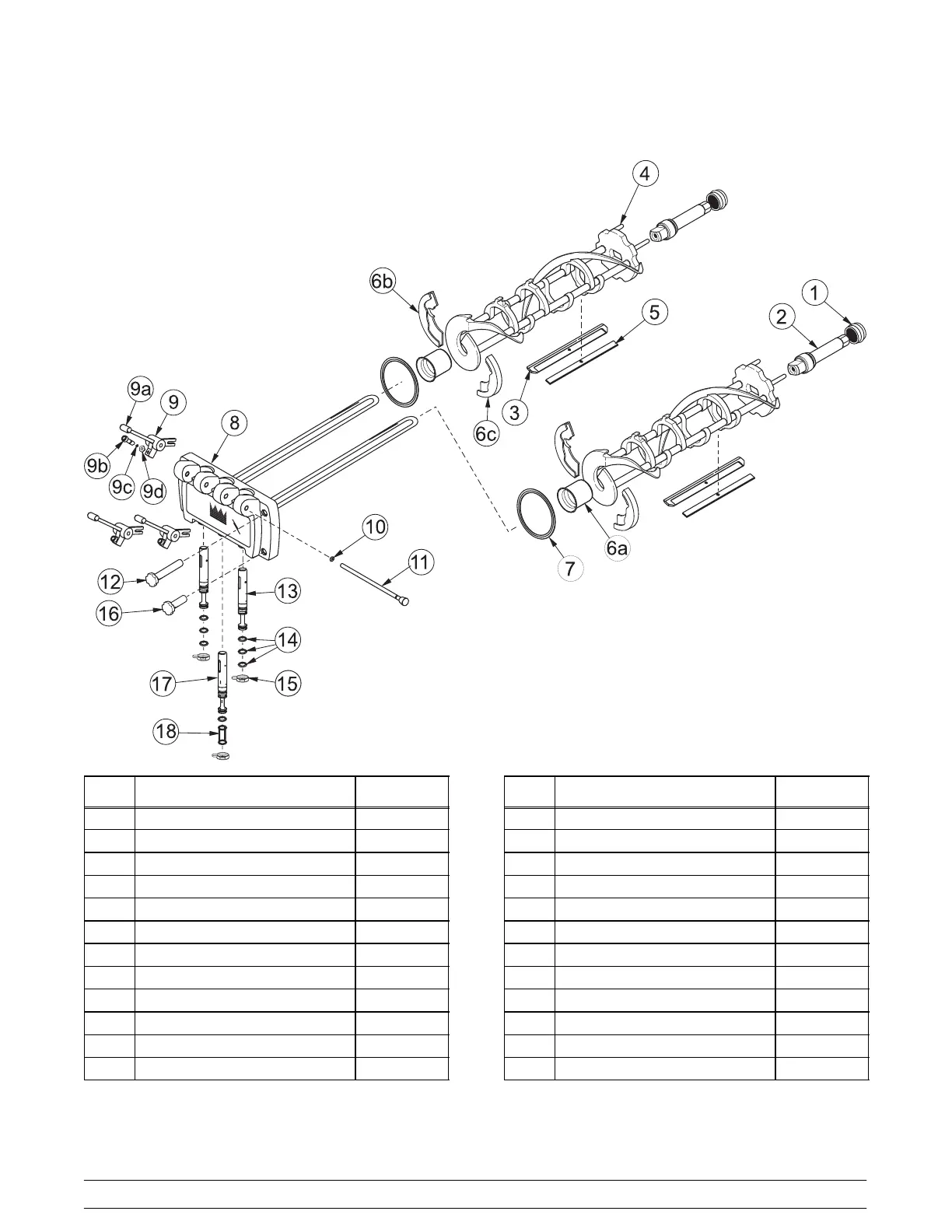

Beater Door Assembly -- PH84
ITEM DESCRIPTION PART NO.
1 SEAL -DRIVE SHAFT 032560
2 SHAFT -BEATER 032564
3 BLADE-SCRAPER 046235
4 BEATER ASSEMBLY X46231
5 CLIP-SCRAPER·BLADE 046236
*6a BEARING-FRONT 050348
6b SHOE--FRONT HELIX --REAR 050346
6c SHOE--FRONT HELIX --FRONT 050347
7 GASKET -DOOR HT 4”-DOUBLE 048926
8 DOOR-3 SPT X51532-11
9 HANDLE A.-DRAW-ADJ. STLS X33687
9a HANDLE-ADJUSTABLE 028804
ITEM DESCRIPTION PART NO.
9b SCREW-ADJUSTMENT -5/16-24 033662
9c O-RING-1/4 OD X .070W 50 015872
9d NUT-JAM 5/16 -24 029639 -BLK
10 O-RING-5/16 OD X .070W 016272
11 ROD A.-PIVOT X20683
12 NUT-STUD LONG 034382
13 VALVE A.-DRAW*SELF CLEAN X33582
14 O-RING-7/8 OD X .103W 014402
15 CAP-DESIGN-1.010”ID-6 POINT 014218
16 NUT-STUD SHORT 034383
17 VALVE A.-DRAW CENTER X37376
18 SEAL-DRAW VALVE 034698
*USED W/FRONT HELIX SHOES 050346 & 050347
(KIT X50350)
