6. Install the hopper assemblies into the cabinet by
sliding them onto the hopper supports. Do not force
the drum onto the shaft. Rotate the drum in the
hopper until the square opening meshes with the
drum motor shaft, then slide the hopper assembly
backward until it drops into place.
When the accumulator housings and hopper
assemblies are in place, close the cabinet door.

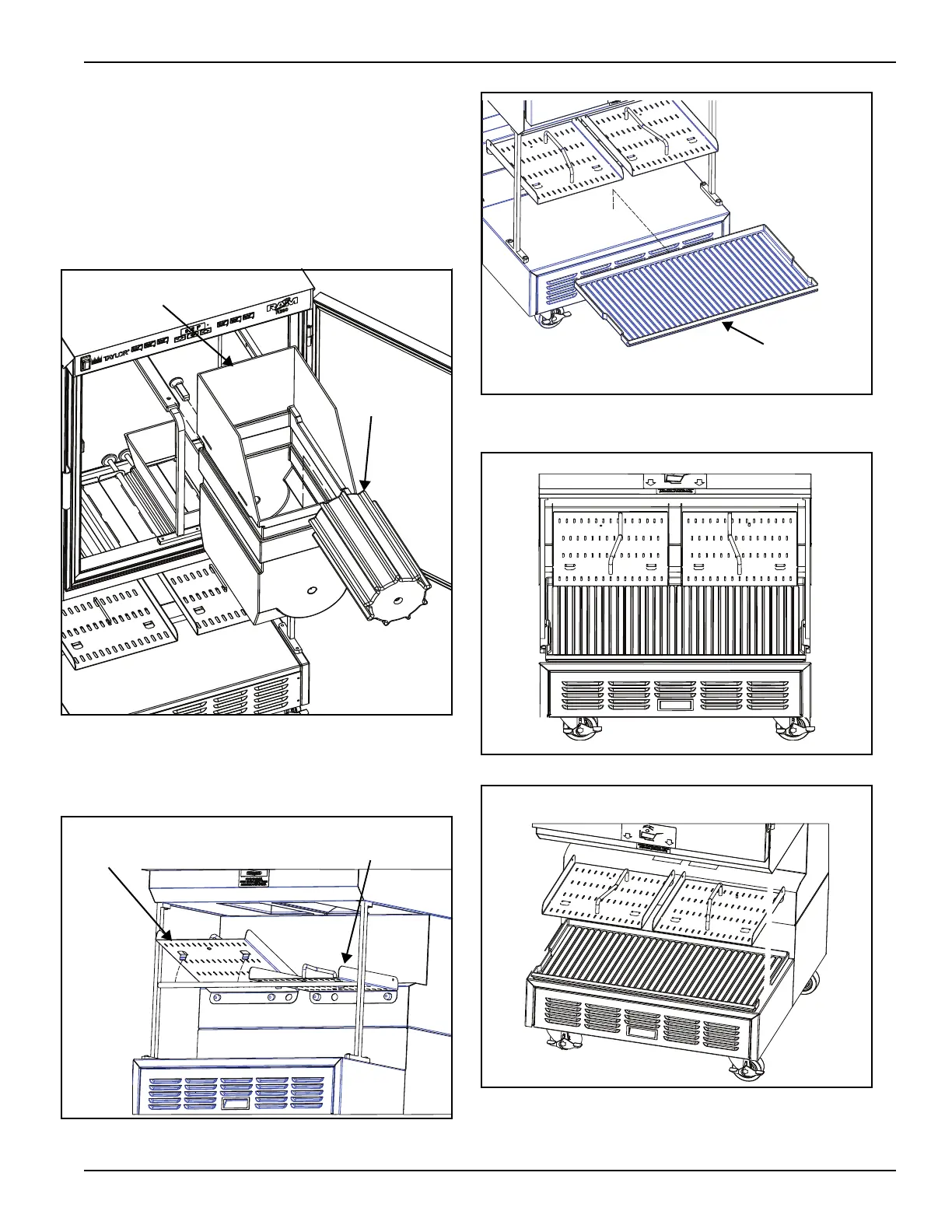

Figure-7 : Drum and Hopper Assembly
7. Assemble basket tray and drip tray to lower
dispensing area. Basket trays are not universal to the
left and right positions.
Figure-8 : Basket Tray Assembly
Figure-9 : Drip Tray Assembly
Installing the Basket Trays
Figure-10
Figure-11
Hopper
DrumDrum
Left Basket
Tray
Right Basket
Tray
Drip Tray
