38
Model R280

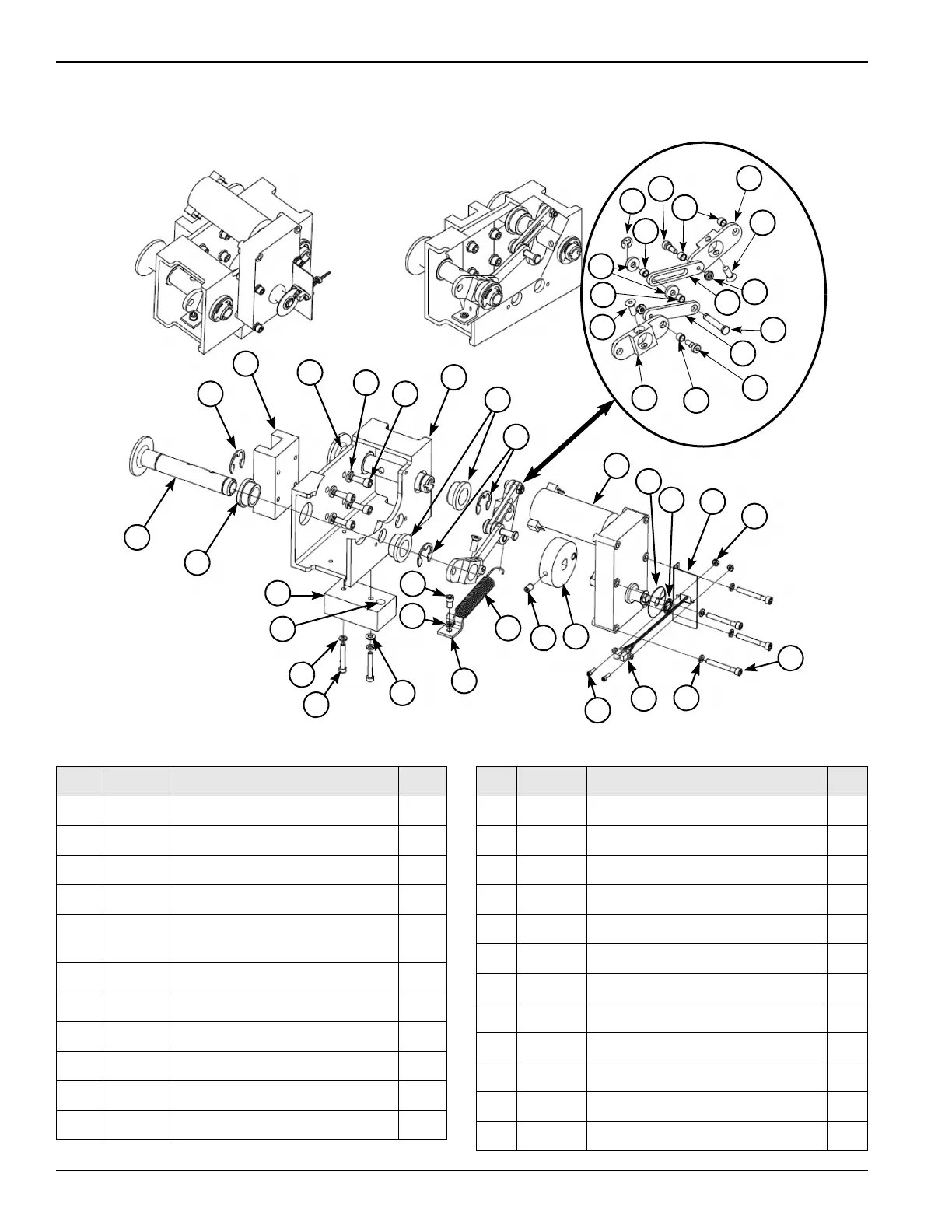

Weighing System Assembly
(Before Serial Numbers LONR and 28PR)
Figure-23
35
23
17
20
17
15
16
34
18
22
19
20
17
15
16
17
2
7
3
4
6
26
25
8
5
21
24
31
25
32
33
28
29
25
30
27
14
13
9
12
11
1
10
14
1
13
Item Part No. Description Qty.
1 293322 Weldment, Arm Support 2
2 294009 Kit Acc Motor Includes item 3 and 7 1
3 290525 Retaining Ring, Self-Locking, 3/8” 1
4 290504 Bracket Mount, Home Sensor 1
5 058317 Screw, Socket Head Cap, Black
Oxide, 4-40 x 3/8 In
2
6 038623 Nut Hex Zinc Plated 18-8 SS, 4-40 2
7 293328 Encoder Disk 1
8 293876 Accumulator Home Sensor 1
9 293146 Extrusion, Accumulator Housing 1
10 202068 Assembly, Linear Bearing 180mm 1
11 018954 Washer-1/4 Med Split Lock 18-8 SS 4
Item Part No. Description Qty.
12 203097 Screw, Socket HD, M6x1x16mm 4
13 290517 Flange Bearing 3/4” ID x 1” OD x 1/2” 4
14 290531 Retaining Ring, E-Style, 1/2” 4
15 293154 Accumulator Toggle 2
16 213549 Screw Socket Flat-Head 1/4”-20x5/8” 2
17 203259 Bearing Sleeve 1/4”ID x5/16”OD x1/4” 5
18 293155 Link, Accumulator 1
19 293323 Link, Accumulator, Push 1
20 290635 Screw, Shoulder, 1/4”x 1/4”, #10-24 2
21 294693 Kit, Drive Wheel 1
22 Pin, Clevis (Available in Kit 294693) 1
23 293325 Washer, Spacer, 0.25 ID x 0.12” 2
