Taylor R280 User Manual

51
Model R280

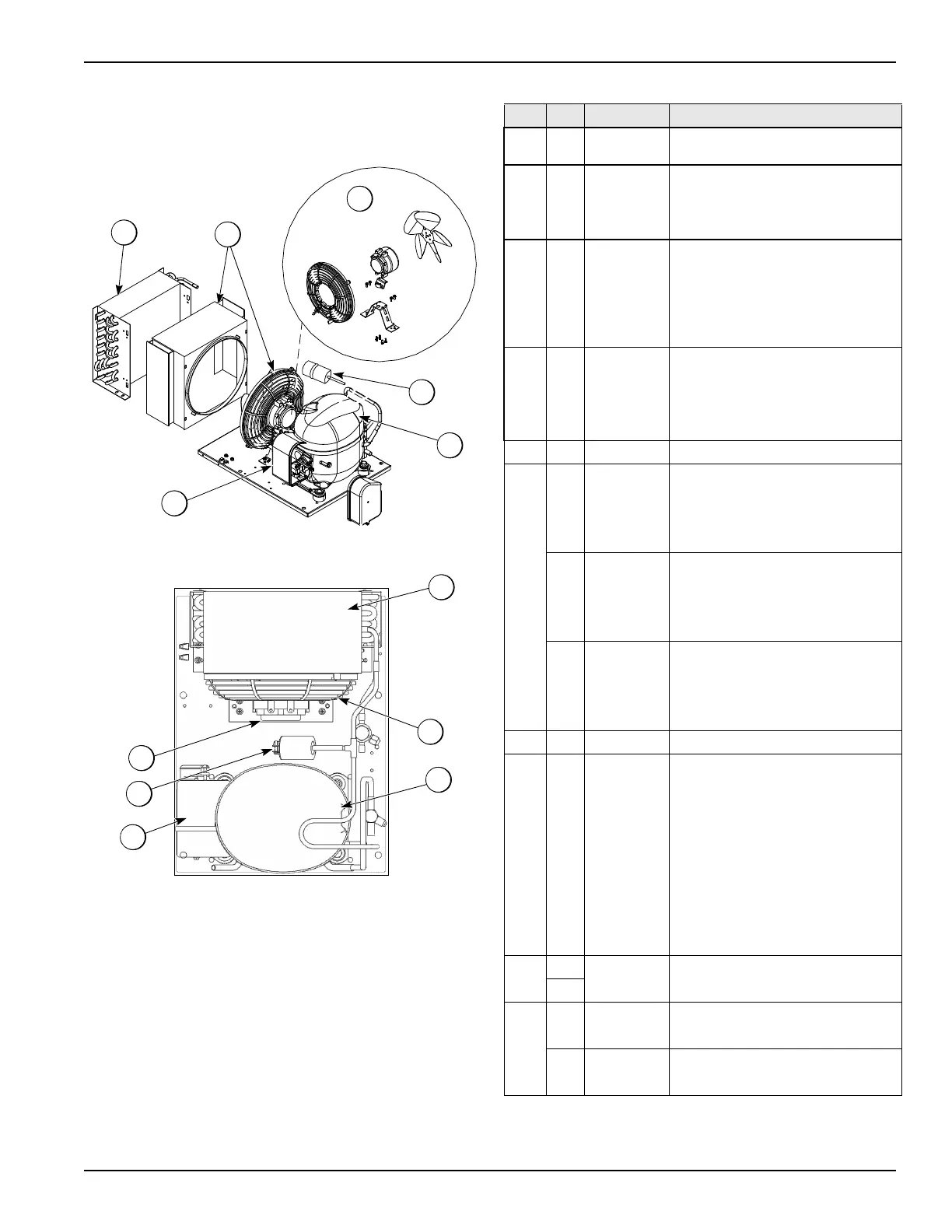

Refrigeration System Components
Figure-32
*Not Shown
1
2
4
7
3
6
Condensing Unit Assembly
1
2
3
6
5
4
Item Qty. Part No. Description
1 1 295596 Condenser
2 1 295603 Fan Shroud
1 293979 Guard, Fan
3 1 089285-12 Compressor-Embraco NEK2150GK
089285-40 Compressor-Embraco NEK2150GK
089286-40 Compressor -Embraco NEK2150U
International R290 only (240V 1/
2HP)
4 1 012768-12 Motor-Fan 9 Watt
012768-27 Motor-Fan 9 Watt
1 295601 Blade, Condenser Fan
1 293982 Bracket, Fan Mounting
5 1 292740 High Pressure Switch
6 1 294739 Overload Switch (1/2hp Dom. 120V)
294781 Overload Switch (1/2hp Int. 240V)
295666 Overload Switch, (Model R280,
R290 only) (1/2hp Int. 240V)
1 294738 Start Relay (1/2hp Dom. 120V)
294780 Start Relay (1/2hp Int. 240V)
295667 Start Relay, (Model R280, R290
only) (1/2hp Int. 240V)
1 293985 Start Capacitor (1/2hp Dom. 120V)
294779 Start Capacitor (1/2hp Int. 240V)
295665 Start Capacitor (Model R280, R290
only) (1/2hp Int. 240V)
7 1 292501 Filter Drier
* 1 089317-77 Capillary Tube 77” (196cm) 0.093”
O.D., 0.040” I.D. (Domestic 120V
60HZ, 1/2 HP Comp)
294725 Capillary Tube 108” (274cm) 0.093”
O.D., 0.040” I.D. (International 240V
50HZ, 1/2 HP Comp.)
089317-114 Capillary Tube (Model R280, R290
only) 114” (290cm) 0.093” O.D.,
0.040” I.D. (International 240V
50HZ, 1/2 HP Comp.)
* 1 293404 Terminal Block, Lower
2 290529 Nut ZP 4-40
* 1 293415-12 Wire-Heater-Door-Accum*R280*
294261 Heater Wire, Accum. (Int. 220V)
1 293734 Feedback Relay (Dom.120V)
089287-27 Relay-SPDT-15A-240V (Int. 240V)
