Model R280

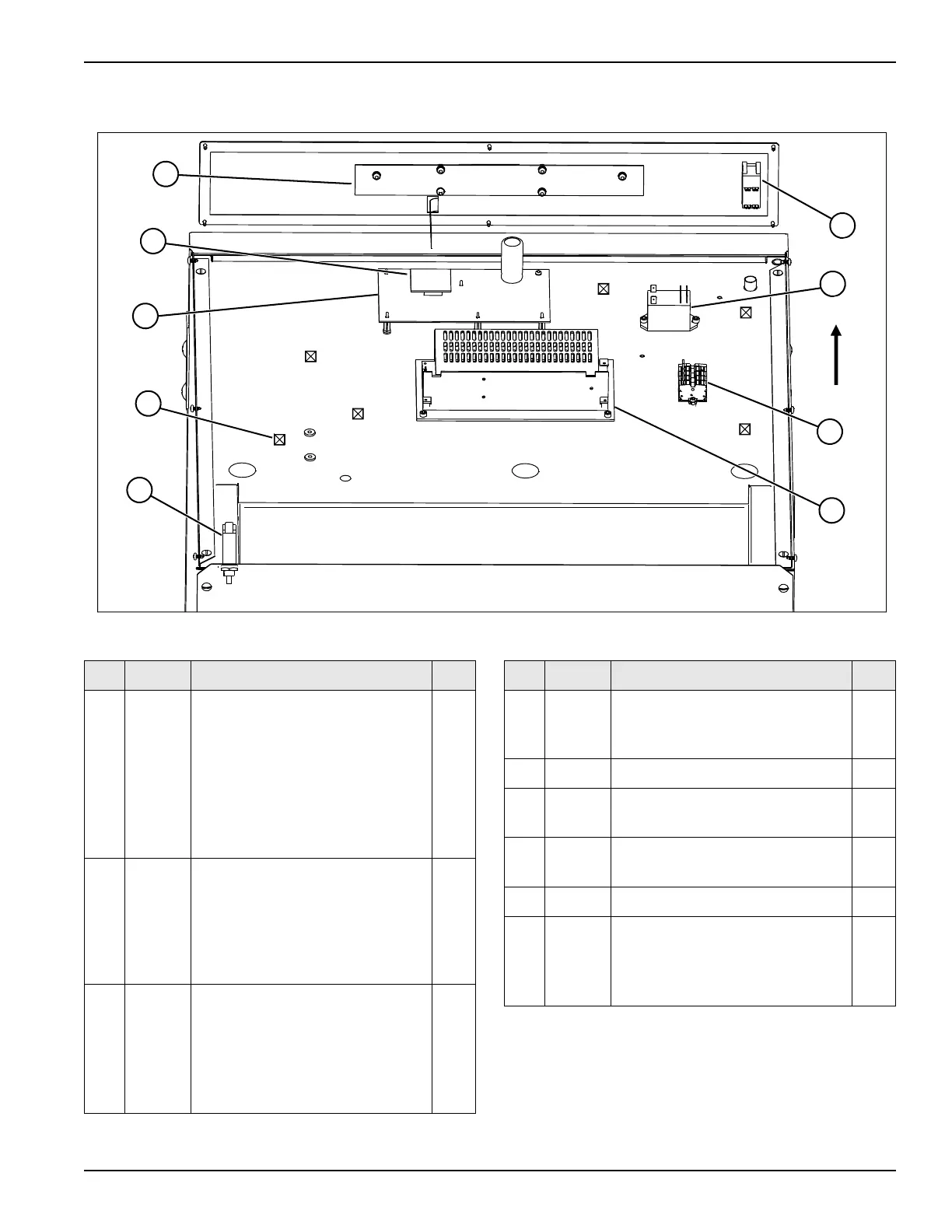

Electrical Cabinet (Top View) Revision A-E
Figure-28
1
2
3
8
9
5
6
7
4
Item Part No. Description Qty.
1 296664
296665
296666
380026
202909
202977
202795
PCB A. -R280 McD Domestic
PCB A. -R280 McD European
PCB A. -R280 Gen. Market
PCB A. -R280 Japan
Stand-Off Nylon
Stand-Off
Screw Pan HD w/washer ZP
6-32x3/8”
1
1
1
1
5
1
1
2 Processor PCB (Domestic) w/
Automatic Load Size Reduction
Processor PCB (European) w/
Automatic Load Size Reduction
Processor PCB No Automatic Load
Size Reduction
1
3 293807
293902
290876
202874
293566
PCB A. -R280 Display
Ribbon Cable
Spacer, Round, Nylon, 3/8” x #8 x 1/8”
Nut Hex w/ External Lock Washer ZP
#6-32
Flat Washer, Nylon
1
1
6
6
6
Item Part No. Description Qty.
4 380050
213262
Power Supply, Universal, Single
Output, 5.0Amp, 24VDC
Screw Socket HD Cap ZP 10-32x3/8”
1
3
5 292246 ON/OFF Switch 1
6 293405
213262
Relay
Screw Socket HD Cap ZP 10-32x3/8”
1
2
7 293401
213144
Terminal Block
Screw Socket HD Cap ZP 6-32x1/2”
1
2
8 213321 Cable Tie Adhesive Back, Nylon, 1” 8
9 293941
293944
293949
293990
Circuit Breaker, 4 Amp
Bracket
Nut, Breaker support
Screw Pan-head Phillips 4-40x1/4”
1
1
1
1
