Model R280

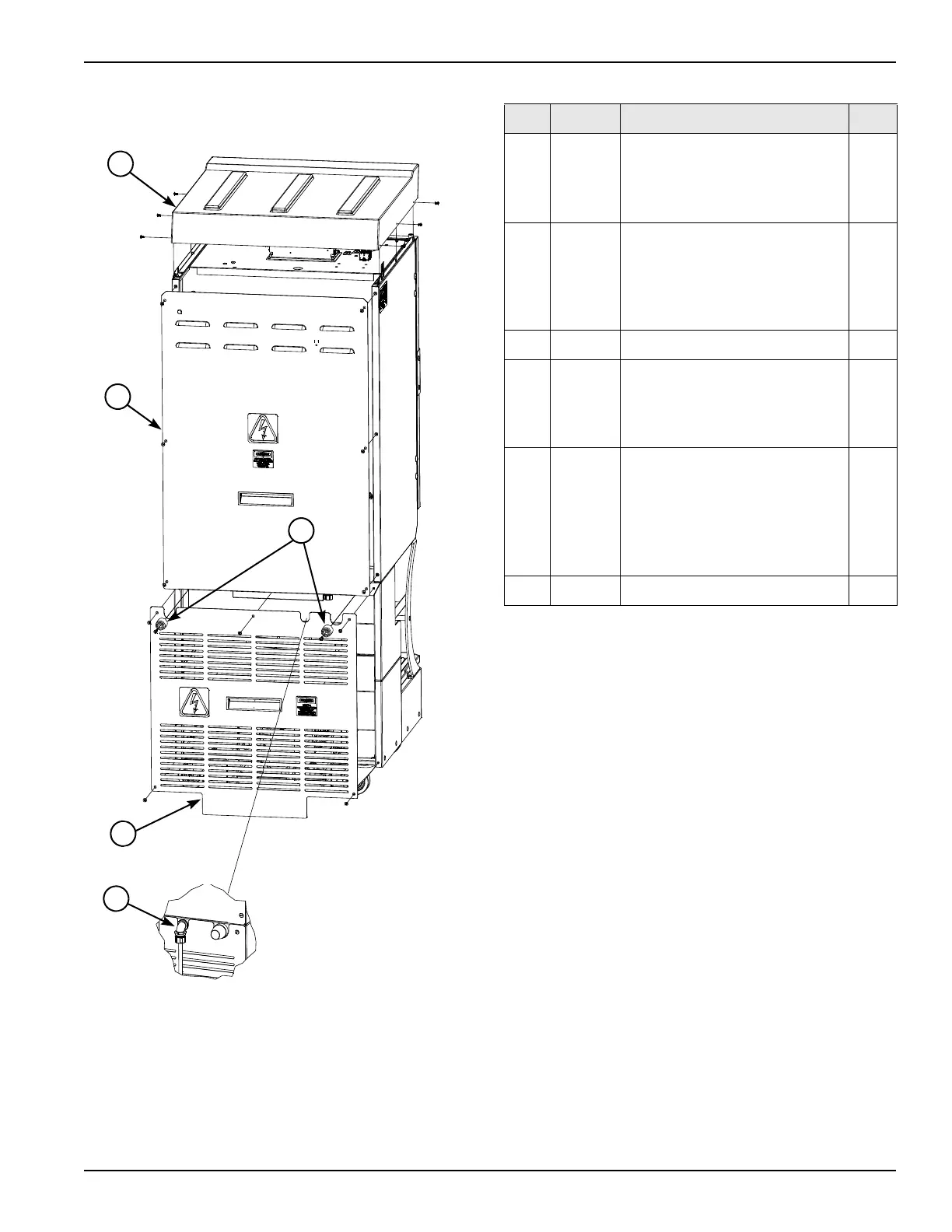

Rear View
Figure-18
*Not Shown
1
2
3
4
5
Item Part No. Description Qty.
1 293899
294092
293795
213262
Top Cover
Screw, Pan Head, Phillips 8-18x3/8”
Rail, Cover Mounting
Screw, Socket Head 10-32x3/8”
1
6
2
4
2 293272
295653
070695
Upper Back Panel
Handle, Plastic
Screw, Truss Head Machine,
Phillips, 18-8 SS, 10-32 UNF x1/2
In.
1
1
6
3 295681 Kit, Bumper, Wall (set of 2) 1
4 293225
295653
294824
Lower Back Panel
Handle, Plastic
Screw, Truss Head, Phillips,
Pelleted, 18-8 SS, 10/32x 3/8”
1
1
5
5 294098
294129
216692
213942
202586
Domestic U.S. Power Cord
International (Euro) Power Cord
Strain Relief w/ Elbow
Nut, Lock, ½” Conduit
Washer, Flat, Nylon, 7/8”x1 1/8”x1/
16”
1
1
1
1
* 294410 Label Kit 1
