36

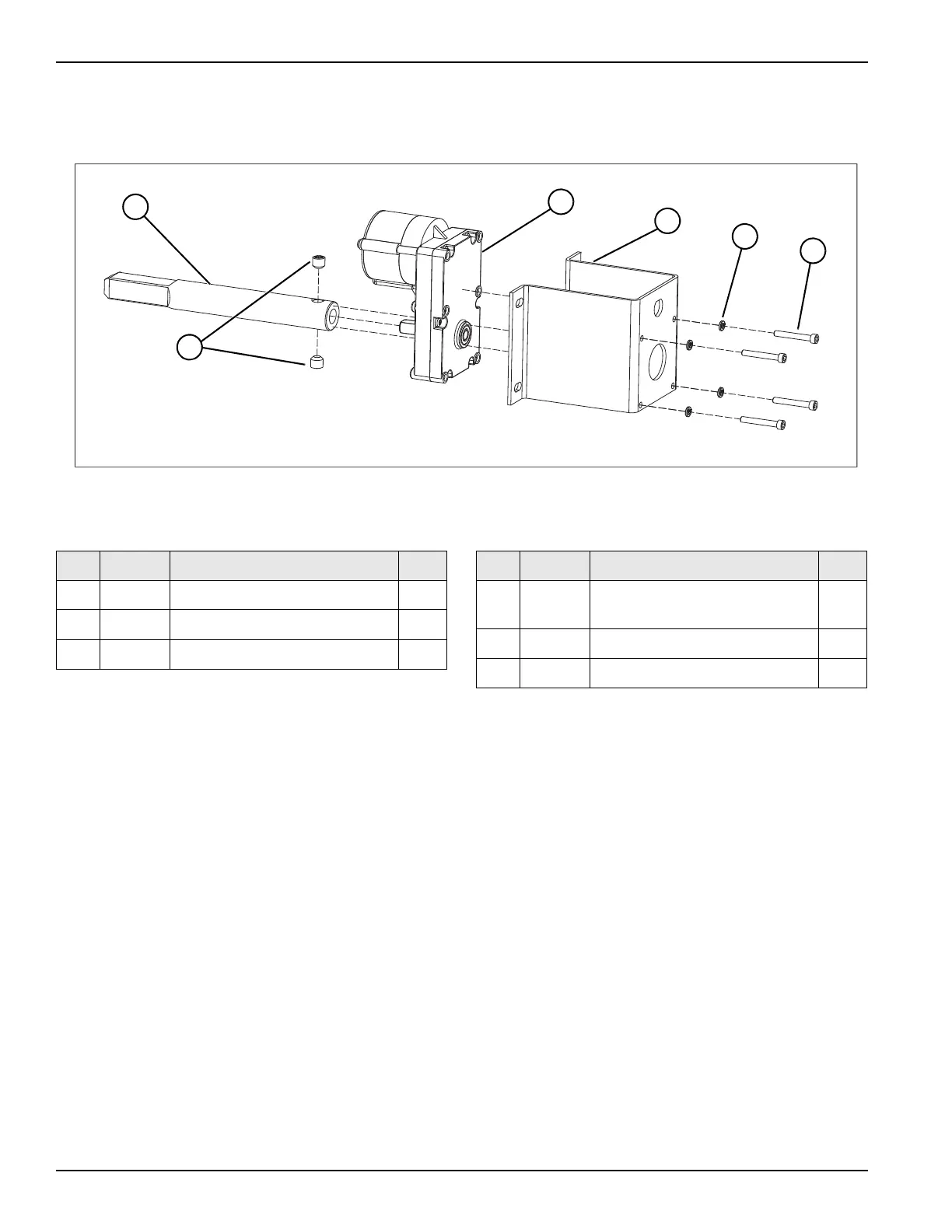

Model R280
Drum Motor
Assembly
Figure-21
4
3
2
1
6
5
Item
Part No.
Description
Qty
.
1
292250
Motor-Drum-Brushless-24V DC
1
2
202797
Bracket, Mount, Drum motor
1
3
213140
Washer
, Lock, #10
4
Item
Part No.
Description
Qty
.
4
213136
Cap Screw Socket HD
#10-32x1-1/4”
4
5
293318
Drum Sha
ft, R280
1
6
290653
Set
Screw
, 3/8”-24
x 3/8”
2
39
41
Table of Contents
Table of Contents
3
Introduction
5
Unpacking and Installation
5
Intended Use
5
Specifications
5
Electrical Requirements
5
Dimensions
5
Recommended Operating Dimensions
5
Weight
5
Hopper Capacity
5
Operating Temperature
5
Safety
6
Equipment Safety
7
Dispenser Assembly
10
Disassembly, Defrost, and Cleaning
12
Dispenser Start-Up
14
Operation
15
Loading the Hoppers
15
Daily Opening and Closing
15
Setup and Operation
15
Automatic Load Size Reduction Feature
16
Adjustable Automatic Load Size Reduction (Euro Only)
16
Daily Closing
16
Defrost Cabinet Daily
16
Last Basket/Cancel Selections
16
Error Conditions
17
Empty Hopper Warnings
17
Door Ajar Warning
17
Bypass Mode of Operation
18
User Function Menu Structure
19
Manager Function Menu Structure (U3)
21
Diagnostic Function Menu Structure (U4)
22
Error Detection
25
Troubleshooting
26
Display Is Blank
28
Using the Diagnostic Display (D10)
28
Calibrations and Adjustments
33
Scale Calibration
33
Set Manager Password
33
Target Weight Adjustment
34
Temperature Probe Calibration
34
Parts Identification
36
Front View
36
Rear View
37
Hopper Components
38
Temperature Probes and Hopper Supports
39
Drum Motor Assembly
40
Basket Sensor Assembly
41
Weighing System Assembly
42
Dispensing System Assembly
46
Electrical Cabinet (Rear View) Revision F
48
Electrical Cabinet (Top View) Revision A-E
49
Wiring Harnesses (Not Pictured)
50
Controller Board
51
Display Board
52
Refrigeration System
53
General Operation
53
Defrost
53
Required Maintenance
53
Cleaning the Condenser Filter and Coil
54
Refrigeration System Components
55
Compressor Identification
56
Refrigeration Specifications
56
Compressor Start Component Wiring
56
Refrigeration Circuit Schematics
57
Refrigeration Circuit R280 (R404A)
57
Refrigeration Circuit R280 (R290)
58
Electrical Diagram
59
Limited Warranty on Equipment
60
Limited Warranty on Parts
62
Ordering/Service Information
65
Data Label
65
Parts Warranty
65
Compressor Warranty Disclaimer
65
Service Information
66
