Taylor R280 User Manual

44
Model R280

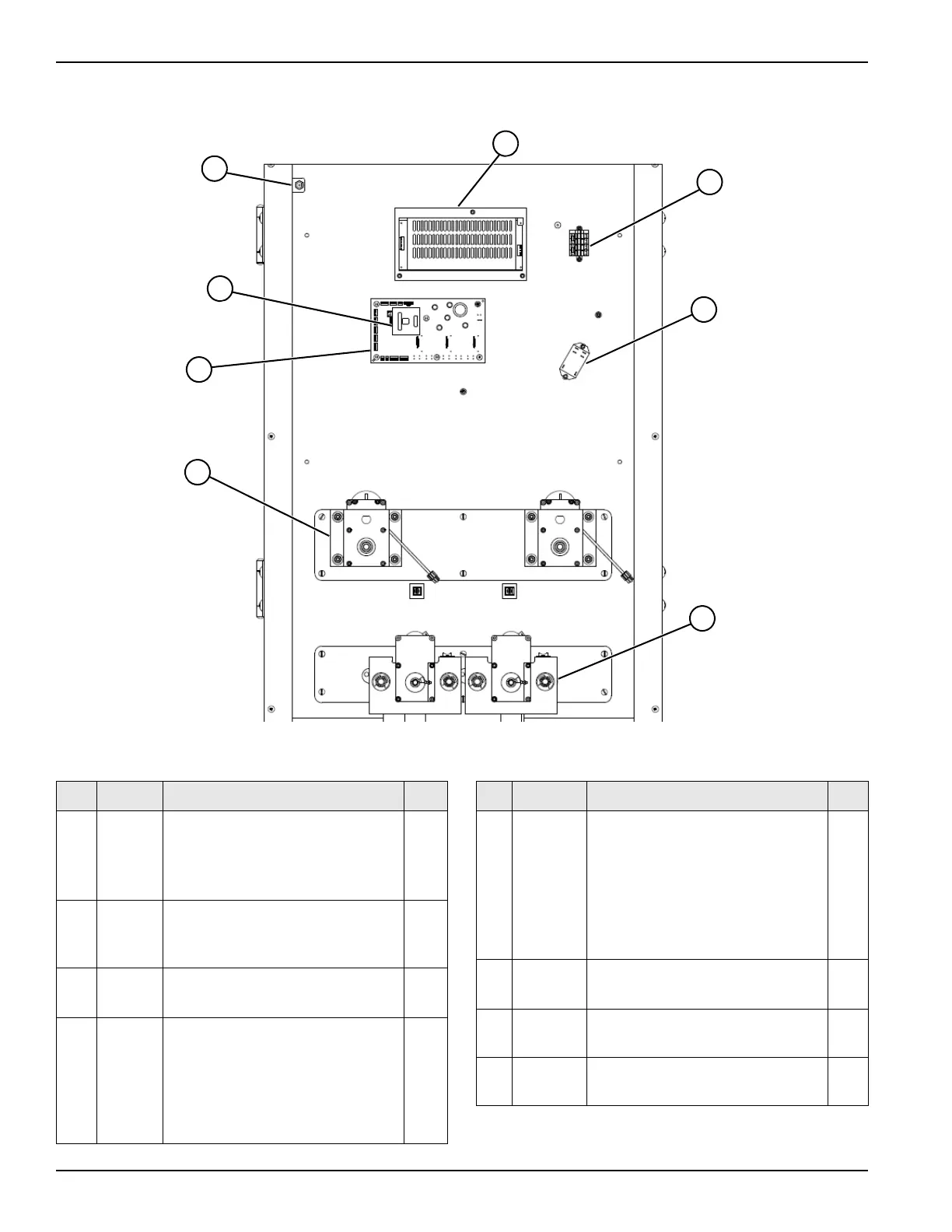

Electrical Cabinet (Rear View) Revision F
Figure-27
1
2
3
6
4
5
7
8
Item Part No. Description Qty.
1 293941
293944
293949
293990
Circuit Breaker, 4 amp
Bracket
Nut, Breaker support
Screw Pan-head Phillips 4-40x1/4”
1
1
1
1
2 380050
213262
Power Supply, Universal, Single
Output, 5.0Amp, 24VDC
Screw Socket HD Cap ZP 10-32x3/8”
1
3
3 293401
213144
Terminal Block
Screw Socket HD Cap ZP 6-32x1/2”
1
2
4 Processor PCB (Domestic) w/
Automatic Load Size Reduction
Processor PCB (European) w/
Automatic Load Size Reduction
Processor PCB No Automatic Load
Size Reduction
1
Item Part No. Description Qty.
5 296664
296665
296666
380026
202909
202977
202795
PCB A. -R280 McD Domestic
PCB A. -R280 McD European
PCB A. -R280 Gen. Market
PCB A. -R280 Japan
Stand-Off Nylon
Stand-Off
Screw Pan HD w/washer ZP 6-32x3/8
1
1
1
1
5
1
1
6 293405-05
213262
Relay-DPST-24VDC-30A@277V
Screw Socket HD Cap ZP 10-32x3/8”
1
2
7 See Drum Motor Assembly on
page 36.
2
8 See Weighing System Assembly on
page 38 and page 40.
2
