Model R280

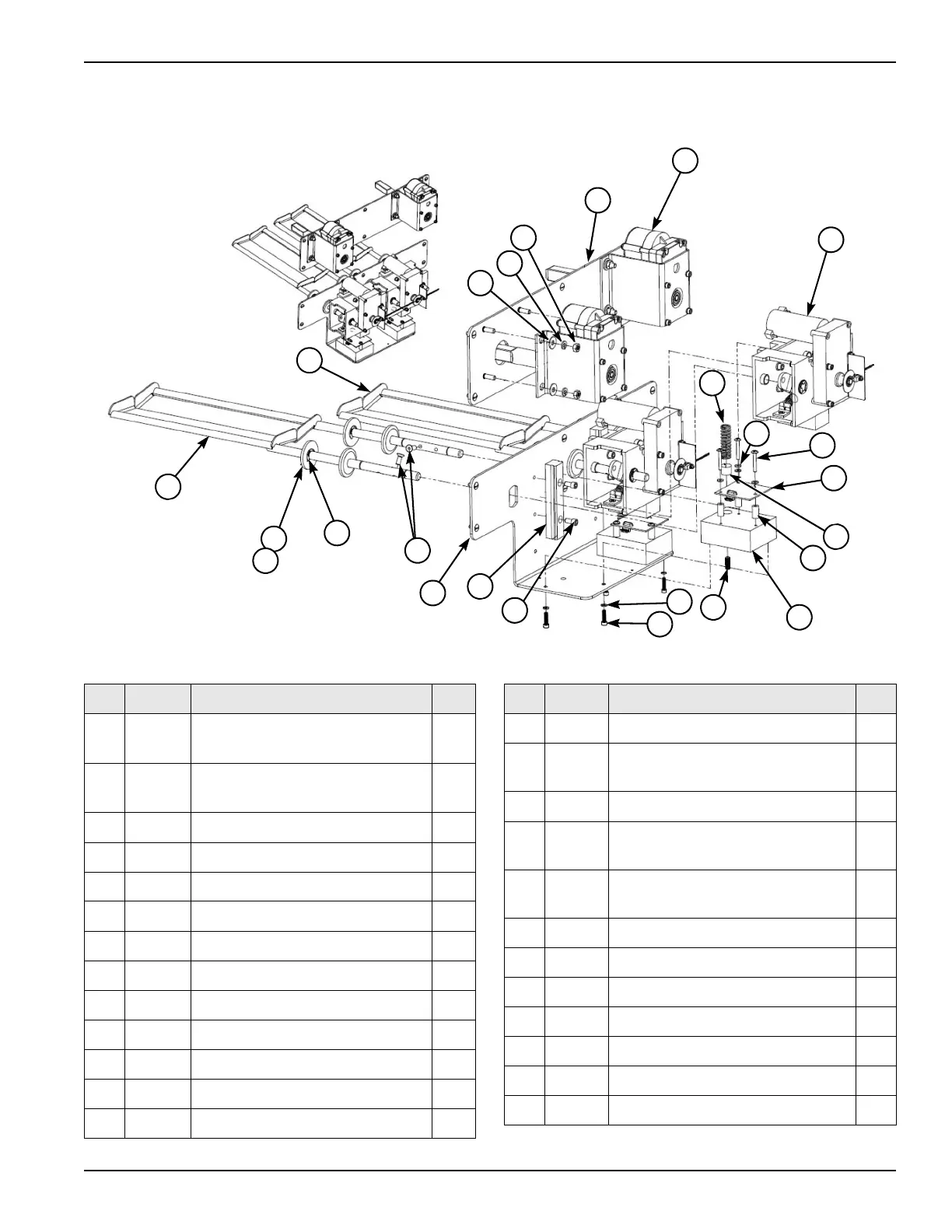

Dispensing System Assembly
(After and including LONR and 28PR)
Figure-26
1
5
6
7
4
3
20
19
21
18
17
22
2
16
15
13
14
25
23
8
9
10
11
12
24
Item Part No. Description Qty.
1 295670
213559
Panel Drum Motor Support,
280-Screw Truss HD 10-32x1/2" SST
1
6
2 295669
216559
Panel Weighin-System Support 280-F
Screw, Truss HD, 10-32x1/2" SST
1
6
3 Assembly, Weighing System 2
4 Assembly, Drum Motor w/ Mount 2
5 213141 Flat Washer, 1/4” 8
6 213142 Washer, Split Lock, 1/4” 8
7 000707 Hex Nut, 1/4-20, Zinc Plated, Grade 5 8
8 293566 Washer, Nylon, 0.173x0.375x0.054” 2
9 291308 Screw Trusshead Phillips #8-32x1-1/4 6
10 290519 Circuit Board, NCWS 2
11 292252 Standoff, Nylon Unthreaded, 0.75”L 6
12 294775 Kit, NCWS Base w/Screws 2
13 213140 Washer, Lock ,Reg Spr, ZP #10.ipt 4
Item Part No. Description Qty.
14 Screw SH Cap two included w/294775 4
15 051455 Screw Socket Head Cap Zinc Plated
1/4-20 x 1/2 In.
6
16 202068 Assembly, Linear Bearing, 180mm 2
17 294409 Assembly, Accumulator Door, LH
(includes Items 19-21)
4
18 294391 Assembly, Accumulator Door, RH
(includes Items 19-21)
2
19 203257 O-ring Buna-N 11/16”ODx1/2”IDx3/32” 4
20 213356 Ring, Retaining, E-style, ZP, 1/2” 8
21 293596 Collar, Accumulator Shaft UHMW 4
22 213549 FH Cap Screw Socket ZP 1/4-20x5/8”L 4
23 290656 Spring, Compression, NCWS 2
24 294919 Plug, NCWS Spring 2
25 294913 Screw Hex Socket ZP 1/4-20x3/4”L 2
