Model R280

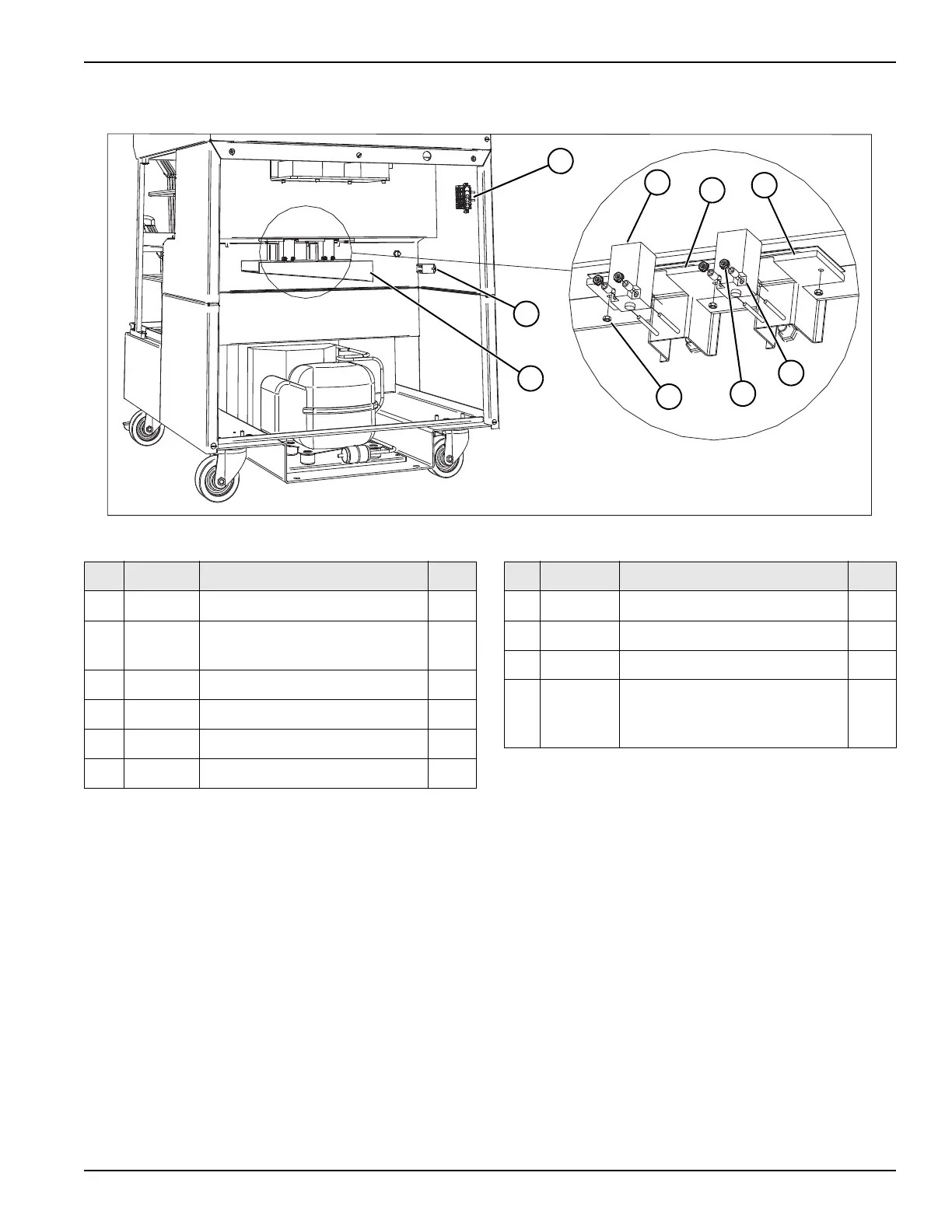

Basket Sensor Assembly
Figure-22
*Not Shown
2
3
7
9
8
5
6
4
1
Item Part No. Description Qty.
1 293404 Terminal Block (lower) 1
2 089287-12
293974
Relay-SPDT-15A-120V (Domestic)
Feedback Relay (International)
1
3 294018 Drip Pan Assembly w/ Tape 1
4 293934 Basket Sensor 2
5 293707 Gasket, Sensor Window 1
6 294593 Sensor Window Kit 1
Item Part No. Description Qty.
7 205219 Nut, Hex #8-32 SS. 3
8 202874 Nut Hex #6-32w/ Ext Lock Washer 4
9 293731 Spacer, Nylon, ¼”x#8x3/8” 4
* 293415
294261-27
Accumulator Heater Wire Domestic
Wire-Heater-Door-Accum*R280*
INTL (not pictured)
1
