6. STEERING SYSTEM
- 97 -

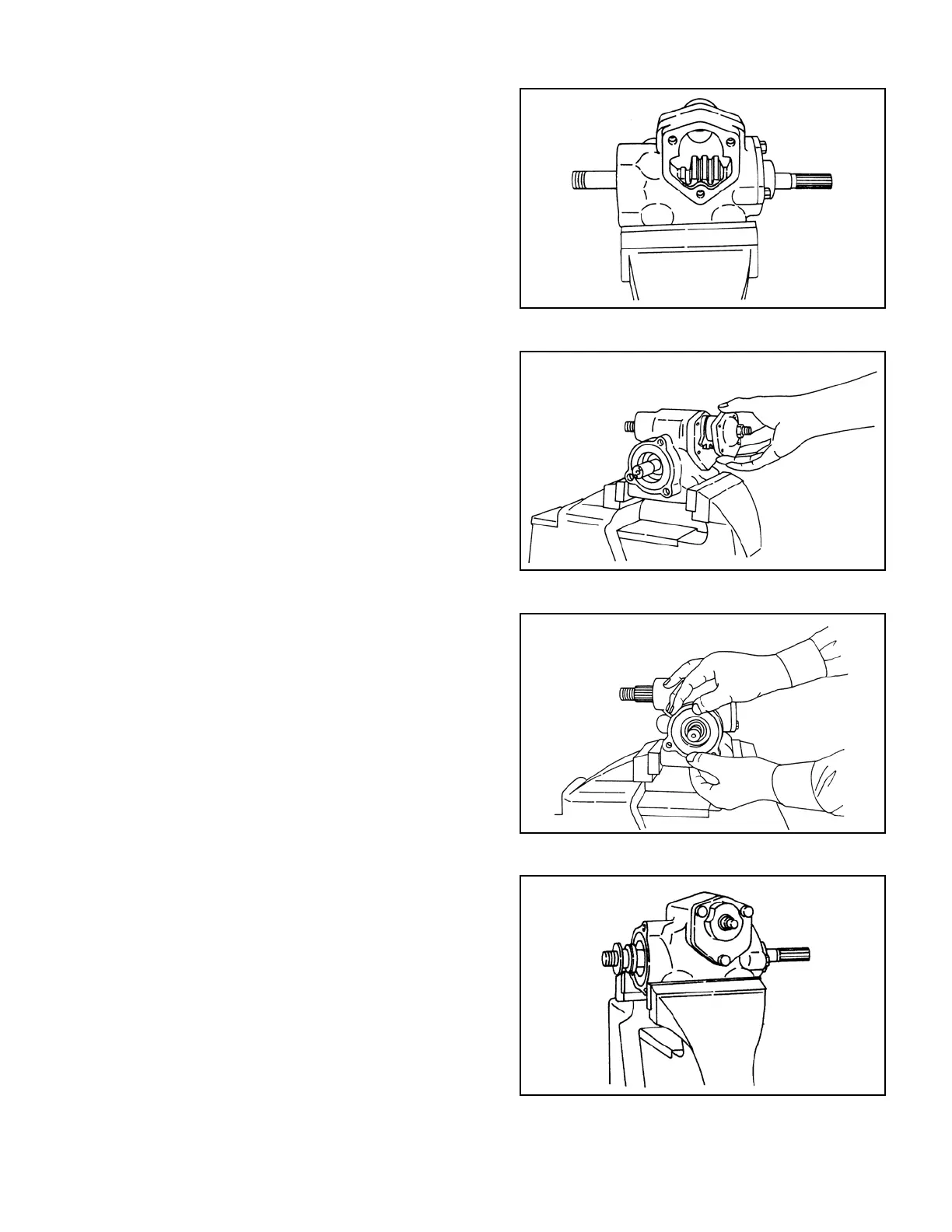

Fig. 6.39
Fig. 6.40
Fig. 6.41
Fig. 6.42
⑤
Till the center of the ball nut gear is aligned with
the center of the hole, turn the shaft.
⑥ Align the center of the sector shaft gear with
the center of the hole, then install the side cover
with a packing.
Tightening torque: 16.7 to 27.5 N-m
{1.7 to 2.8 kgf-m}
[12.3 to 20.3 lbf-ft]
⑦ Apply grease to the O-ring, then install it in the
groove.
⑧ Install the washer with an outer diameter of 31
mm [1.22 in.], needle bearing, and washer with
an outer diameter of 40 mm [1.6 in.].
Note: Be sure to apply grease to the washers and
the needle bearing before installing them.
