6. STEERING SYSTEM
- 98 -

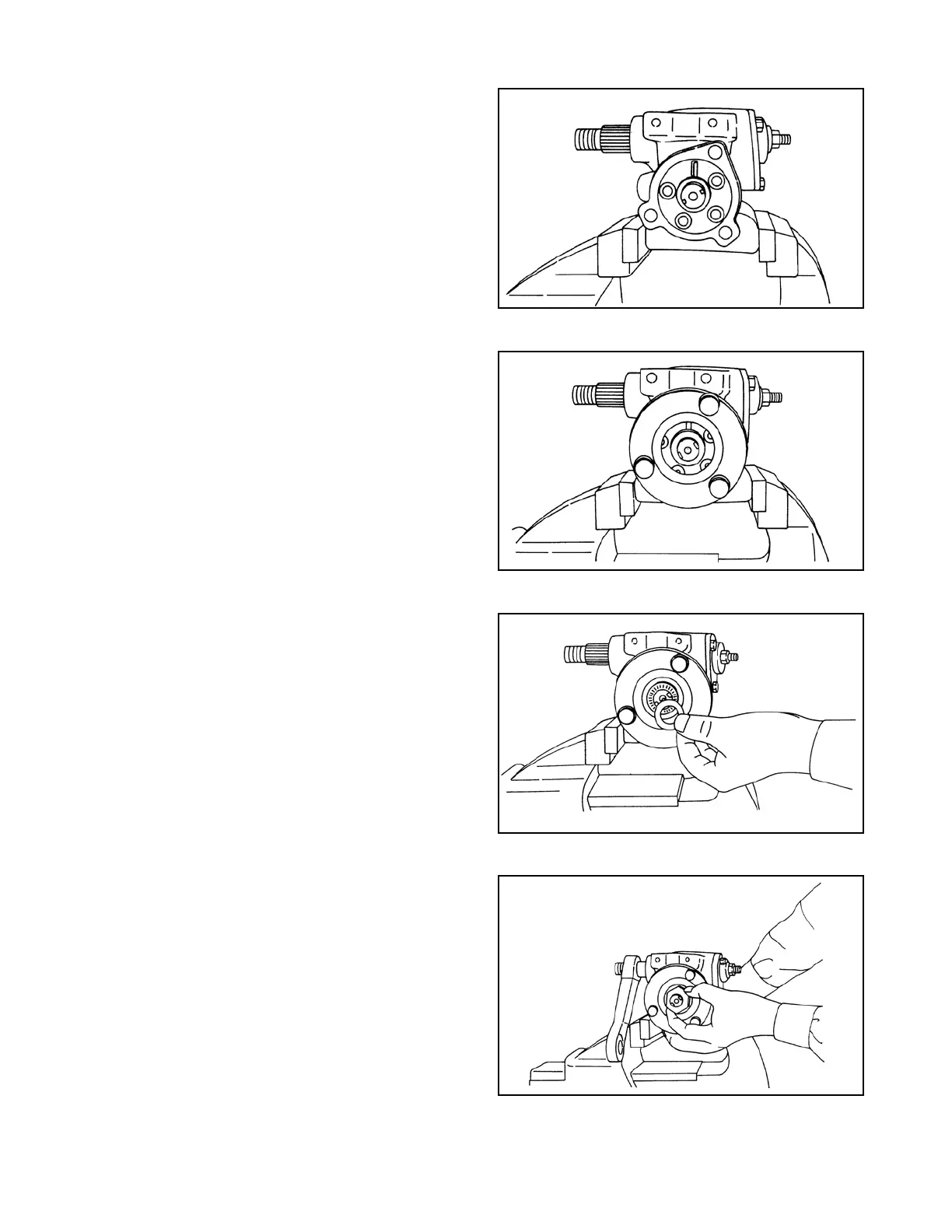

⑨
Apply grease to the inside of the slide ring, then
install it with spring.
Fig. 6.43
Fig. 6.44
Fig. 6.45
Fig. 6.46
⑩
Install the set plate jig.
Tightening torque: 44 N-m {4.5 kgf-m}
[32.5 lbf-ft]
⑪
Install the washer with an outer diameter of 40
mm [1.6 in.], needle bearing, and washer with
an outer diameter of 31 mm [1.22 in.].
Note: Apply grease to the washers and the needle
bearing before installing them.
⑫
As shown in Fig. 6.46, temporarily install
the pitman arm, and turn the worm shaft
counterclockwise. Keeping them as they are,
lightly tighten the nut by hand.
To Next Page
